WIndow channel Balances

Question

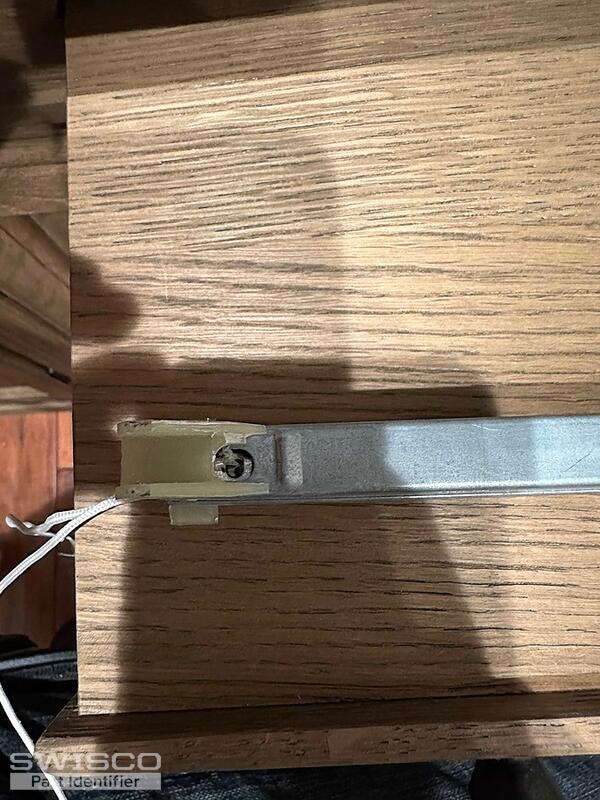

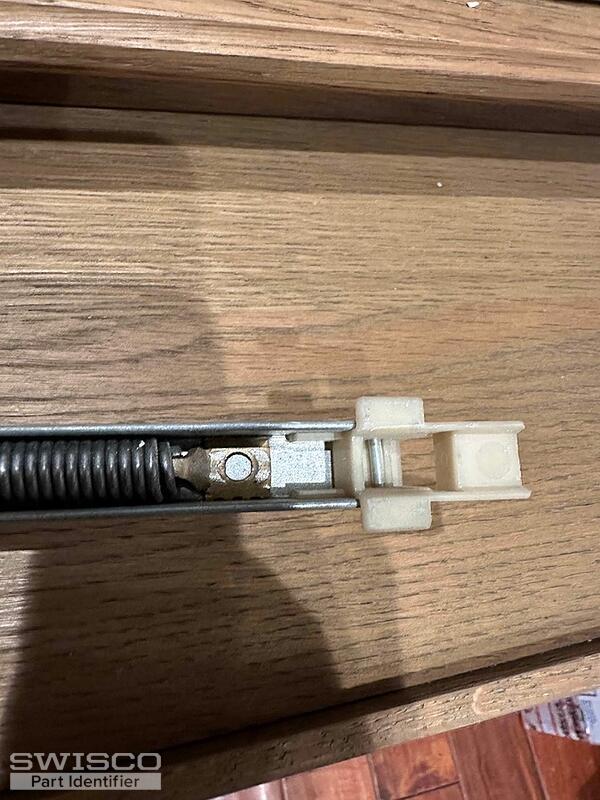

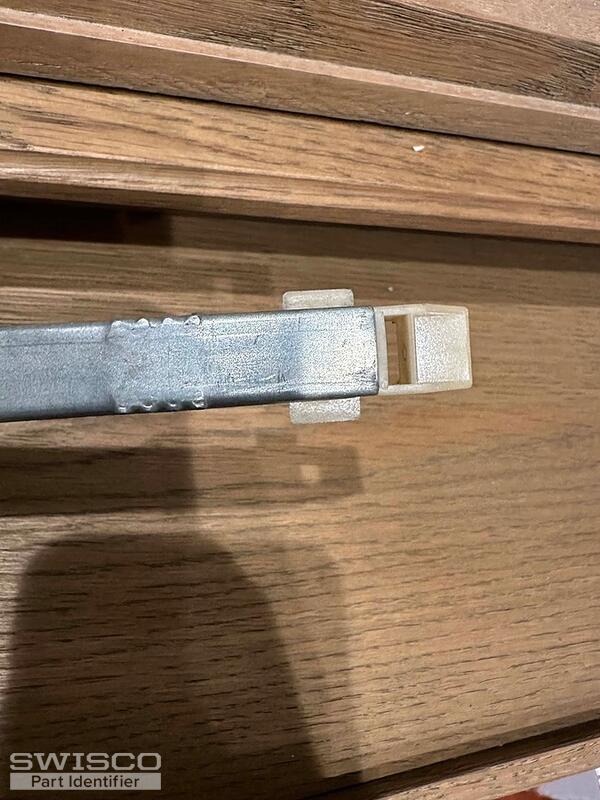

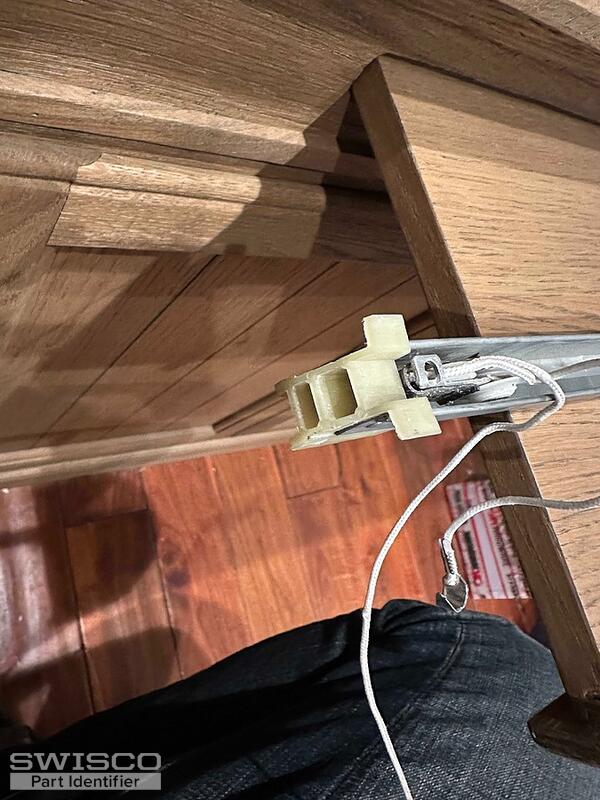

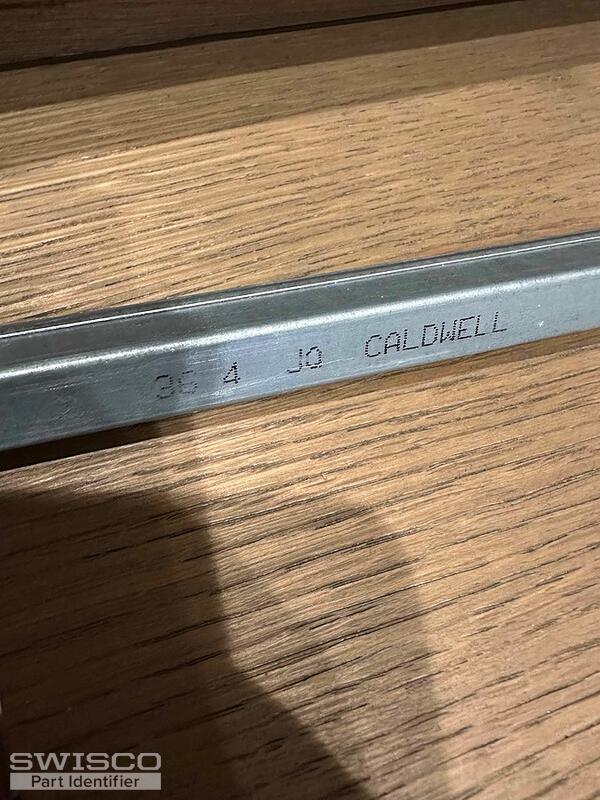

Hello. I am looking to replace these caldwells and wondering if you have this style with appropriate tips for my windows. According to caldwell its a 5/8 but I didnt see that on your options. the tips look like a 385 style of yours but not sure. Any help would be appreciated. Thank you.

Jasmine · Accepted Answer

Hey there,

Thanks for writing in! Your balances look like they could be either the S380-37 with a 1" shoe or the S385-37 with a 1-3/32" shoe. These have a 1/2" channel width and a 37" length.

To determine which series is needed for your window, look over the dimensions from the diagram below to confirm the depth of your bottom shoe. Let me know if it does not match either measurement.

You'll need to select the 3640 stamp.

Comparison of the S378, S380 and S385 balance shoes.
