What are the specifications for this part

Quick Learner from Virginia
May 3, 2024 5:49 pm
What are the specifications for this part

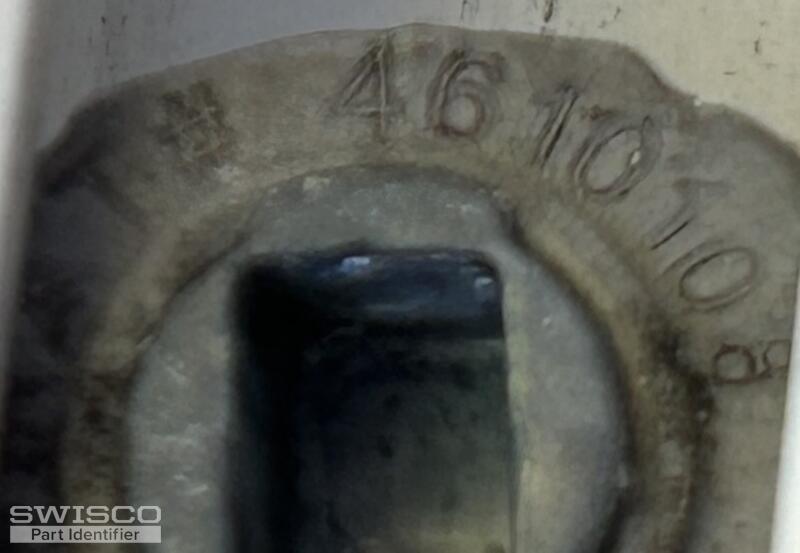

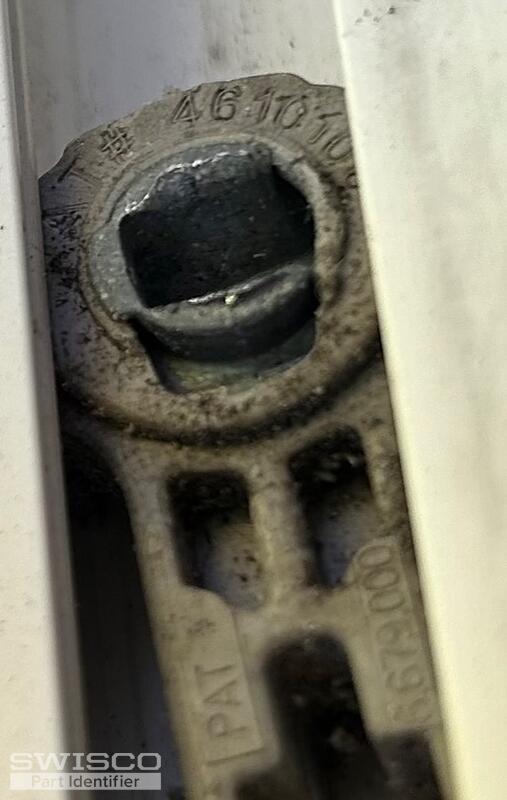

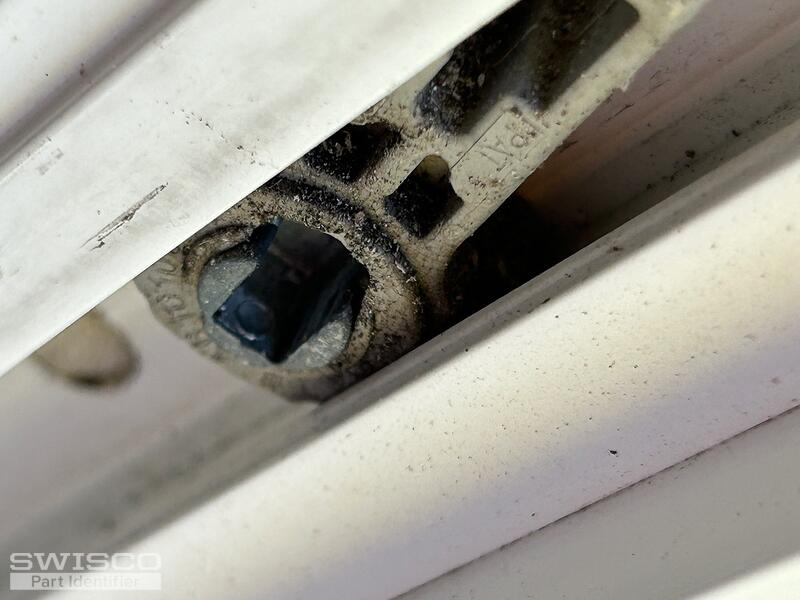

IMG_2593 IMG_2590 IMG_2591
3 user uploaded images
1 Replies
+ Add a Comment
Bob
Bob from SWISCO
May 3, 2024 6:00 pm
SWISCO
EXPERT

Hello there. This looks like it might be the 15-195 1-1/4" wide T-Lock Shoe, but you're going to want to remove one to ensure it matches the dimensions below. Let me know if anything differs.

Dimensions for 15-195
Dimensions for 15-195
Alternate view of 15-195
Alternate view of 15-195
