Which replacement parts?

Home Owner from Brooklyn
Mar 20, 2022 11:21 am
The brand name is Repco. We are looking to replace channel balances on four windows that are likely from the 1980s. The number on the metal part reads 29 C and 3.S.1, they are 30" long.

I can't figure out if we need this:
https://www.swisco.com/30-inch/pd/Series-351-Channel-Balances/S351-30

or this:
https://www.swisco.com/30-inch/pd/Series-390-Channel-Balances/S390-30

We probably also need these:
https://www.swisco.com/Take-Out-Clip/pd/Channel-Balance-Retainers/16-002

What seems right?

Thank you!

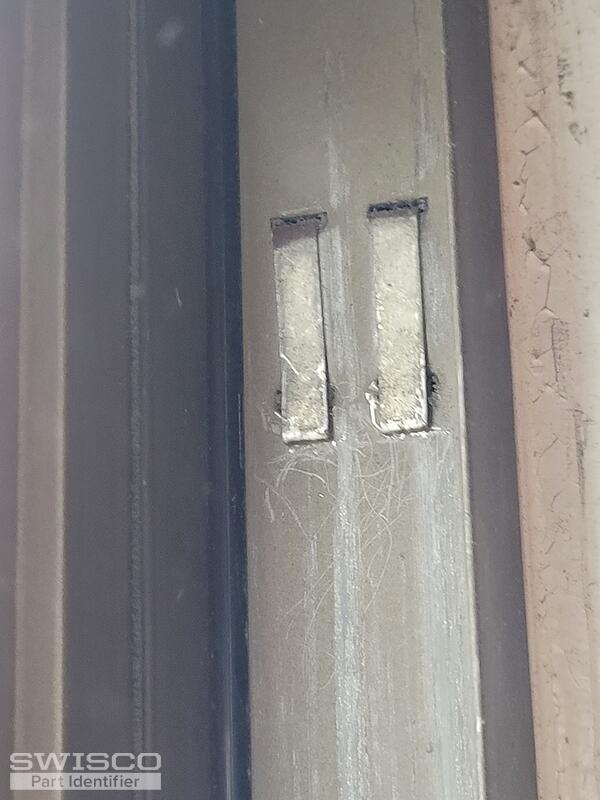

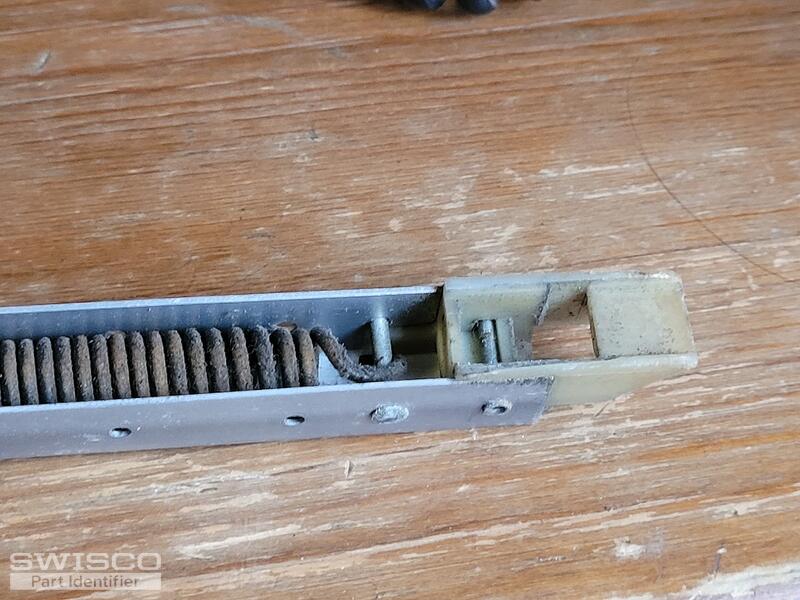

20220320_103908 20220320_103952 20220320_104006 20220320_104023 20220320_104042
5 user uploaded images
1 Replies
Bob
Bob from SWISCO
Mar 22, 2022 8:43 am
SWISCO
EXPERT

I agree you have either an S351-30 or S390-30. The difference between these two balances is the depth of the bottom nylon shoe, or 'heel-to-toe' measurement, so compare both with your old hardware to see what matches best. See the image below for reference. For a stamp option choose 2930.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
