Window Balances

Question

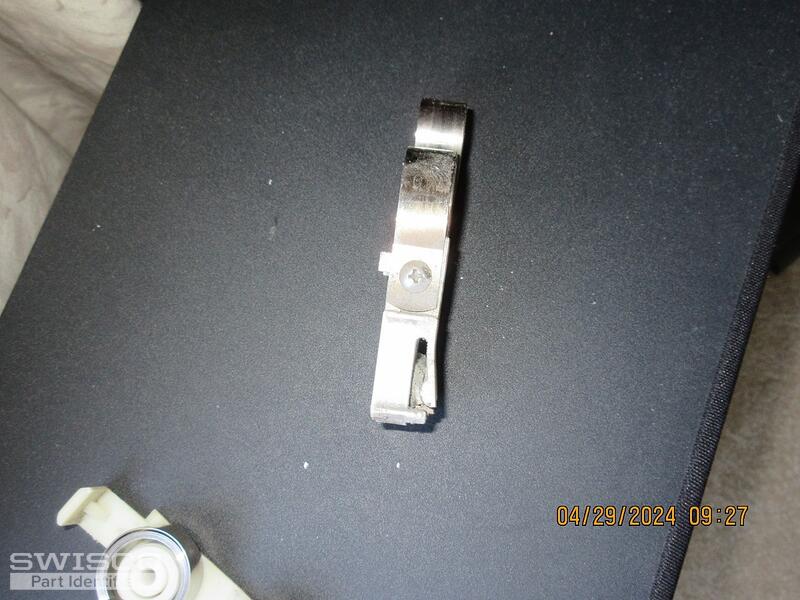

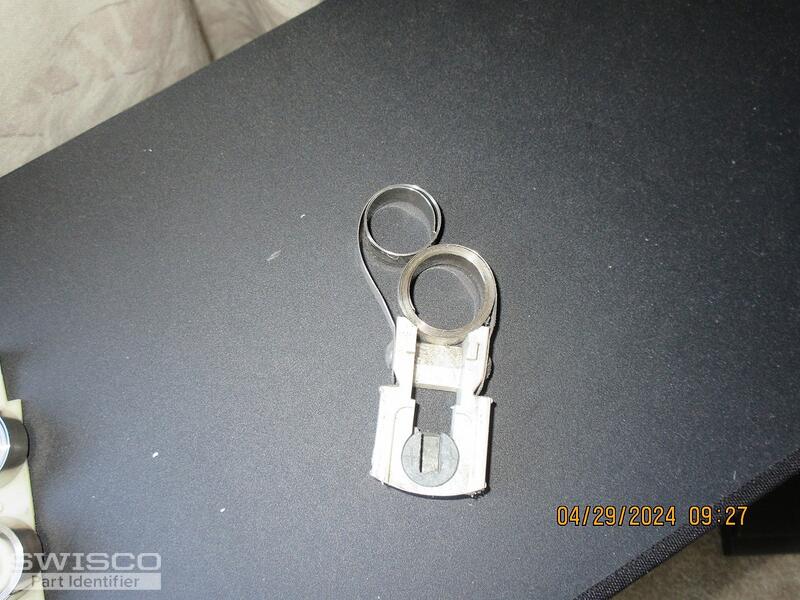

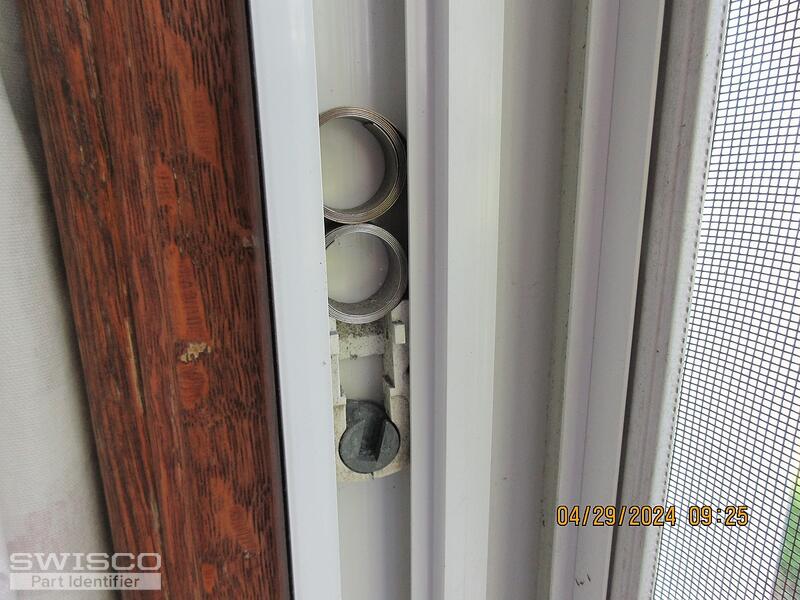

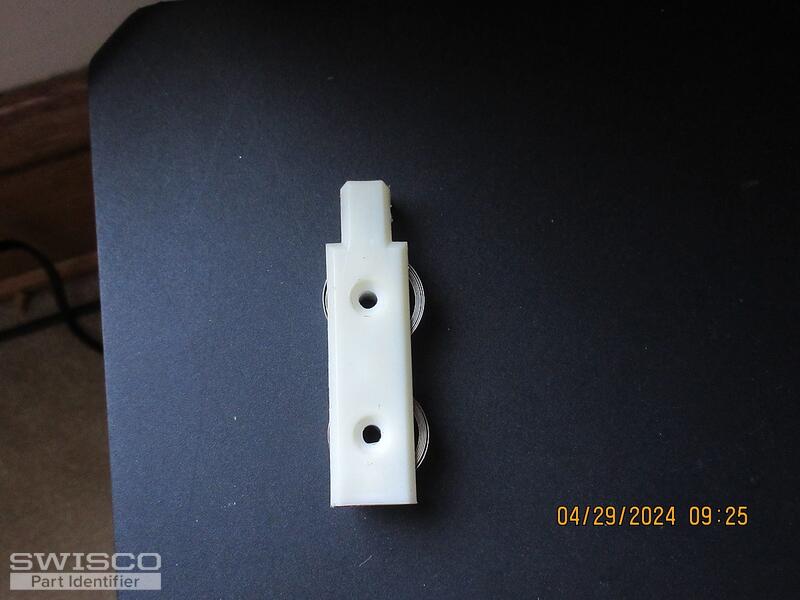

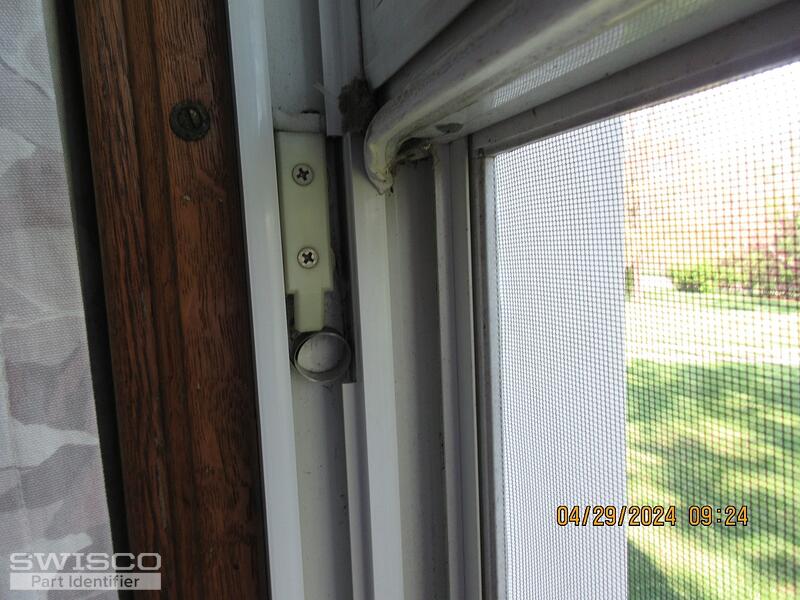

Can't find any numbers on anything so not sure which one will work for me. Will need both sides. Hopefully you can tell me the ones that will work. Sash weighs about 23lbs.                                                                                             Thank You, Don

Casey · Accepted Answer

Hello,

It looks like you may have an old-style version of the 15-180 Pivot Shoe, which uses Series 190 Coil Balances. If the sash weighs exactly 23 pounds, you can use two S190-640 coils on each side. We also offer the 15-181 double support for these coil springs. Take a look at the specifications and related items shown on our product pages to compare to your original hardware. Thanks for posting!

Alternate image for 15-180
