Window Channels

A home owner from Watsonville, CA 95076 says:

Hopping you Have this Channels

Item number has mark on the side of the channels

27" Channelshas has mark on it horizontal 26 4 & Vertital BSI and Horizontal PP

and 12" Channelshas has mark on it horizontal 11 5 & Vertital BSI and Horizontal PN

I am assuming the first 3 numbers are the size of the channels

also I am attaching picture of the channel

Please confirm with me if you guys have it to make my orders

Ruben

A home owner from Watsonville, CA 95076 says:
it didn't allow me to add my photos after clicking on add photos many times it didn't respond that link at all, so please teel me if is there other ways I can send you my pictures of the channels
Profile picture of Emily
Emily from SWISCO responded:

Hi there, Ruben.

If you're having trouble uploading to the part identifier, you can email your photos to help@swisco.com with reference number D297210. I also recommend watching the video below which will go over the details we're looking for in order to ID your balances.

A home owner from Watsonville, CA 95076 says:
Thumbnail of the uploaded file named 20230727_161720.jpg
Thumbnail of the uploaded file named 20230727_161758.jpg
Thumbnail of the uploaded file named 20230727_161807.jpg

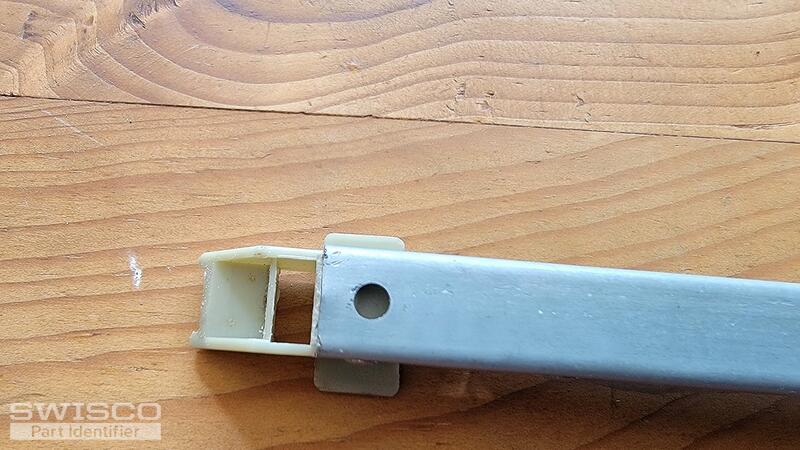

Thumbnail of the uploaded file named 20230727_161817.jpg

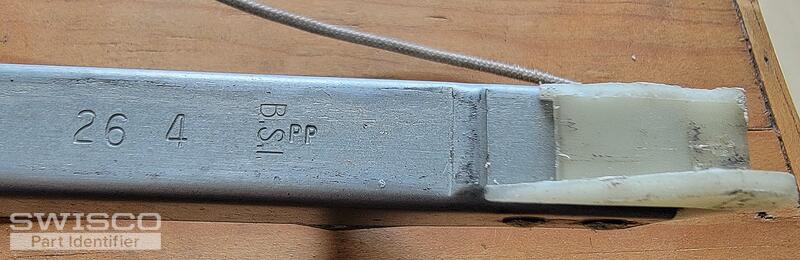

Thumbnail of the uploaded file named 20230727_161838.jpg
Profile picture of Emily
Emily from SWISCO responded:

Thank you for the photos! They're a huge help. Our Series 395 appears to be a match. You'll want to select the 2640 option for the 27" balance and the 1150 option for the 12" balance. If you have any questions just let me know!

A home owner from Watsonville, CA 95076 says:
Ok got it bit probaby you didn't got all the pictures because the ones you got are damaged and for the bigers window w/ number 26 4, because the both plastic on both ends a regular one has a little wings both sides this one I am attaching is a normal I think, notice on both ends the difference vs series 395 also this 27" channel for smaller window has a different # 26 3 plus BSI andf PP and the 12" one as you know has 11 5 plus BSI & PN which I am attaching a pictures as well here are 5 photos fallow with on an other 4 more photos

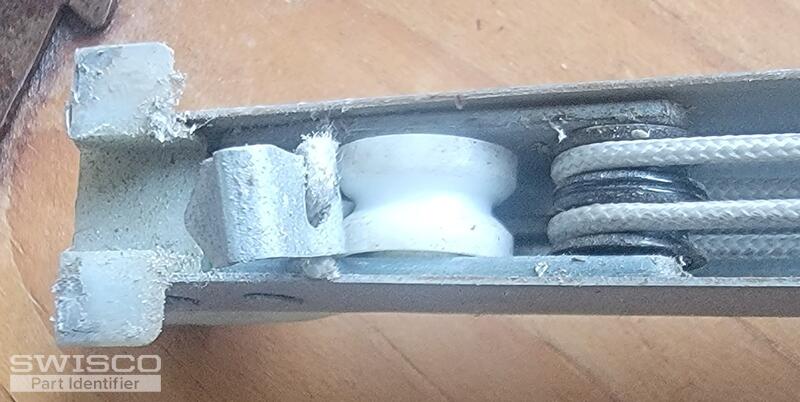

Thumbnail of the uploaded file named 20230801_112300.jpg

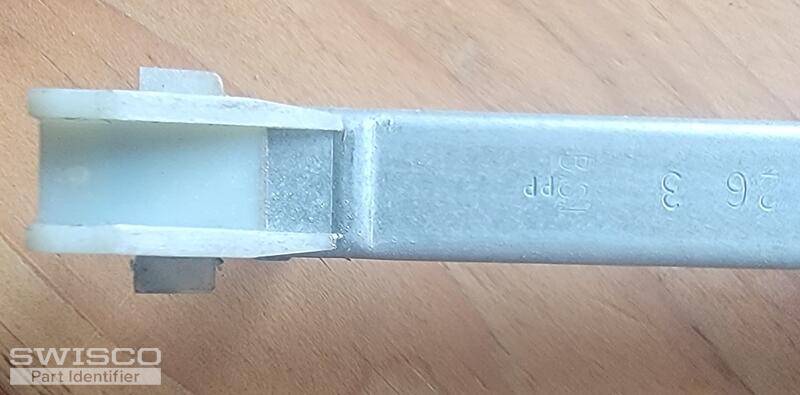

Thumbnail of the uploaded file named 20230801_112322.jpg

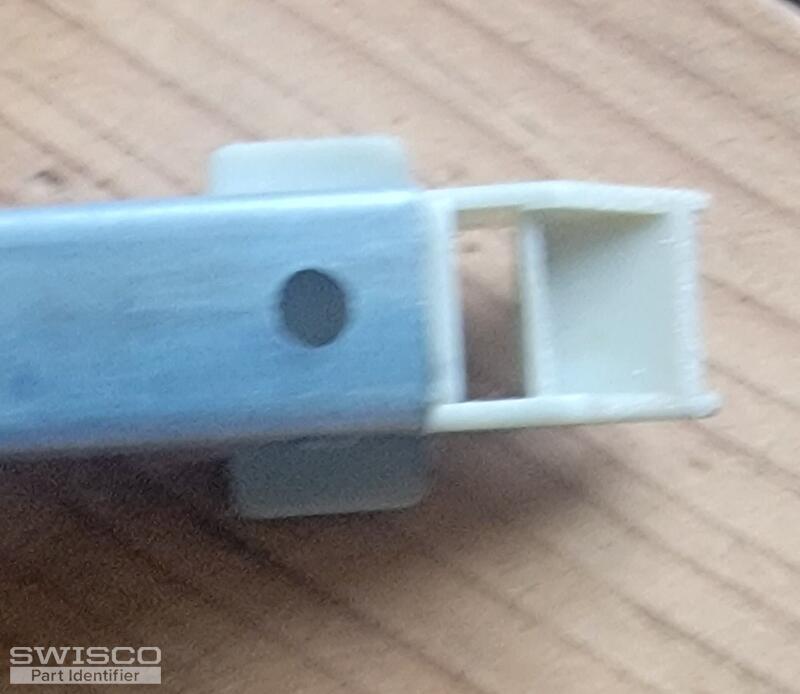

Thumbnail of the uploaded file named 20230801_112359.jpg

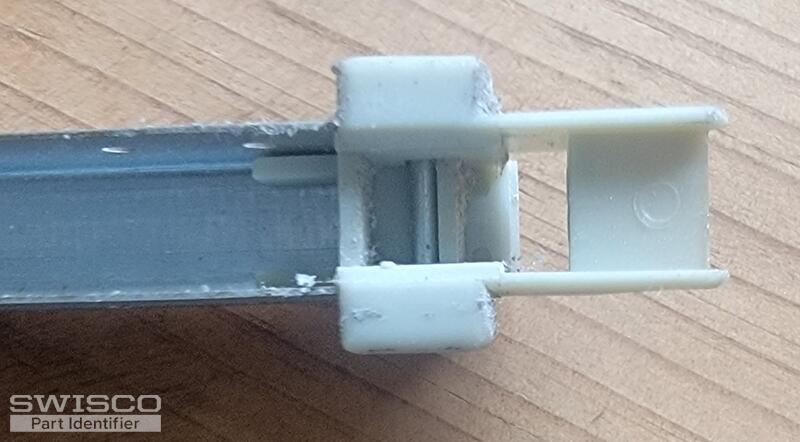

Thumbnail of the uploaded file named 20230801_112406.jpg

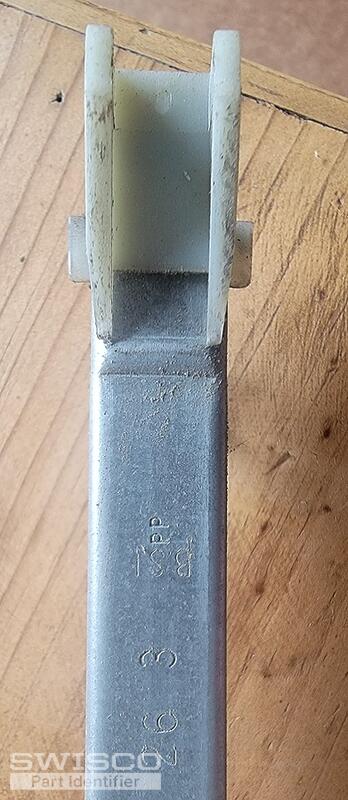

Thumbnail of the uploaded file named 20230801_112444.jpg
A home owner from Watsonville, CA 95076 says:
4 more photos and I belive Series 380 match better my guides channels don't you think ?

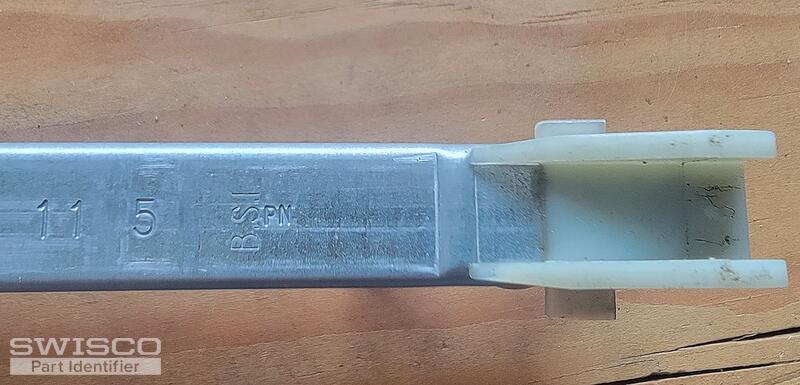

Thumbnail of the uploaded file named 20230801_113540.jpg

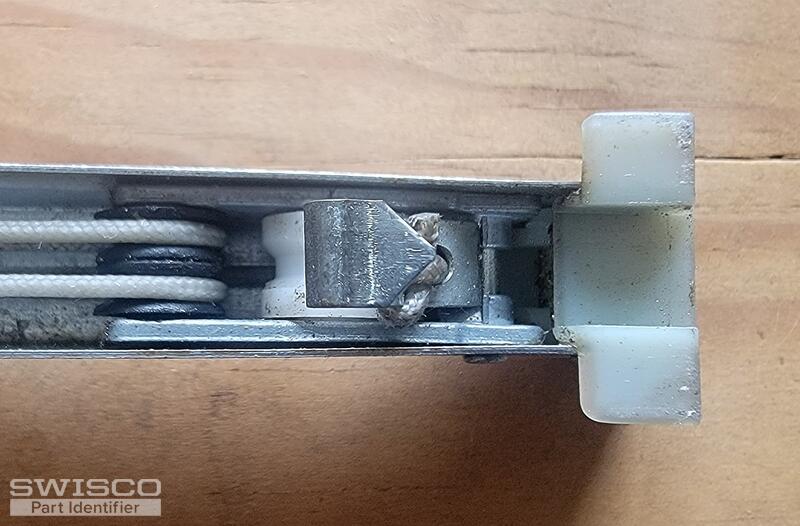

Thumbnail of the uploaded file named 20230801_113549.jpg

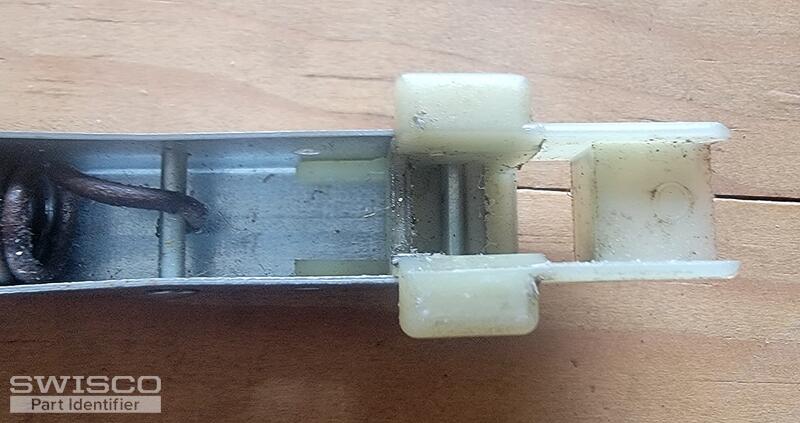

Thumbnail of the uploaded file named 20230801_113558.jpg

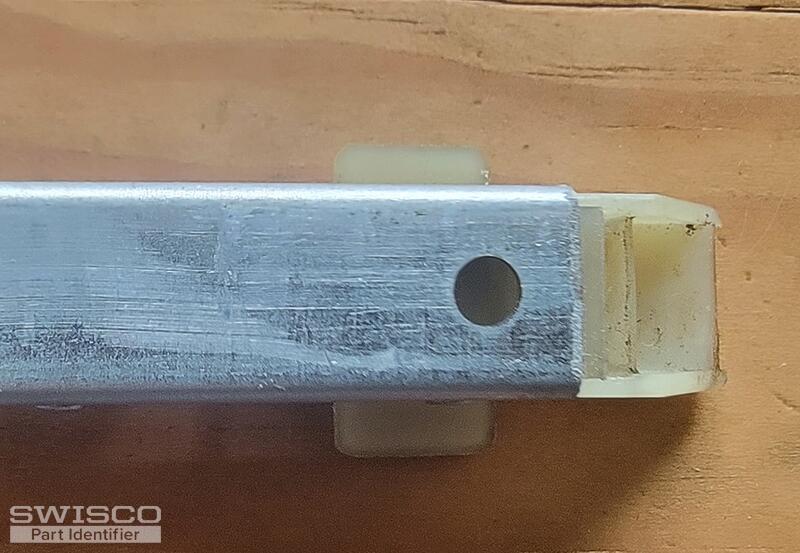

Thumbnail of the uploaded file named 20230801_113613.jpg
Profile picture of Emily
Emily from SWISCO responded:

Oh, thanks for clarifying! The fact that your bottom fitting has wings changes my recommendation. Based on these new photos of your undamaged balance, you could indeed have either the Series 380 or Series 385 channel balance. I just can't eyeball the depth of your bottom fitting from photos so you will have to measure as shown below to determine the best match.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
