Window Crank handle with gear

A quick learner from Virginia says:
This window was manufactured by Thermal Gard. It has a 9" arm to the left of the mechanism. The gear is stripped out.
Thumbnail of the uploaded file named Window crank by Thermal Gard.jpg
Profile picture of Bob
Bob from SWISCO responded:

Hello there. When that gear pops out with the handle, it means the entire window operator has broken down and needs to be replaced. Pictures of the entire operator, including the link arm(s) that push and pull the sash, will help us narrow the replacement options down for you. A bird's eye view, with the operator either removed from the window or with the window open, would be best. We will do our best to assist you from there.

A quick learner from Virginia says:
Please let me know if you need additional photos
Thumbnail of the uploaded file named IMG_20231202_164752433_MP.jpg
Thumbnail of the uploaded file named IMG_20231202_164742949.jpg

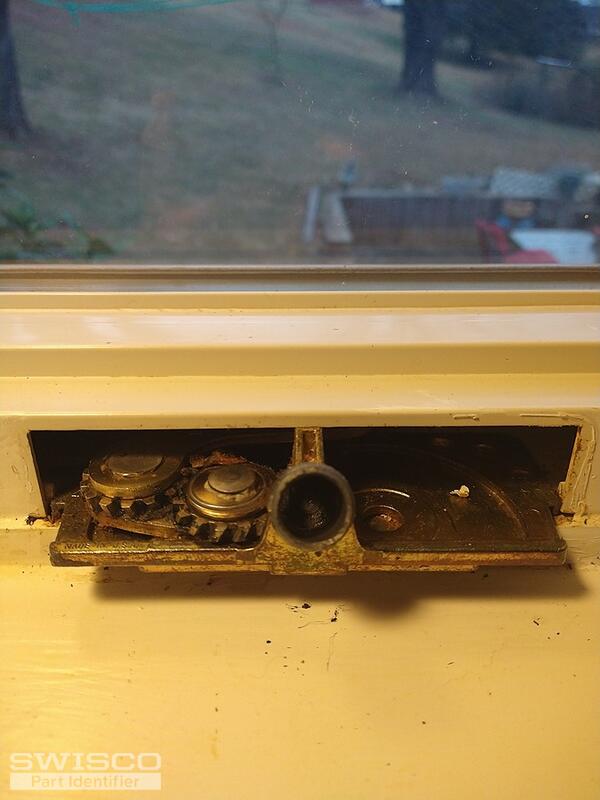

Thumbnail of the uploaded file named IMG_20231202_164718566.jpg

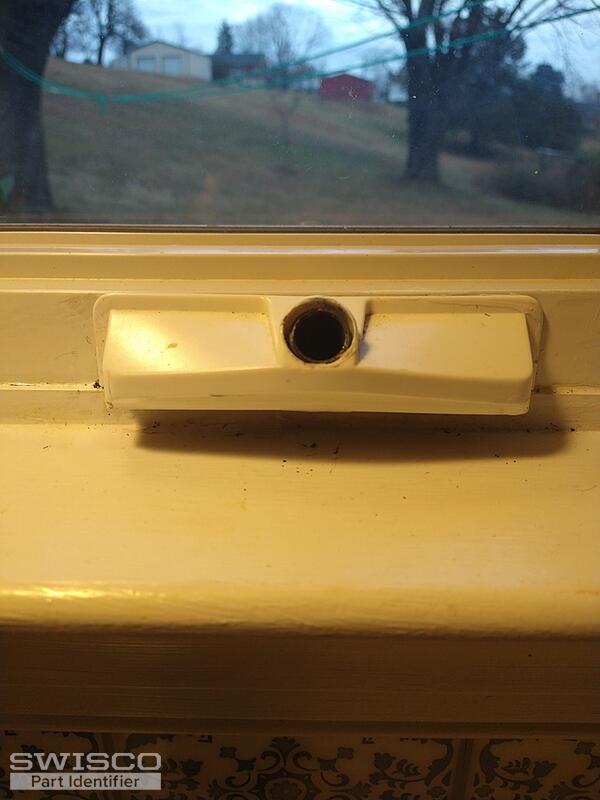

Thumbnail of the uploaded file named IMG_20231202_164705052_MP.jpg
Profile picture of Bob
Bob from SWISCO responded:

That's perfect, thank you very much. This looks like our 39-031 Dual-Arm Operator (it's opposite-handed version is the 39-032). Just make sure the dimensions of the arms listed below matches what you have. Let me know if anything differs. For new handles and covers, see the 39-114L and 39-107 sold separately.

Dimensions for 39-031
Dimensions for 39-031

Watch How To Repair A Casement Window Crank Operator
Watch How To Repair A Casement Window Crank Operator
VIDEO
WATCH >
Connecting a casement window operator to stud bracket
Connecting a casement window operator to stud bracket
VIDEO
WATCH >
How to Orient a Dual-Arm Operator
How to Orient a Dual-Arm Operator
VIDEO
WATCH >
Anatomy of a casement window
Anatomy of a casement window
VIDEO
WATCH >
SWISCO Window Operator Crank Handles
SWISCO Window Operator Crank Handles
VIDEO
WATCH >
