Window Part

Contractor from Plainfield, IN
Apr 18, 2024 9:05 am
Hello!

I need help identifying the window part in the pictures attached. Any help would be greatly appreciated.


Thank you!

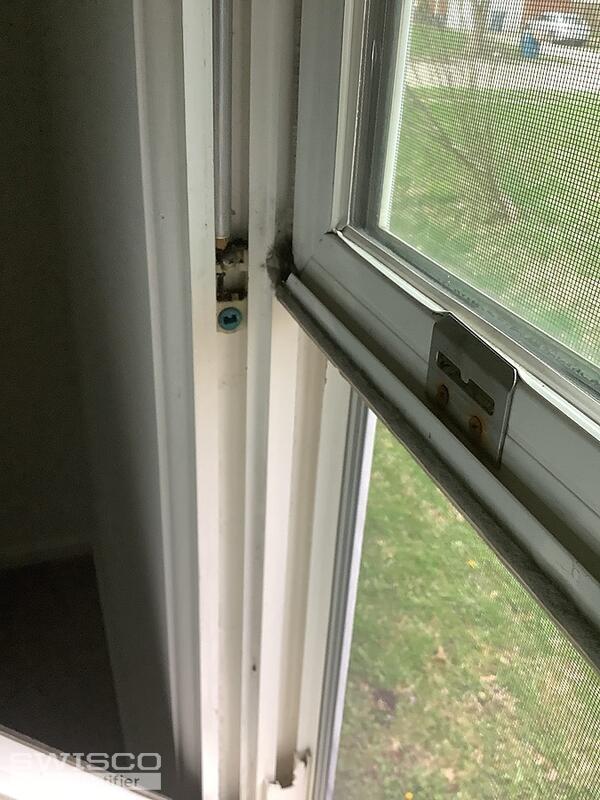

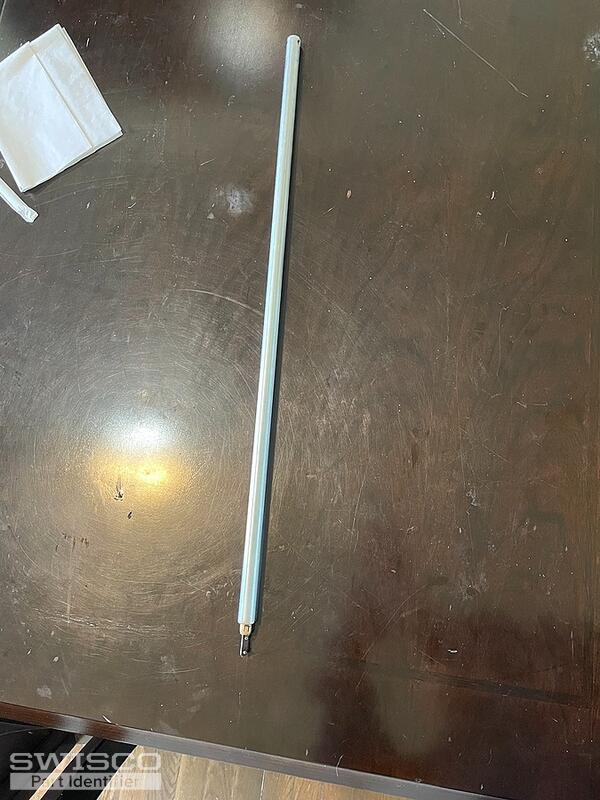

IMG_7509 IMG_7506 IMG_7505 IMG_7503 52cf3073-94a6-428d-8a74-2092bcbf1214_cdv_photo_001
5 user uploaded images
1 Replies
Casey
Casey from SWISCO
Apr 22, 2024 8:40 am
SWISCO
EXPERT

Hello,

It's tough to be sure while it is still installed but your pivot shoe resembles the 15-015. The determining factor would be how the width and thickness below compare to yours.

Dimensions for 15-015
Dimensions for 15-015

If it's a match, this pivot shoe is commonly used with the 5/8" diameter S600 spiral balance. You'll need to confirm that your housing tube measures exactly 23" not including the plastic tip or spiral. There is a chart under the product description that will help you choose the correct color option based on the weight of the window sash that the balances support. Thanks for posting!

How to measure the tube width of a spiral balance.
How to measure the tube width of a spiral balance.

How to measure the tube length of the S600 spiral balance.
How to measure the tube length of the S600 spiral balance.
