Window Parts

Handy Person from Southwick Massachusetts
Dec 5, 2023 3:05 pm
Selling house and need to "tune-up" windows. Attached are pics of the lock and keeper, as well as tilt latch. I am looking for 12 left and 12 right for each to replace.

I am also looking for fin pile weather stripping. If available, how is it packaged?

House was built in 1995. Windows are new construction, single hung windows.

Any assistance you can provide is greatly appreciated

IMG_2102 IMG_2101 IMG_2100
3 user uploaded images
3 Replies
Lauren from SWISCO
Dec 6, 2023 9:23 am

Hi Dan, thank you for posting,

To further review we will need written out dimensions of the distance between the installation holes from center to center for the tilt latch and lock. From there we can compare to determine the best replacement option.

For the pile weather seal, a piece of the original will need to be removed and measured. We will need written out dimensions of the width of the base and height of the pile. Thank you!

Handy Person from Southwick Massachusetts
Dec 6, 2023 12:47 pm
Fair enough.
For the tilt latches I have 2 1/8" from center of hole to center of hole.
For the lock I have 2 1/4" from center of hole to center of hole.

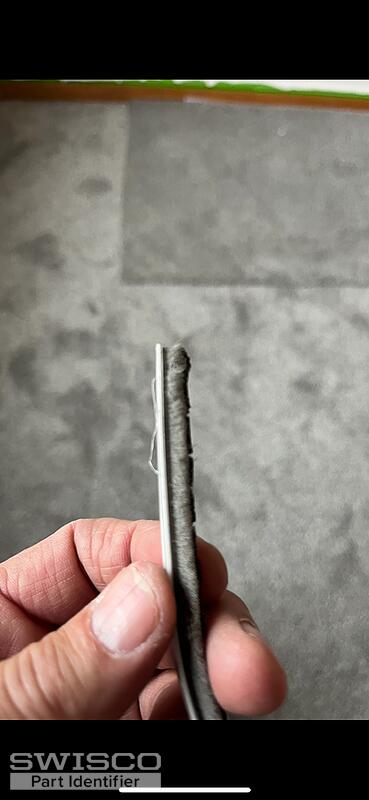

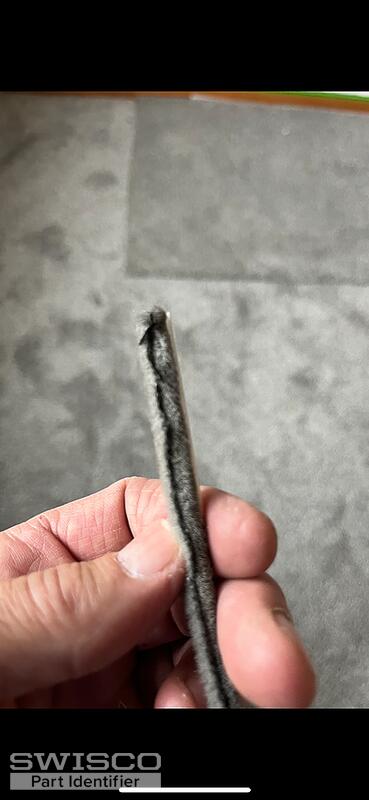

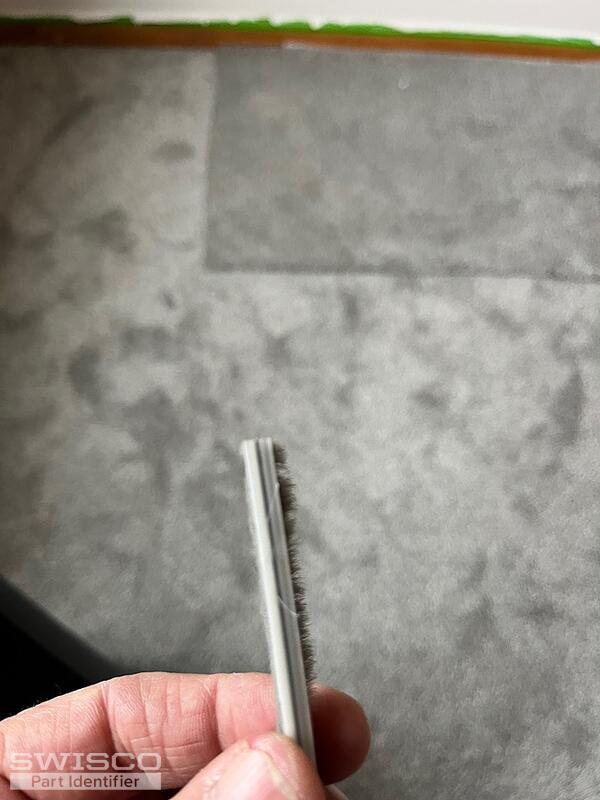

The backing is 3/16" and fin pile is 1/4".
Thank you.
IMG_2126 IMG_2125 IMG_2124 IMG_2122
4 user uploaded images
Lauren from SWISCO
Dec 7, 2023 11:04 am

Thank you,

For the window lock, please review the 90-180 along with the 58-127 for a new pile weather seal.

For the tilt latch, at first sight, your originals remind me of the 26-195 and 26-196, but they have a 2-3/16" spacing. For a 2-1/8" we carry the 26-228 and 26-229 as well as the 26-120 and 26-121.

Take a look at all options and compare all dimensions listed to see which one matches up the best to your original. Let me know what you think!
