Window balance

Handy Person from Florida, USA
Oct 1, 2022 2:58 pm

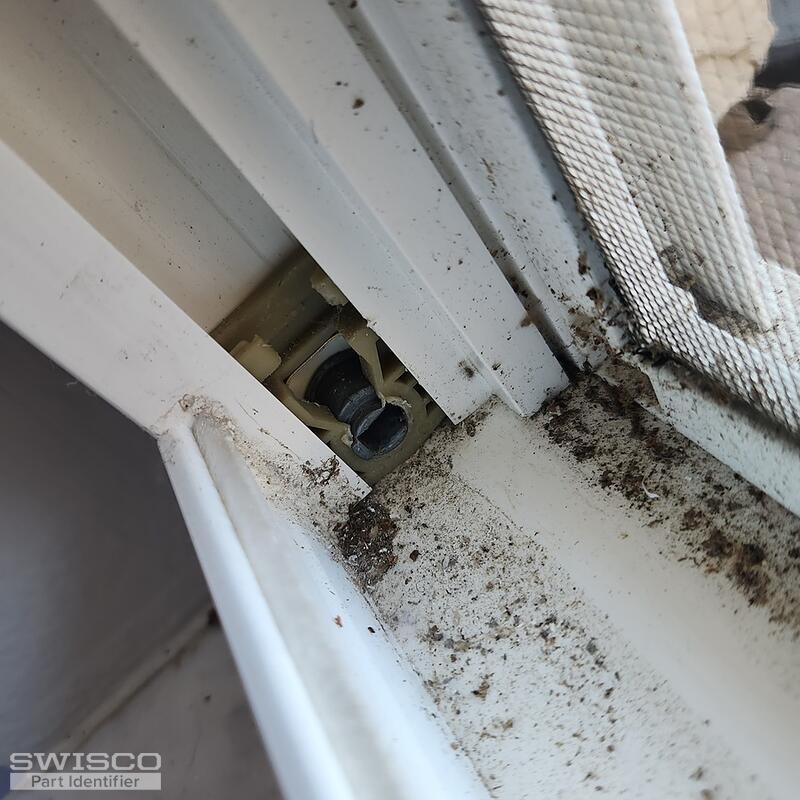

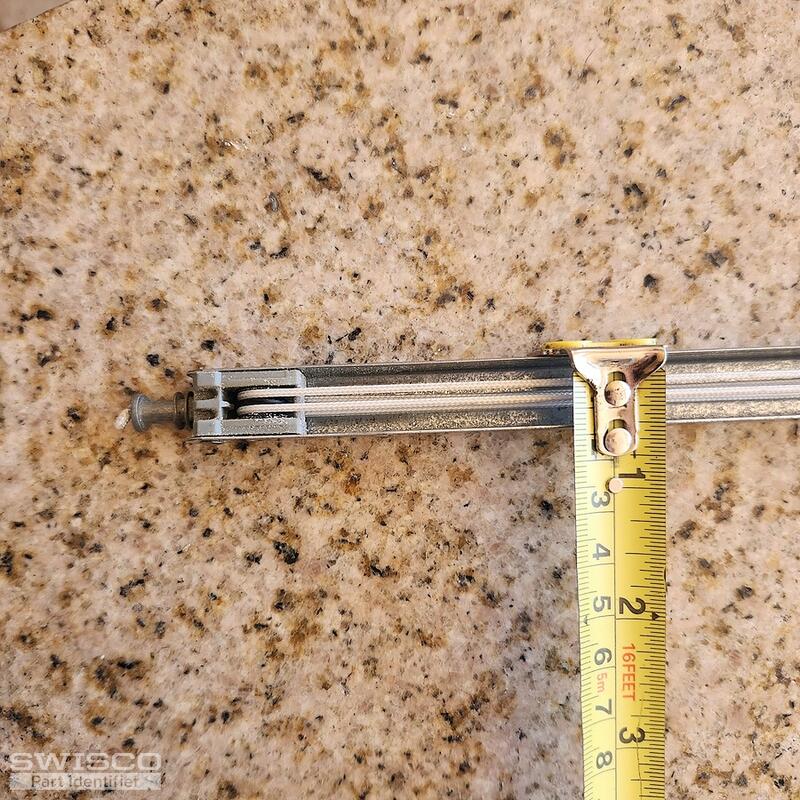

I need two window balance rods for pivot windows. They are 20 inches in length and the pivot shoe/wedge looks to be 1 1/4" in the channel.
16646503663341655634496123370971 16646504502339120858464586546155 166465047604769289903043476267 16646505104865106439323779616157 1664650540914295628810564623921
5 user uploaded images
3 Replies
Emily
Emily from SWISCO
Oct 5, 2022 9:37 am
SWISCO
EXPERT

Hi there!

This balance resembles our Series 770 at first glance but yours uses the 15-044 attachment which means this will need to be a custom order. In order for me to get this moving for you, can you tell me the stamp that's on the metal channel? I can draft a price quote once I have that.

Handy Person from Florida, USA
Oct 5, 2022 9:51 am
The stamp says 20d
Emily
Emily from SWISCO
Oct 5, 2022 10:28 am
SWISCO
EXPERT

Thanks for confirming that for me! I have all the details we need so I'm going to email you a purchase link and price quote for (2) S770-20 balances with the 15-044 attached and 20D stamp. If you needed the pivot shoe, see our 15-216. This is sold separately so don't forget to add it to your cart!
