Window balance

Quick Learner from Asheville North Carolina
Sep 26, 2023 9:57 am

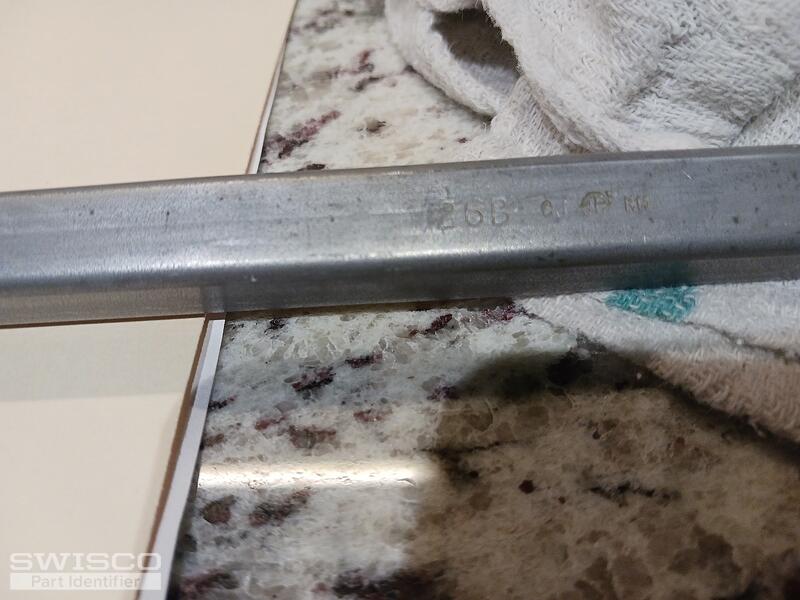

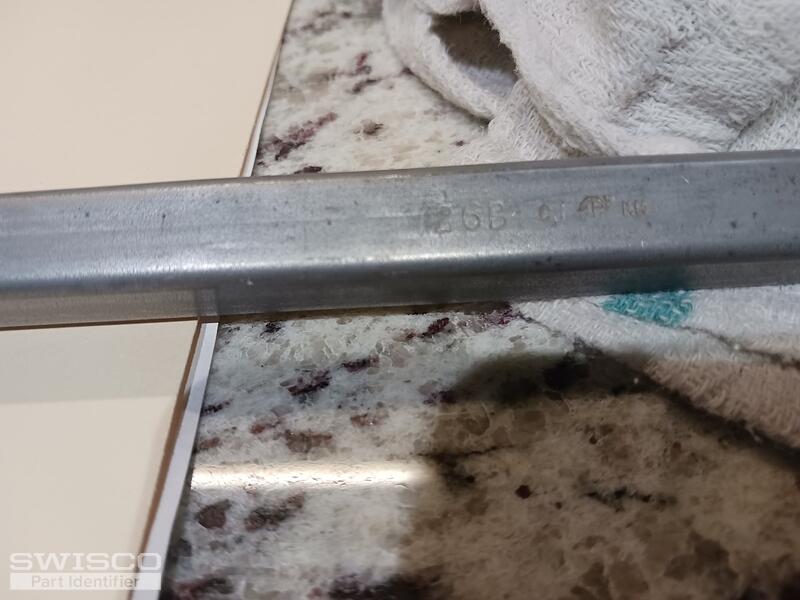

I it's a block and tackle 26bc little circle with a plus k n pictures are attached it's about 27 in Long it has a little hook connector on the top and a regular circular connector on the bottom
20230926_094020 20230926_094030 20230926_094036 20230926_094054 20230926_094053
5 user uploaded images
3 Replies
Casey
Casey from SWISCO
Sep 27, 2023 2:48 pm
SWISCO
EXPERT

Hello,

Your balance resembles the S795-26 (26B) channel balance except that it uses the 15-198 hook at the end of the pulley cord and a T-lock shoe similar to the 15-229. If so, we can supply the configuration that you need but it will need to be a custom order. I would recommend confirming the length of your metal channel, not including the T-lock shoe since a 26B stamp would normally indicate that the channel would measure 26" long for this type of assembly. We'll also need to know the number of replacements that you need, with the minimum being two. Thank you!

How to measure the length of the Series 795 channel balance.
How to measure the length of the Series 795 channel balance.

Detail of 15-198
Detail of 15-198

Profile view of 15-198
Profile view of 15-198

Dimensions for 15-229
Dimensions for 15-229

Dimensions for 15-229
Dimensions for 15-229

Quick Learner from Asheville North Carolina
Sep 28, 2023 4:32 pm
The length of the channel is 26". The other measurements look good. I need two. What would be the cost?
Casey
Casey from SWISCO
Sep 29, 2023 8:31 am
SWISCO
EXPERT

Thanks for getting back to us. We just sent over an order link and price quote for you to review. Take a look and let us know if you need anything else. Thank you!
