Window balance

Handy Person from Clermont,fl
Feb 15, 2024 9:45 pm
I never seen this before. Seems like it's magnet

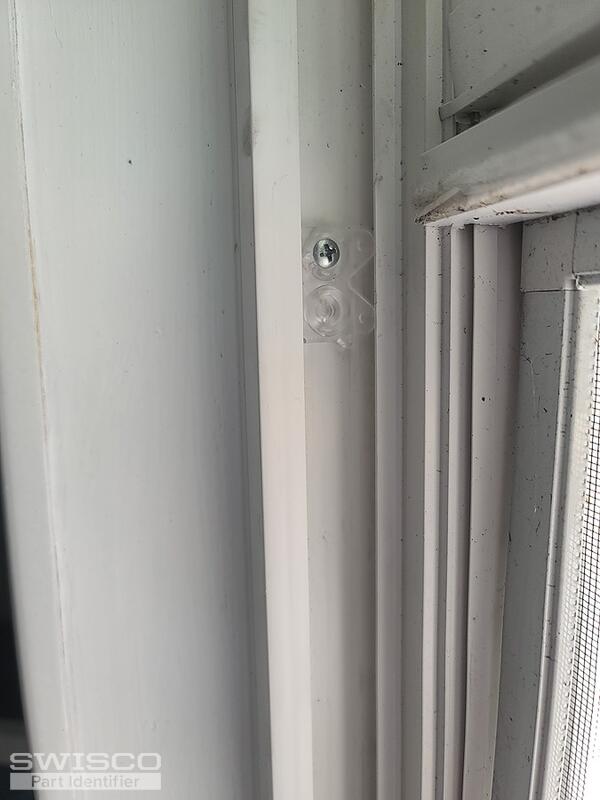

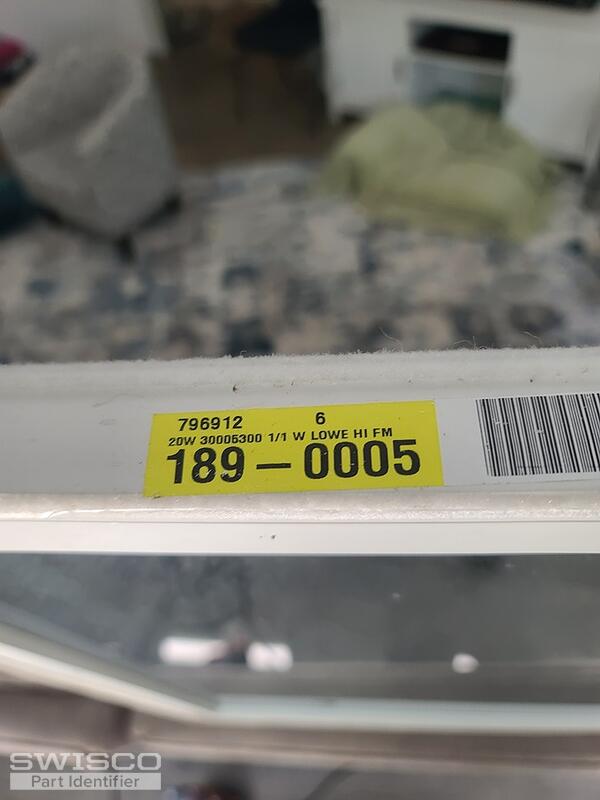

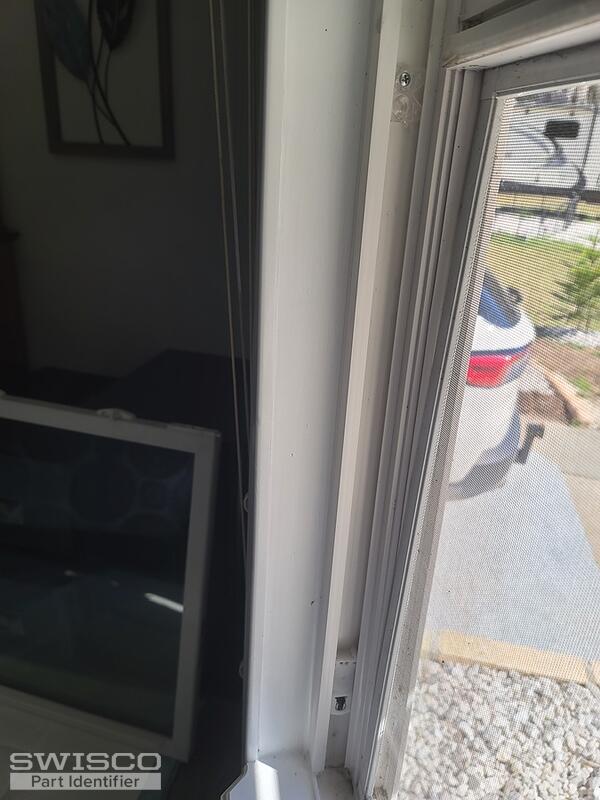

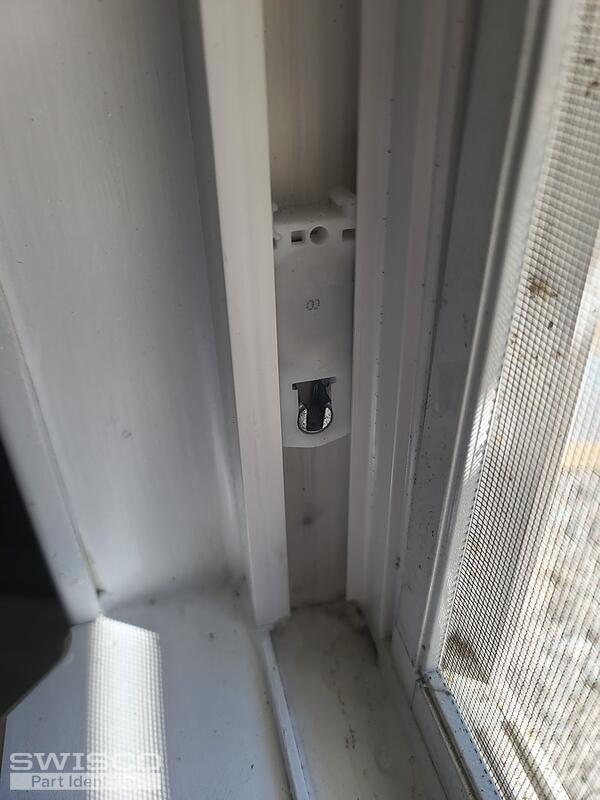

20240206_132605 20240206_132610 20240206_131343 20240206_132614
4 user uploaded images
1 Replies
+ Add a Comment
Bob
Bob from SWISCO
Feb 16, 2024 12:22 am
SWISCO
EXPERT

Thanks for posting. This looks like either the S161-08 8 pound Coil balance system, which is 9/16" thick, or the S210-08 8 pound 7/8" thick system. You'll need to remove the old assembly and measure the thickness of the coil balance housing to see which matches best. Let me know if you have further questions.
