Window balance

Landlord from Cleveland, OH
Jun 12, 2024 8:40 am
Hi I I'm looking to buy a bulk amount of window balances. Need help finding the correct part.
Metal portion is 34" long

33 5 GV CMC 2
IMG_4297
1 user uploaded images
7 Replies
Casey
Casey from SWISCO
Jun 13, 2024 3:39 pm
SWISCO
EXPERT

Hello,

We'd be happy to look into this for you but we'll need a bit more information. To get started, we'll need to see the fittings attached to both ends of the metal channel, as well as the clip at the end of the pulley. That will help us narrow down your options. Thank you!

Landlord from Cleveland, OH
Jun 14, 2024 2:25 pm
Hope this helps.

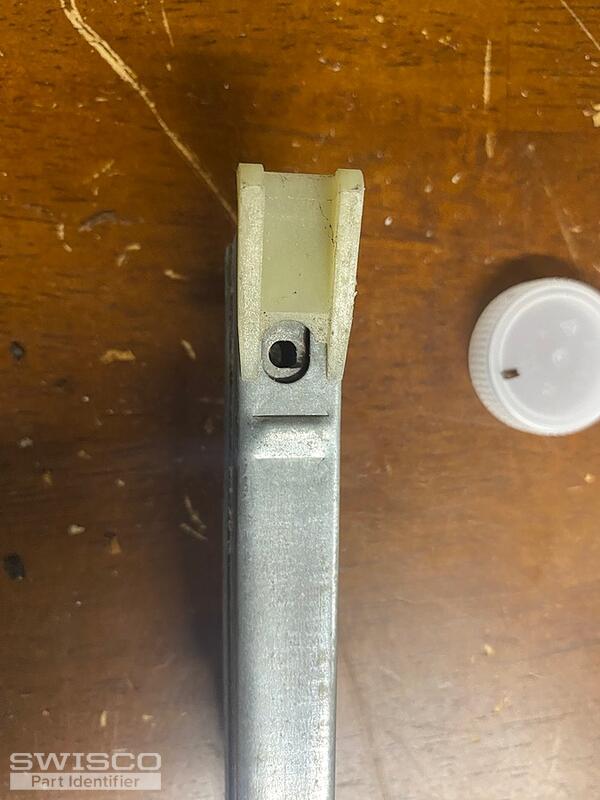

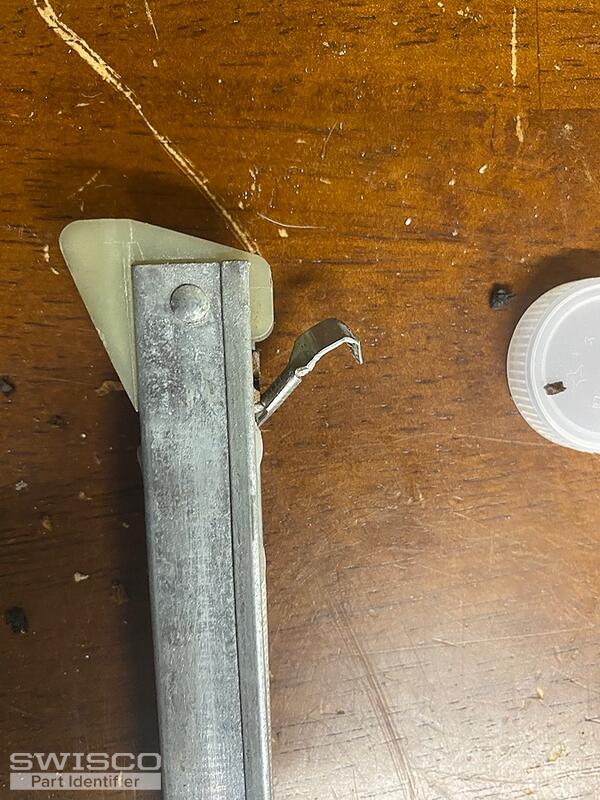

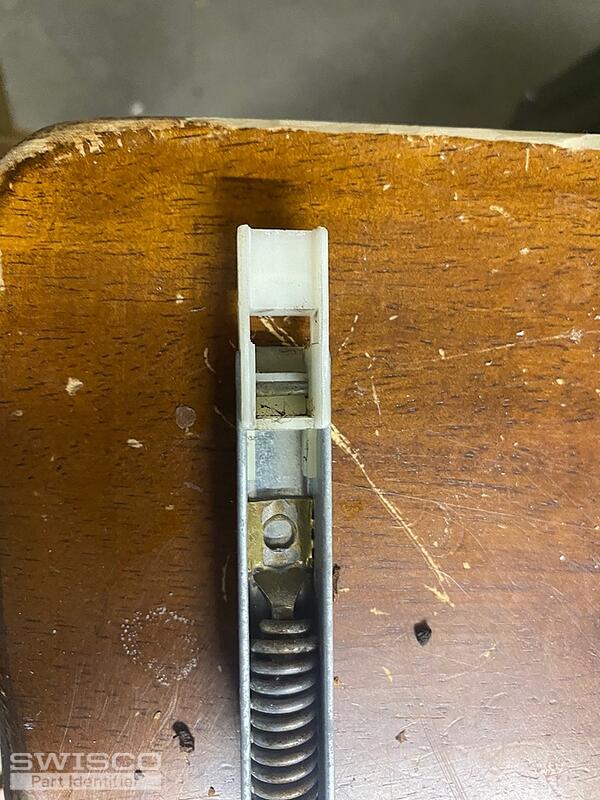

IMG_4315 IMG_4316 IMG_4317 IMG_4318 IMG_4319
5 user uploaded images
Casey
Casey from SWISCO
Jun 14, 2024 3:37 pm
SWISCO
EXPERT

Great! The last thing we'll need to see is the connecting point between the spring and pulley inside of the metal channel. That will help us confirm if our stock balances will work for you or if it will need to be a custom order.

Landlord from Cleveland, OH
Jun 17, 2024 12:33 pm
As requested

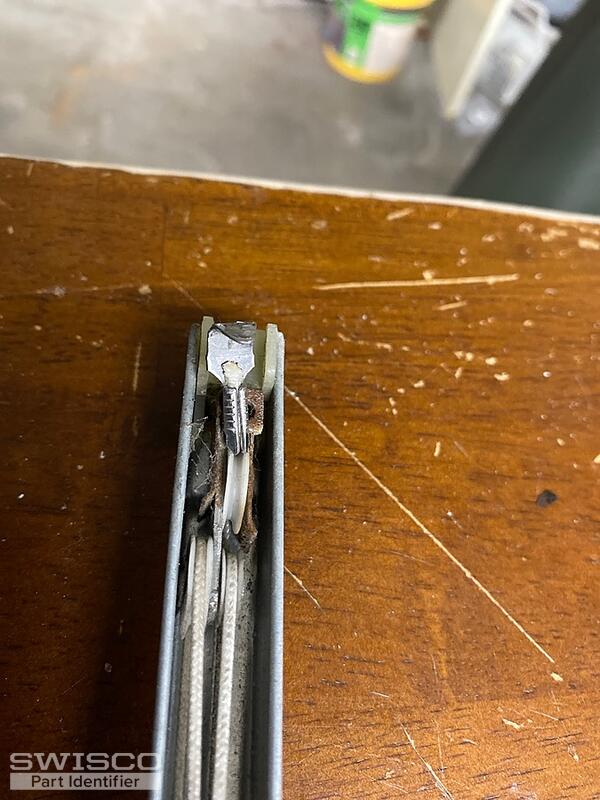

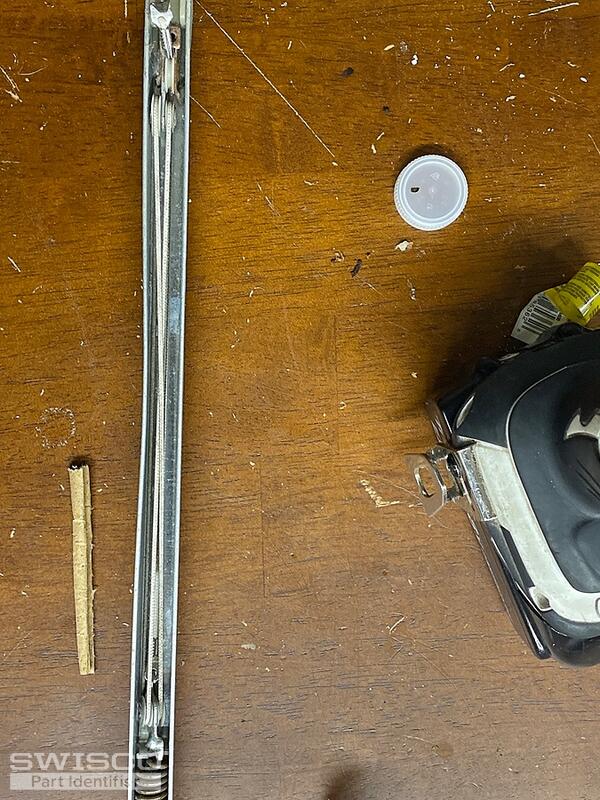

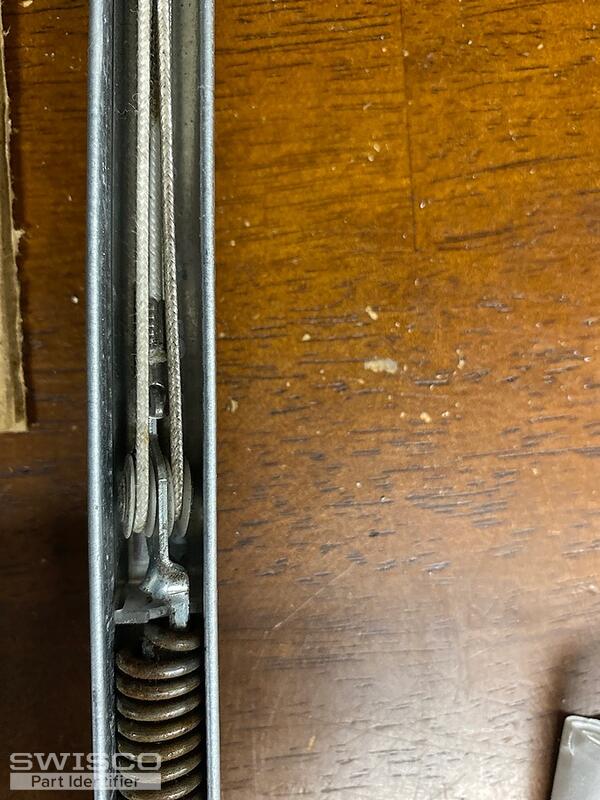

image image image
3 user uploaded images
Casey
Casey from SWISCO
Jun 17, 2024 1:16 pm
SWISCO
EXPERT

Thanks for getting back to us. It looks like you have either our S351-34, with a 15-002 bottom attachment, or S390-34, with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need. You'll also need a 3350 spring strength option for your replacement balances. Thank you!

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.

Landlord from Cleveland, OH
Jun 21, 2024 12:48 pm
Looks like it is the 1 1/8. What exactly should I order??
Casey
Casey from SWISCO
Jun 21, 2024 1:27 pm
SWISCO
EXPERT

In that case, you would need the S390-34 balances with 3350 strength options.
