Window balance and sash guide

Quick Learner from California

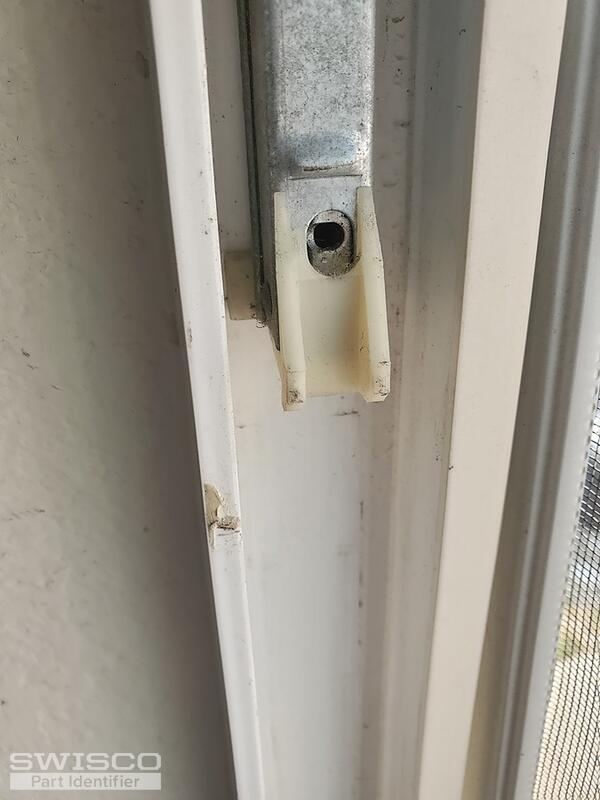

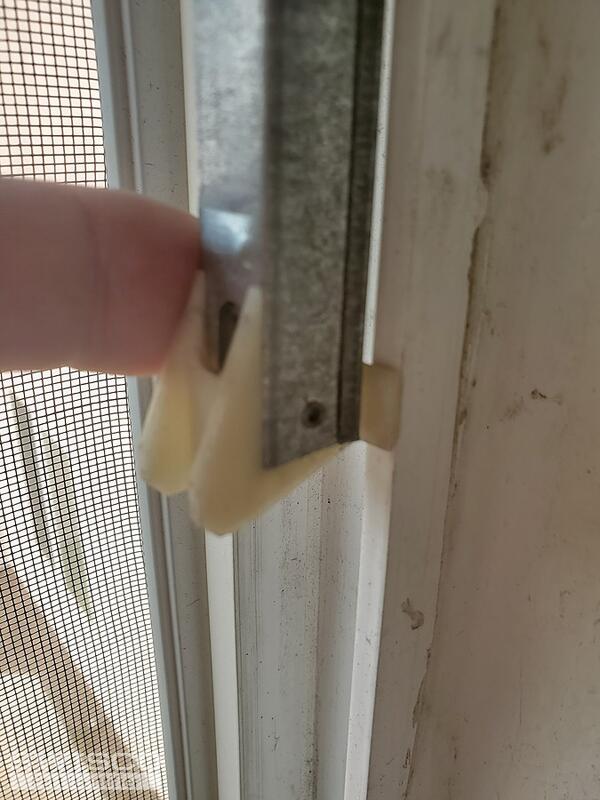

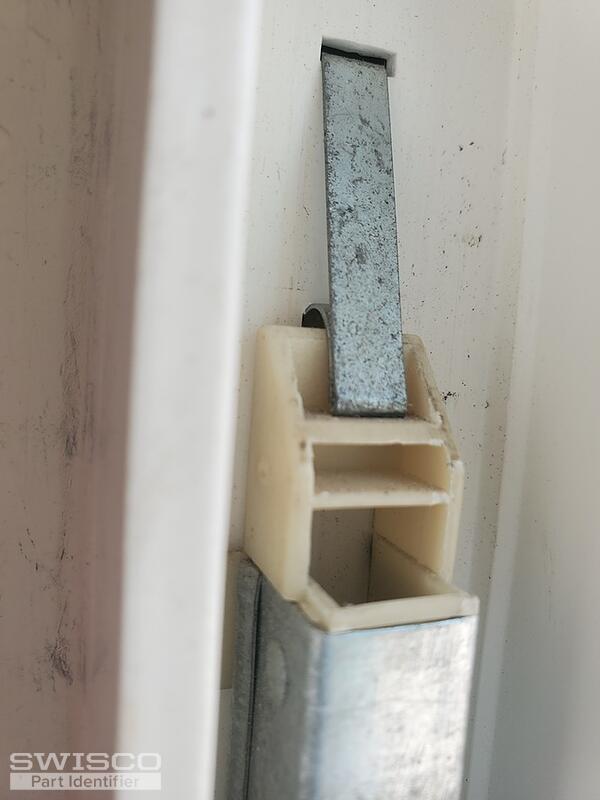

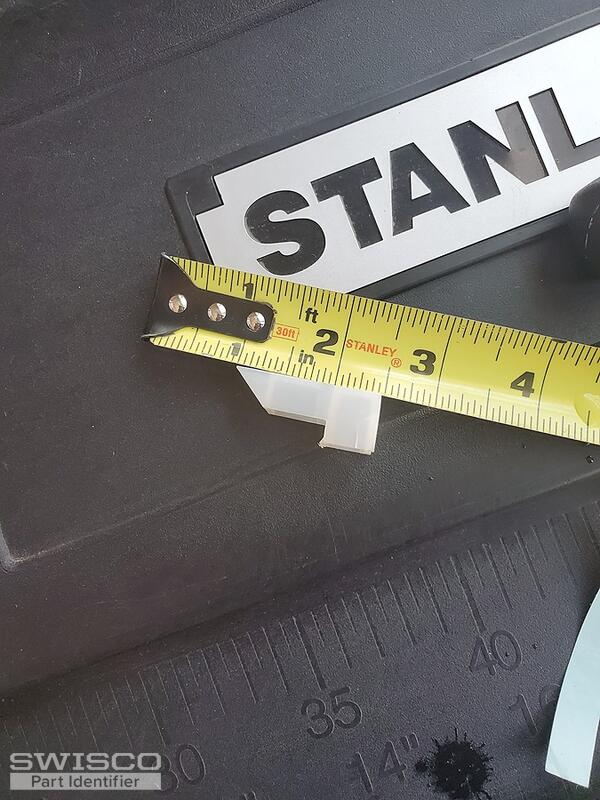

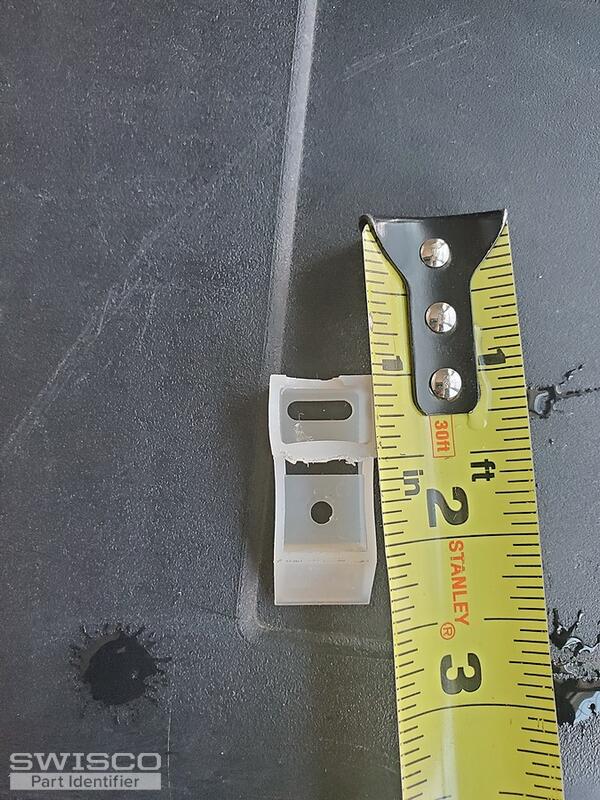

I need 8 of these for 4 of my windows. They all have this same stamp shown in photo.

26 4 EW CMC 10

Thanks
5 user uploaded images
5 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hi there!

Could you upload some pictures of your bottom nylon shoe? I can only see the top fitting in the pictures above. Take a look at the video below, it will go over exactly what we need to see.

As for your top sash guide, could you turn it over so that we can see the front?

Thank you!

Quick Learner from California
Thanks for the helo
3 user uploaded images
Quick Learner from California
My status says closed. Is this correct
Emily
Emily from SWISCO
SWISCO
Expert

Thanks for the additional pictures!

With this combination of attachments, you could have either an S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a spring strength option of 2640.

As for your top sash guide, we don't have an exact match but take a look at our 18-009, 18-064, 18-166 or 18-188 as possible replacements. Look over each and see if you think one of these might match up.

If you have any further questions just let us know!

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
