Window block and tackle counter balance

A handy person from St. Louis, MO says:

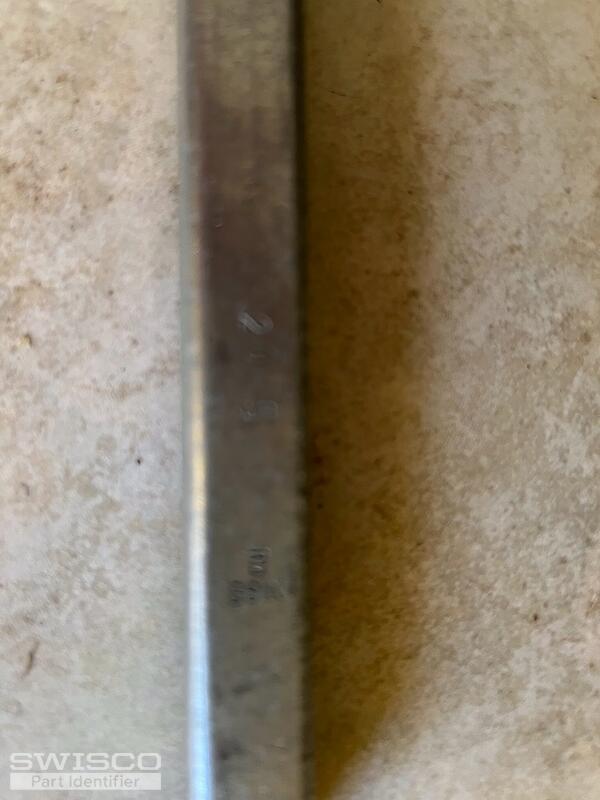

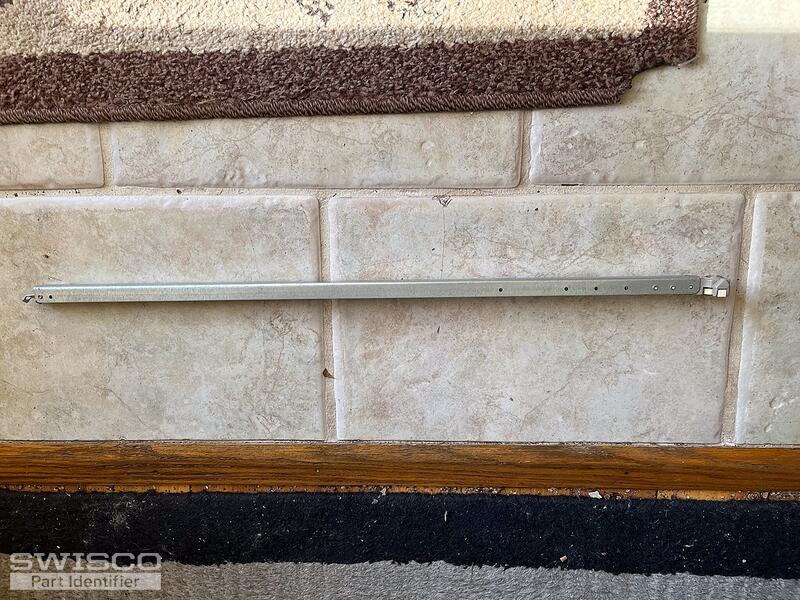

Doesn't look broken but is immovable or locked. 21 inches channel, 1/2 inch in width and depth. Marked 20 - 5 RM BSIM. Dash is faint and may be only from use. Was able to easily lift the two of them from both sides of window without removing window panes.
Thumbnail of the uploaded file named F2F15B87-1B86-4ED3-B901-29AC9C062BF6.jpeg
Thumbnail of the uploaded file named 5E5DE276-E657-44D7-849D-33B2867FB545.jpeg
Thumbnail of the uploaded file named 9184097F-E60A-4459-8BEE-02855D44003B.jpeg
Thumbnail of the uploaded file named 82C34914-59D4-4A1F-B892-9E4EA5841A78.jpeg
Thumbnail of the uploaded file named A38F3BD6-C268-4CBB-A019-53D84E51B018.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

Take a look and compare the 20" long S795-20 channel balance with a 20E strength option to yours. I would recommend double-checking the length of your balance, making sure that you only include the metal channel and not the attached t-lock shoe.

You'll also notice that the metal cam in the t-lock attachment that comes with the S795 balance is closed, while yours is open. You'll need to swap the t-lock shoes that come with the stock balances with the 15-195B that is sold separately. Take a look and let us know if you have any other questions. Thank you!
