Window channel balance

Home Owner from Huntington Beach, California 92649
Hi there I am In need of a 1 window channel balance ! And Someone to install it I live In Huntington Beach, California 92649 ! If you know of any body that would install 1 balance for 1 window ?

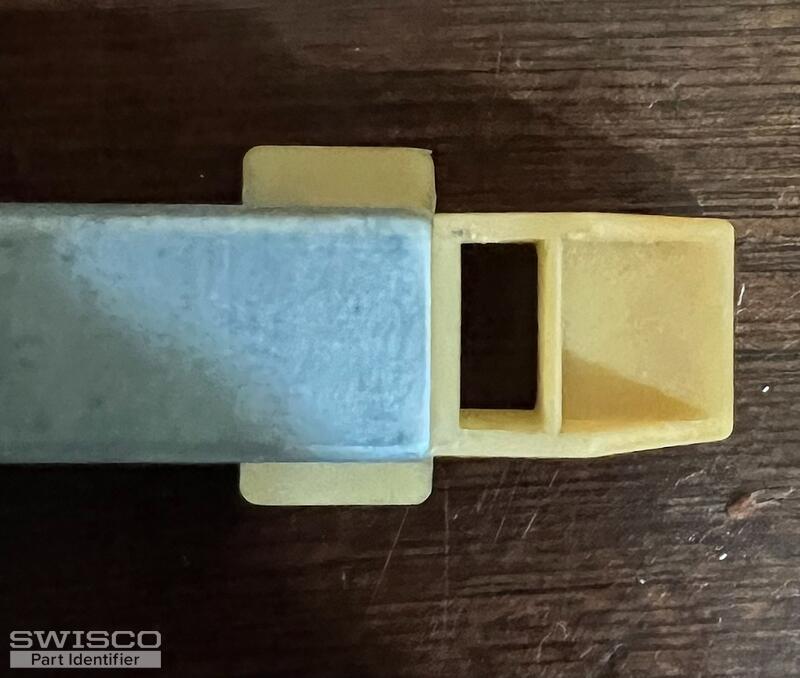

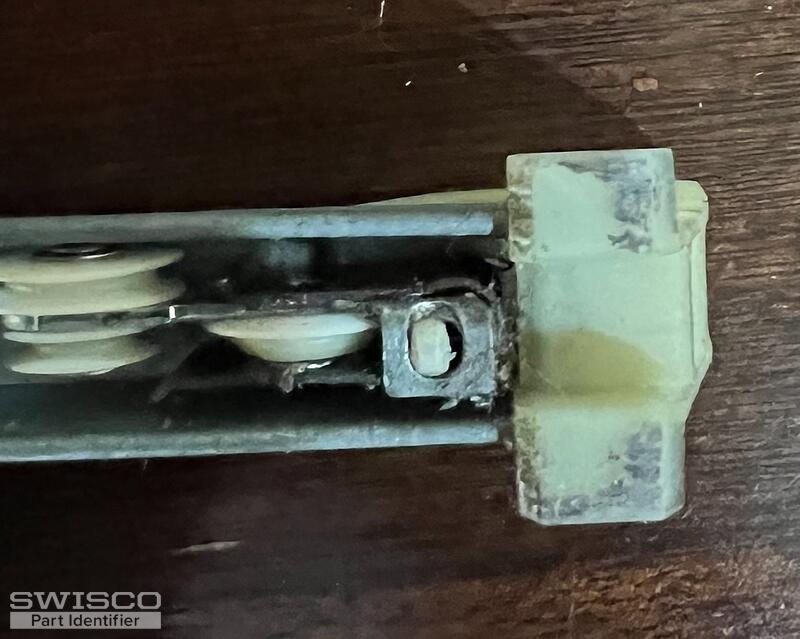

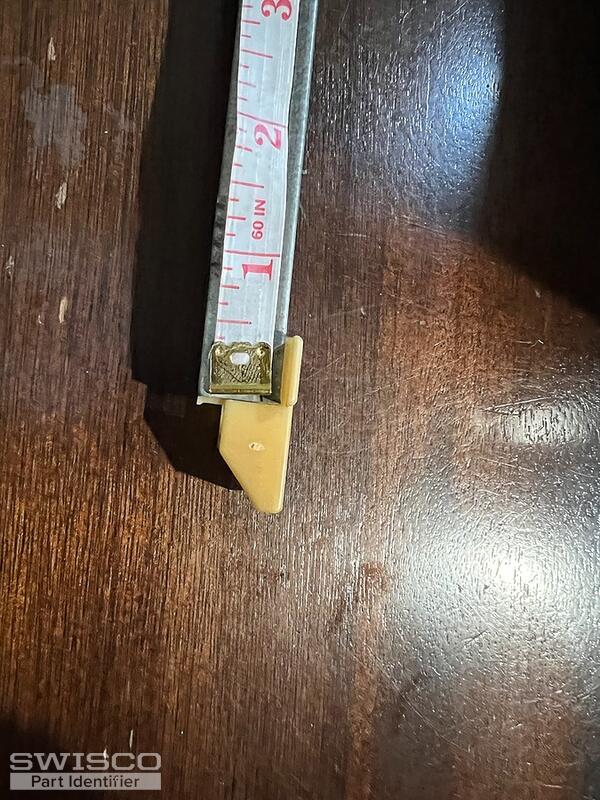

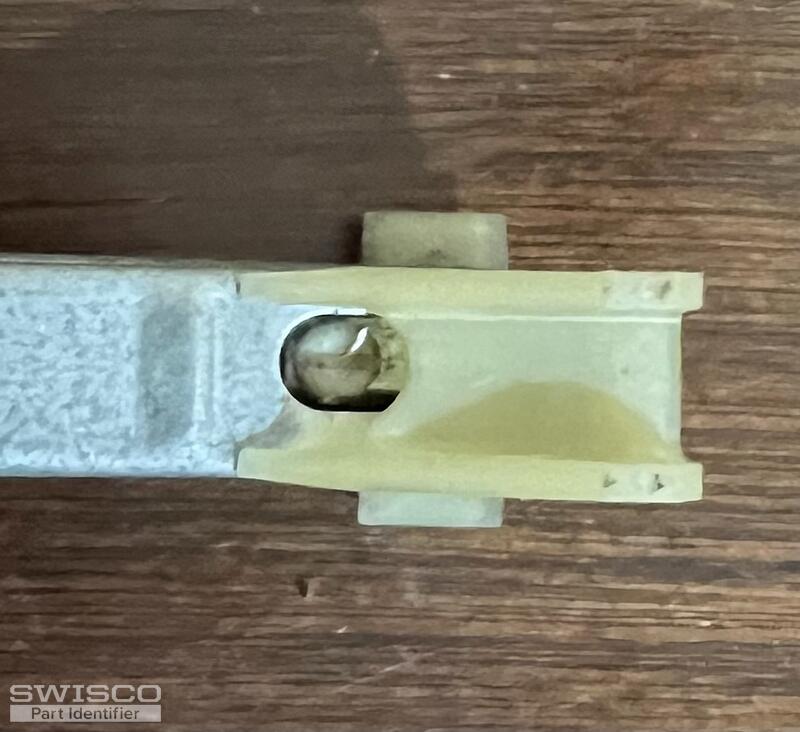

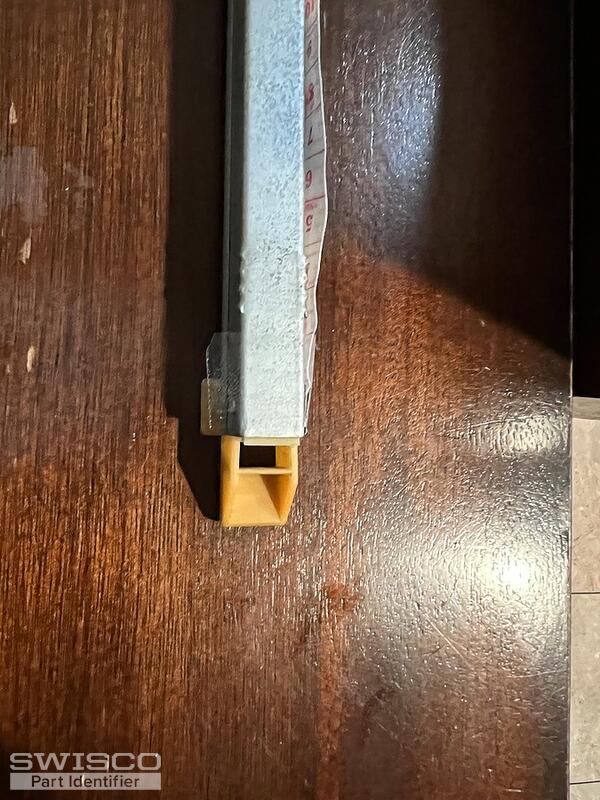

The marking on the balance (20 4 JQ CALDWELL)
5 user uploaded images
5 Replies
Home Owner from Huntington Beach, California 92649

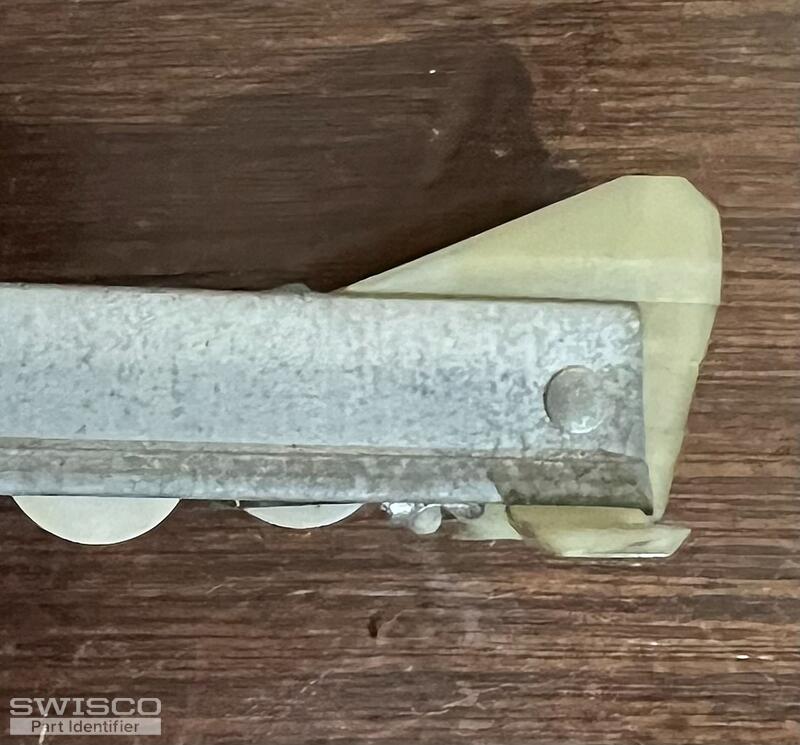

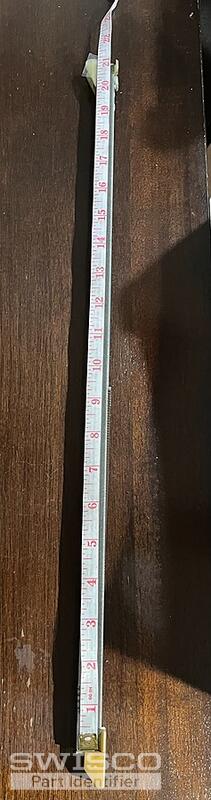

Photos

4 user uploaded images
Home Owner from Huntington Beach, California 92649

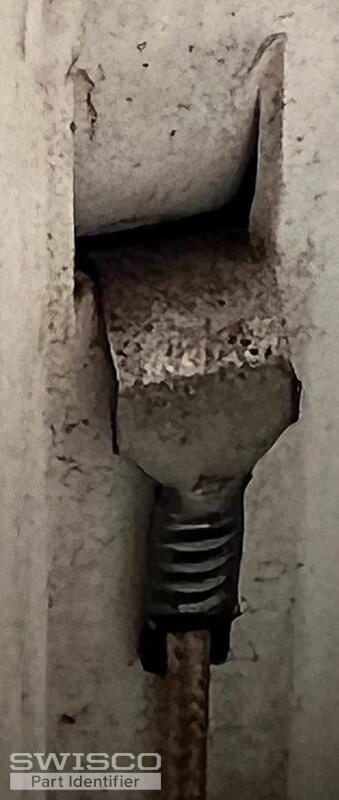

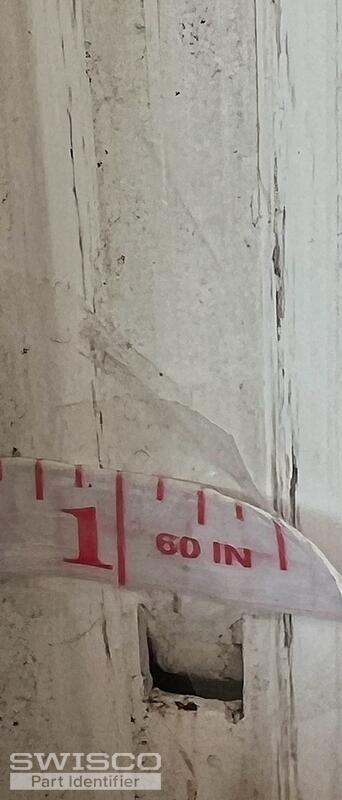

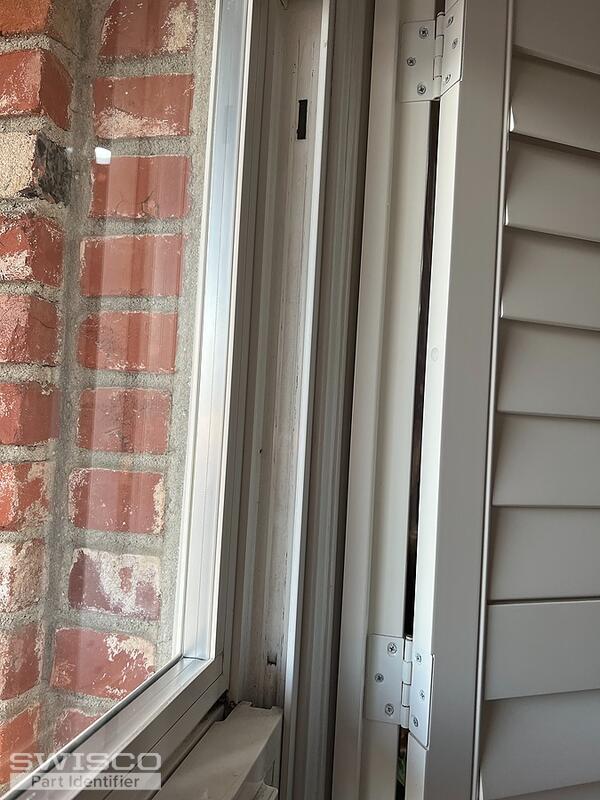

Just more photos
5 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

With this combination of attachments, you could have either the S380-21 or S385-21 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2040 spring strength options for your replacement balances. Keep in mind that both balances should be replaced at the same time to the the sash is equally supported.

Unforutnately, our company does not handle installation, only replacement parts, but take a look at the installation videos related on this page to assist you. Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.


Home Owner from Huntington Beach, California 92649
Thank you for your help....
