Window channel balence

Home Owner from Spring Hill FL

Oct 9, 2023 7:53 pm

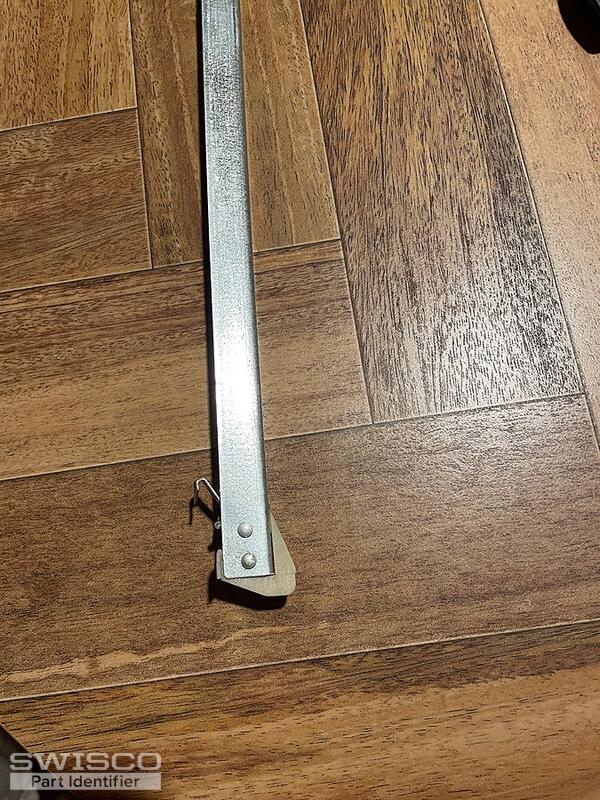

To whom it may concern, I am looking for a channel balance. It is 1/2 inch wide x 30 inches long.

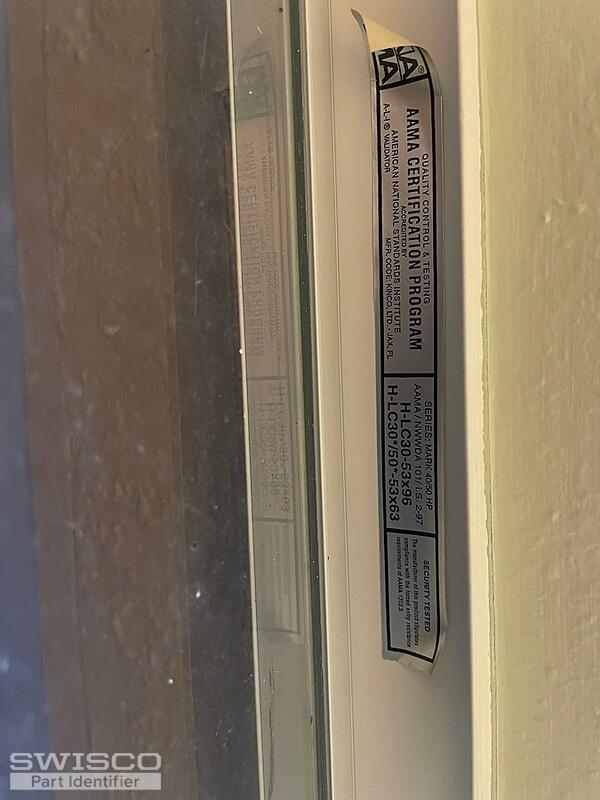

See attached picture with window information.
The balance has a code stamped (no clear) if it is correct
29 3 SI
Please let me know if you need additional information
Thank You for your time.
Joe

5 user uploaded images

4 Replies

+ Add a Comment

Lauren from SWISCO

Oct 10, 2023 12:41 pm

EXPERT

Hi Joe, thank you for posting,

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

You will need a 30" balance with a 2930 stamp option. If you are unsure that the marking is 29 3, this stamp supports a 16 to 23 lb window sash. The sash can be removed and weighed on a scale to confirm. Please review and let us know if you have any additional questions.

Comparison of the S380 and S385 balance shoes.

Home Owner from Spring Hill FL

Oct 13, 2023 8:51 pm

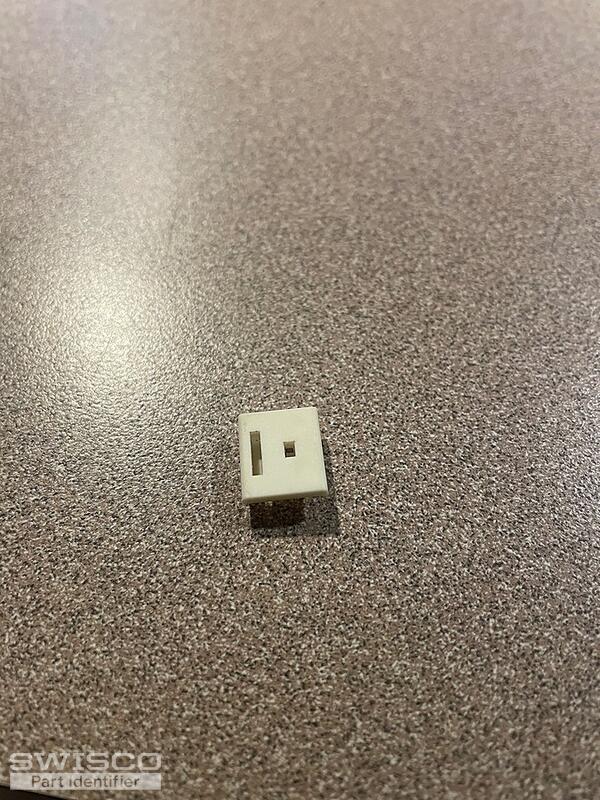

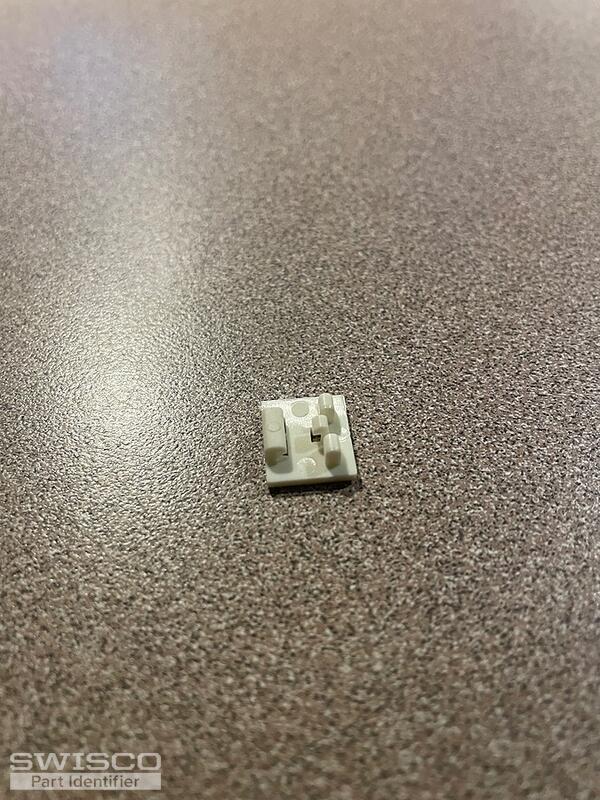

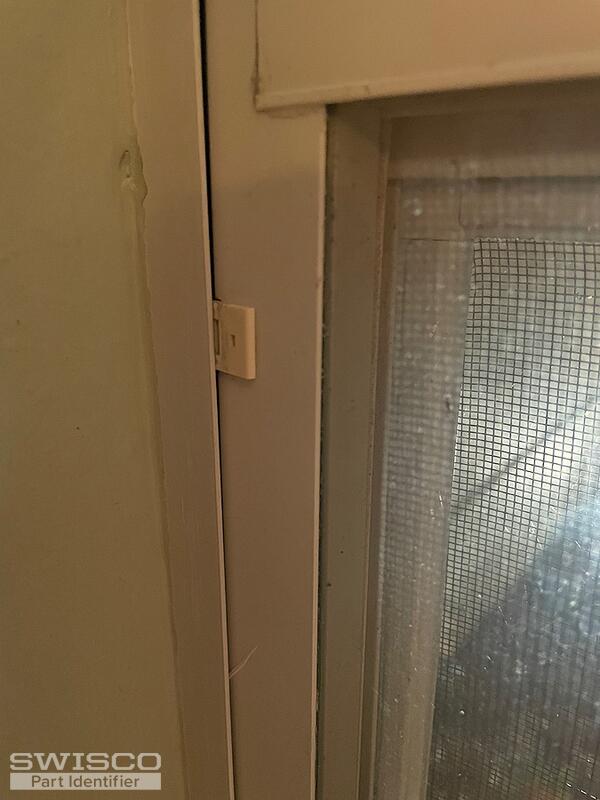

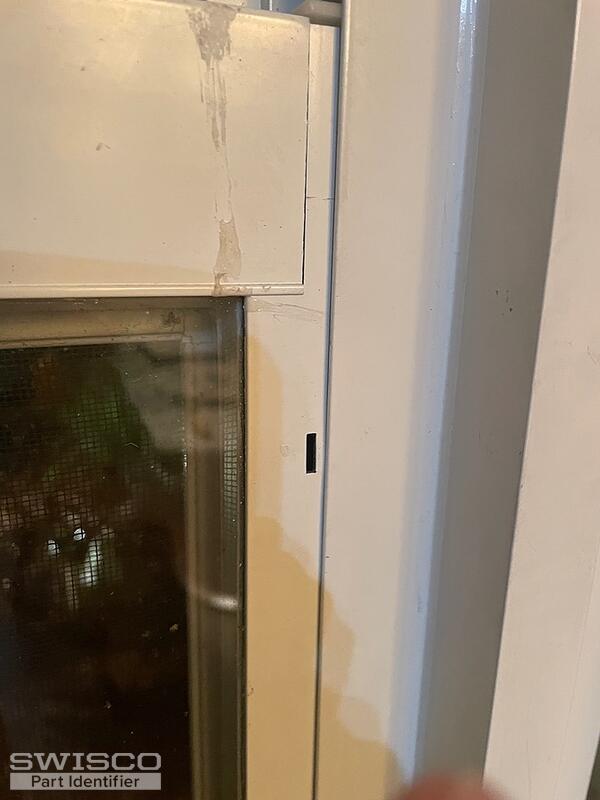

Hi Lauren, I also need this clips that go on each corner of the sash
Could you please give me the part number
Dimensions are
1/2 long x 13/32 wide x 5/32 high
(Approximately)

Thank you Joe

4 user uploaded images

Home Owner from Spring Hill FL

Oct 13, 2023 9:11 pm

Hi Lauren,

The bottom balance channel has 1 inch attachment at the bottom of the track, same as the S380 picture.

the weight of the sash is 16 lb, I will need 12 channel balances
the weight of other sash is 29 lb, I will need 8 channel balances
the weight of other sash is 9 lb, I will need 6 channel balances
and one window is 24 inches long balance channel with the same attachment at the bottom that weighs 11 lb, I will need 2 of them

could you please let me know the part number for each window?

Thank you for your time Joe

Lauren from SWISCO

Oct 16, 2023 9:56 am

EXPERT

Hi Joe,

Please start by reviewing the style and dimensions of the 67-026 face guide to see how it compares to your original!

Dimensions for 67-026

For the sash weights, are they all for a 30" metal channel? If so, please review the S380-30 product page. Under the product description you will see a strength chart. Match up the window sash weight to choose the correct stamp option. Each stamp option needed will need to be added to your cart separately.

This will be the same for the 24" balance. Please review the strength chart on the S380-24 product page to determine the correct stamp option needed. Let me know if you have any additional questions!
