Window part needed

Home Owner from Evans, GA

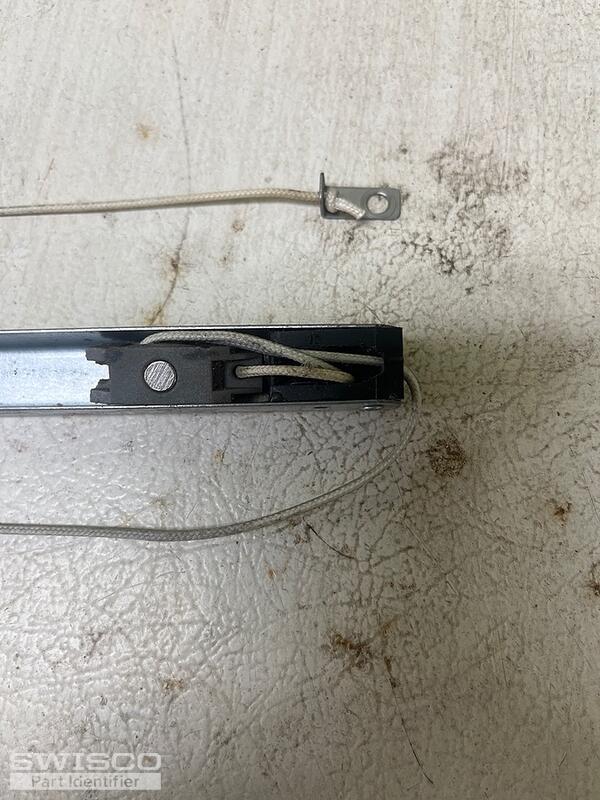

Moss brand window installed in 2006. Clips holding spring in metal channel broke. Marking on channel has 34S. Pictures attached for reference. Any help/suggestions greatly appreciated!
4 user uploaded images
4 Replies
Lauren
Lauren from SWISCO
SWISCO
Expert

Hello, thank you for posting,

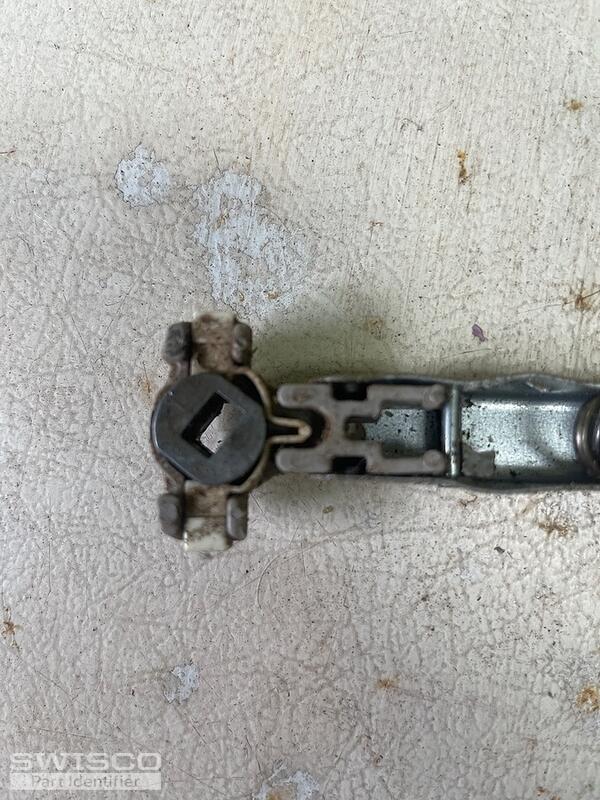

It appears that you have the Series 795 channel balance, but with the 15-195B open cam T-lock shoe. To further review, are you able to provide a picture of the top metal attachment that installs into the window? We need to determine if your balance uses a hook or a screw in tab for installation.

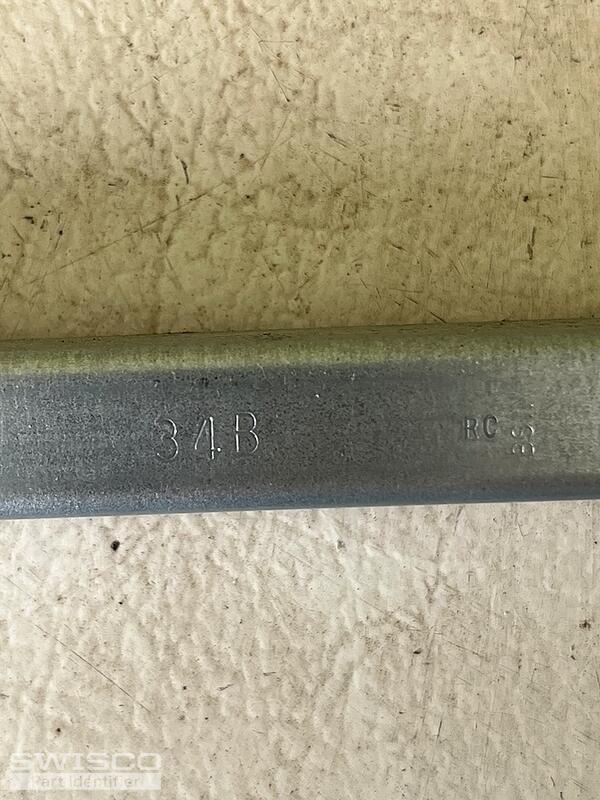

It also appears that your metal channel is stamped with a 34B instead of 34S. Please let me know if this was a typo. Thank you!

Home Owner from Evans, GA
I have attached a couple new photos. I am guessing its the screw in tab that attaches the screw to top of window frame. Also 34B is correct! No idea where the S came from. Thanks so much for the reply!
2 user uploaded images
Lauren
Lauren from SWISCO
SWISCO
Expert

Thank you for the additional pictures!

Your balance uses a screw clip which comes standard with the Series 795 channel balance. You will need the S795-34 channel balance with a 34B stamp option. This balances comes equipped with a closed cam T-lock shoe while yours is open(see through). The 15-195B T-lock shoe will need to be purchased additionally and switched out before install. Please review the video below for more details.

Let me know if you have any additional questions!
