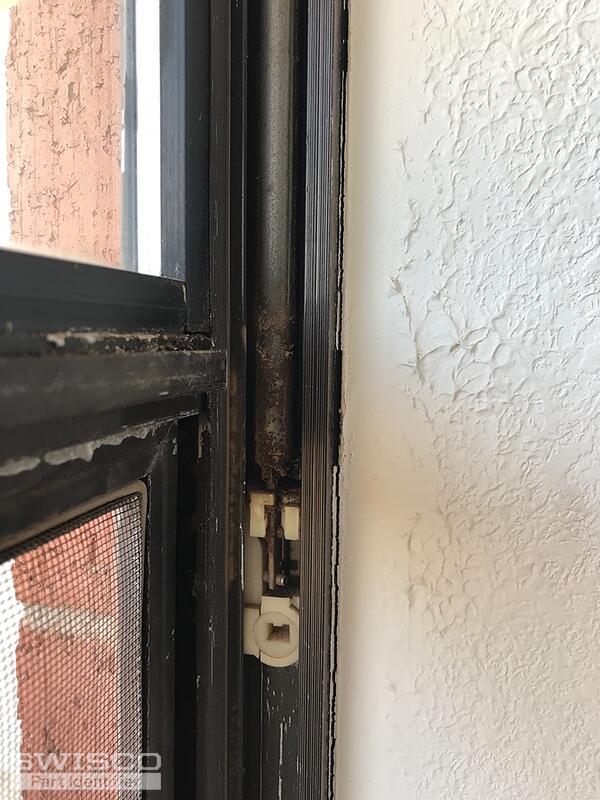

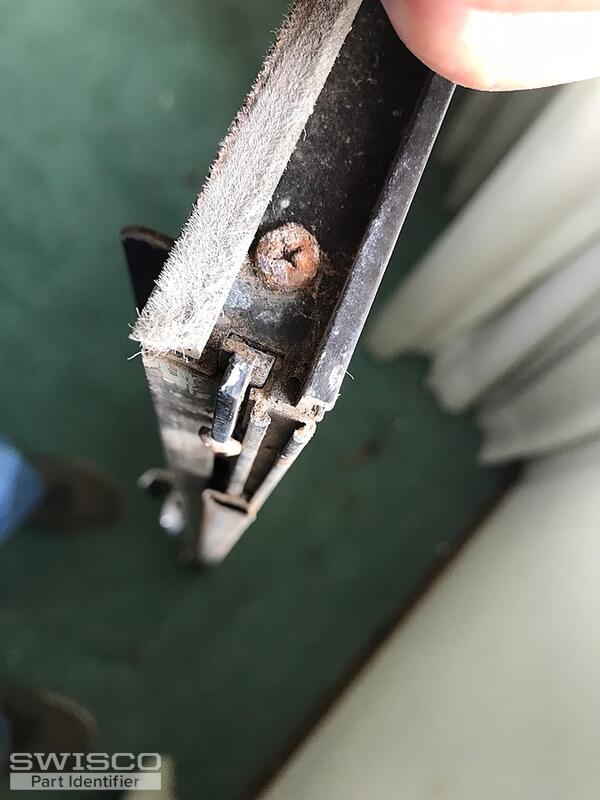

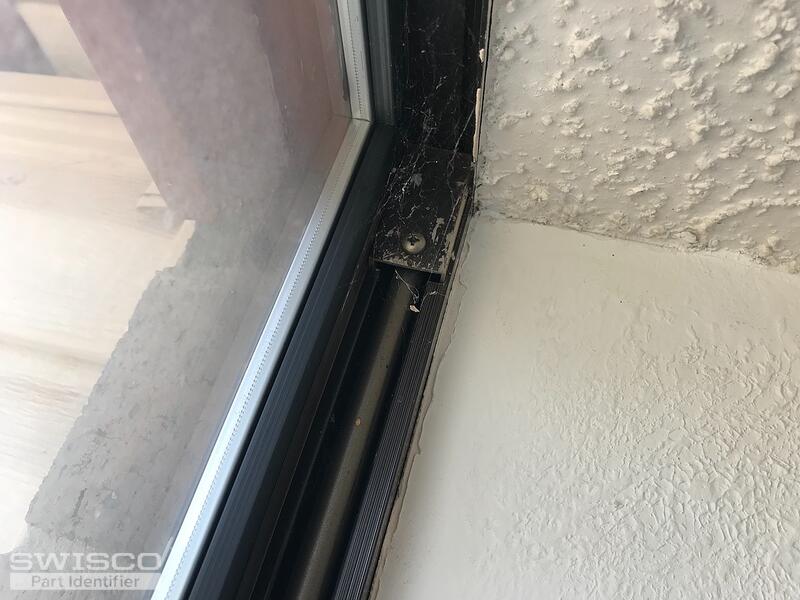

Can you help me with these parts. Two balance springs, two shoes, two pivot bars and two top latches. The house was built in 1979.
A7DEA2F6-3070-48DD-9312-4E54015F82E4 AA8B9285-6786-4C5D-B6CC-B49ABB1EEA65 8FE8FED1-7CA0-4FCB-A60A-CB069ABCCE26 7809A24C-638C-4998-9507-8A8A2E0CAAAD
4 user uploaded images
5 Replies
Tom
Tom from SWISCO
Dec 20, 2021 1:25 pm
SWISCO
EXPERT

We should be able to help, but I'll need more information before I can get a recommendation.

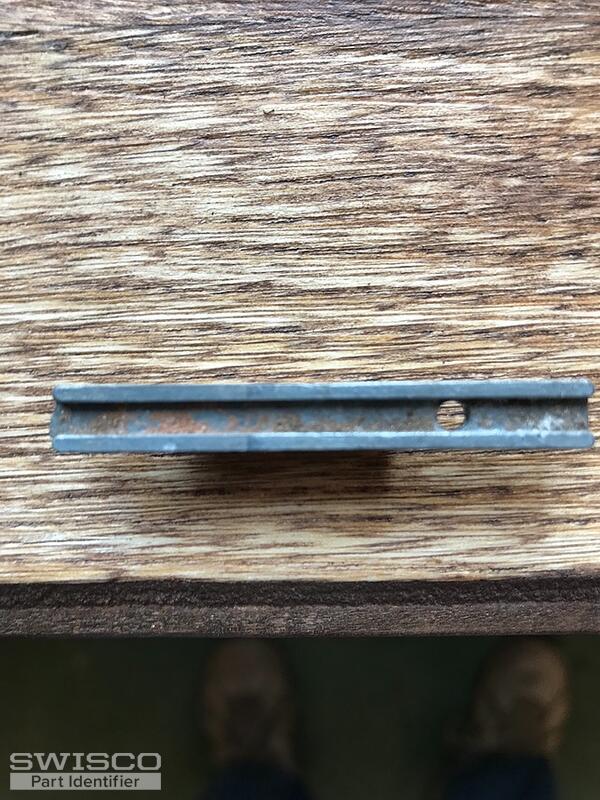

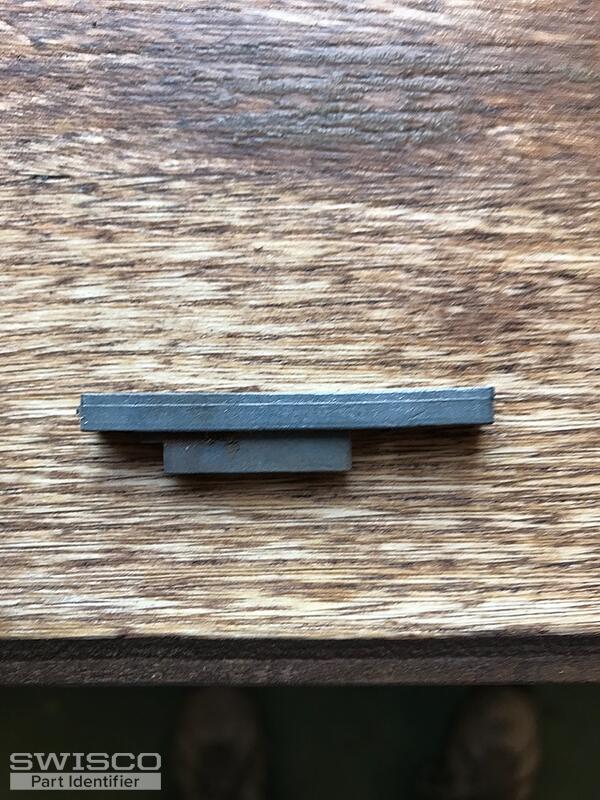

To start, please show me a clear picture of the pivot shoe out of the window and tell me its width and thickness. Those are the two most important dimensions. I will also need you to tell me the diameter of the outer balance tube. Finally, seeing a picture of your pivot bar removed and from a few more angles would also be a huge help.

Quick Learner from Oklahoma
Dec 20, 2021 2:49 pm
l can get you better pictures and measurements tomorrow.
Tom
Tom from SWISCO
Dec 21, 2021 9:03 am
SWISCO
EXPERT

Sounds good! I'll be here whenever you're ready.

Quick Learner from Oklahoma
Dec 21, 2021 5:23 pm
Tom

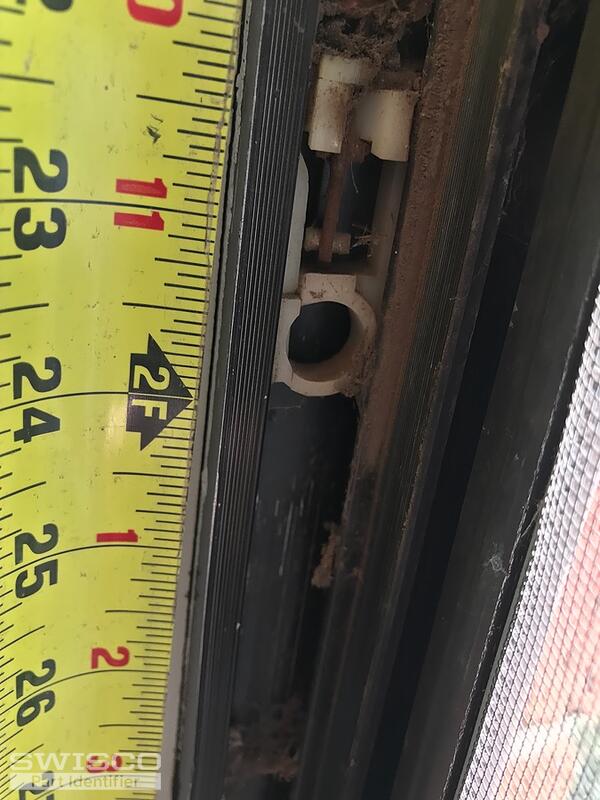

Here are some better pictures. The counter balance is 3/8. If you need anything more measurements or pictures let me know.
Thanks
EEB699CD-8449-4F65-986F-17CAD7633CFE F8420A7A-AD3F-4A6B-B1B0-92B8BDF5A89F FD0E09F3-E52A-4CF7-B1DD-3F5594A2DDD1 9CF4CC4A-3BED-467E-9788-7F11E6AF7C1E 5389E491-952E-40AB-97BA-F0C482E4719D
5 user uploaded images
Tom
Tom from SWISCO
Dec 22, 2021 12:27 pm
SWISCO
EXPERT

Thanks! The pivot bar looks to be a match for our 26-041. This can be used for a bunch of different pivot shoes but the most common pairing is the 15-045. You really should compare the 15-045 dimensions we show on its store page to your original, just to be 100% sure.

For the tilt latch, see our 26-089P.  (26-089BP for black version)

I am still not sure what your balance diameter is. If the tube is 3/8" then you want the Series 900. If it's 9/16" or 5/8", then you want the Series 500 instead. Based on everything you've shown me so far it's probably going to be 3/8" but it can't hurt to check.
