Window parts

Contractor from Charlotte
Aug 10, 2023 8:09 am

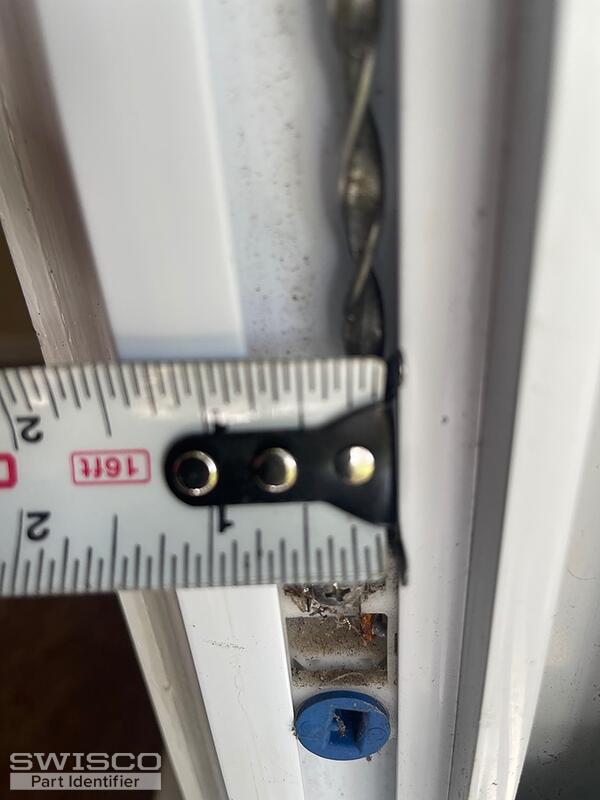

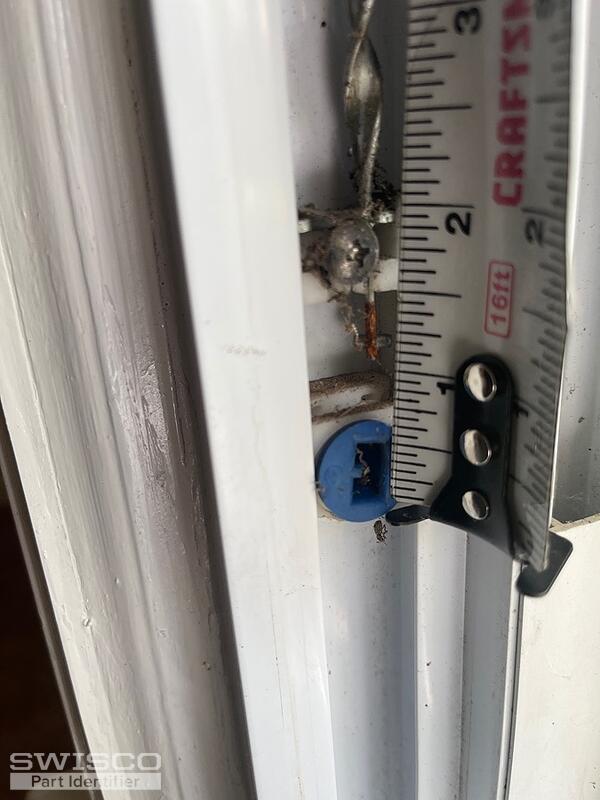

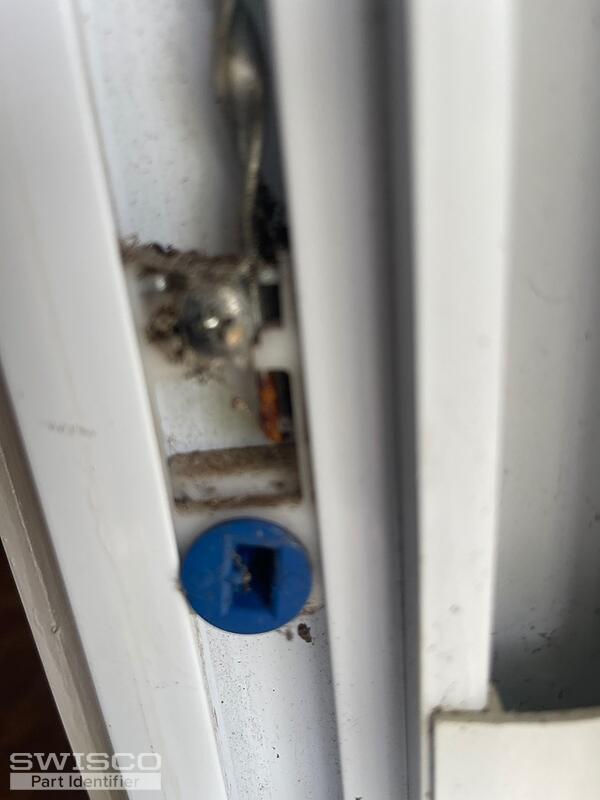

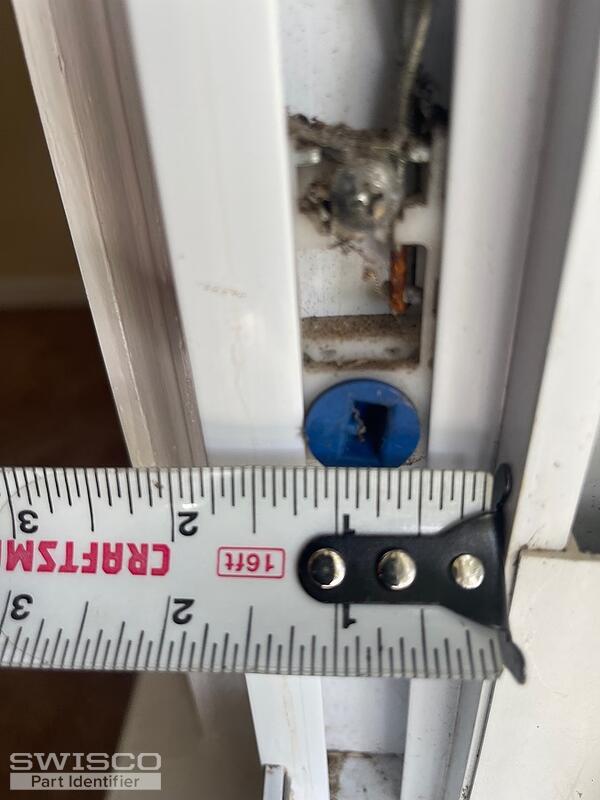

IMG_5677 IMG_5676 IMG_5678 IMG_5679
4 user uploaded images
3 Replies
Bob from SWISCO
Aug 10, 2023 2:57 pm

Thanks for posting. This pivot shoe might be something like our 15-118 or 15-046, but I'm afraid it's impossible to accurately measure the dimensions without removing the shoe from the window. The video below shows how to do this via the 'cutout' method. Your shoe is likely 1-1/4" wide, but the thickness is also what will determine which shoe you need. Let us know what you find.

Contractor from Charlotte
Aug 15, 2023 7:00 am
Could it also be 15-015?
Also can I just order the blue center pieces. That's really all I need.

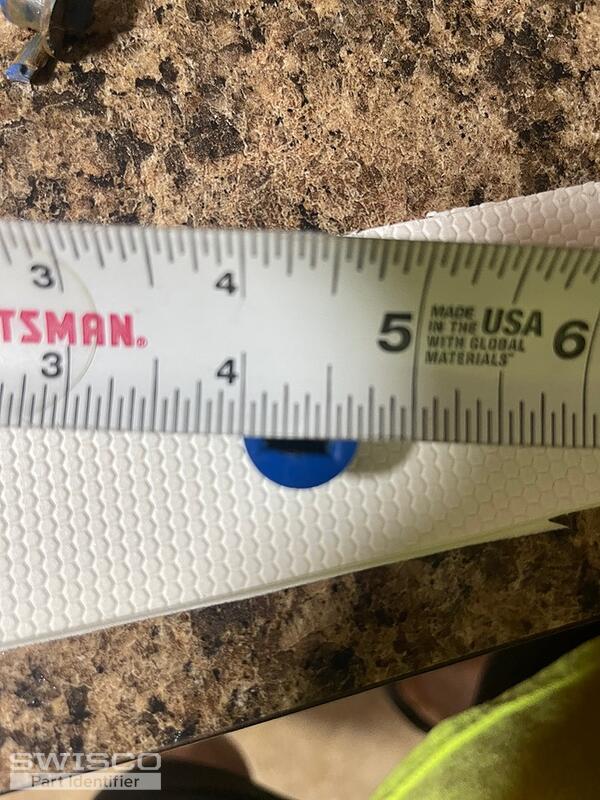

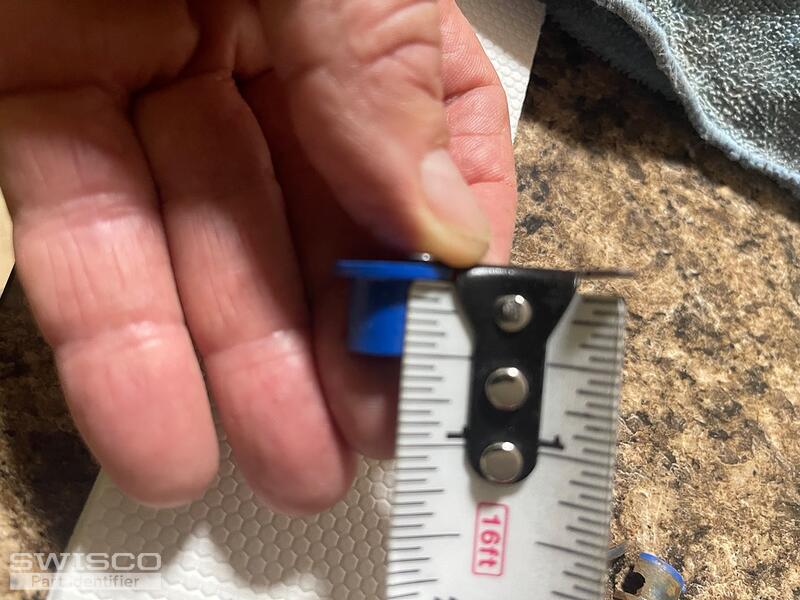

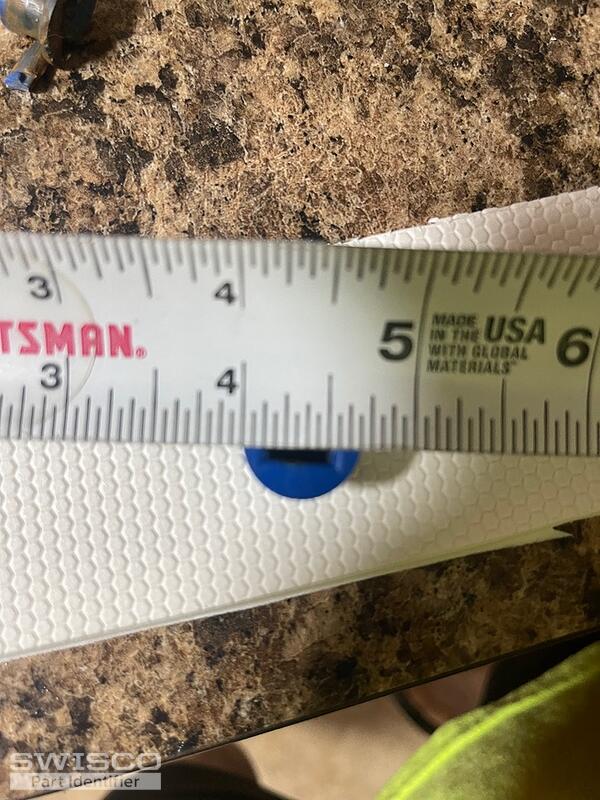

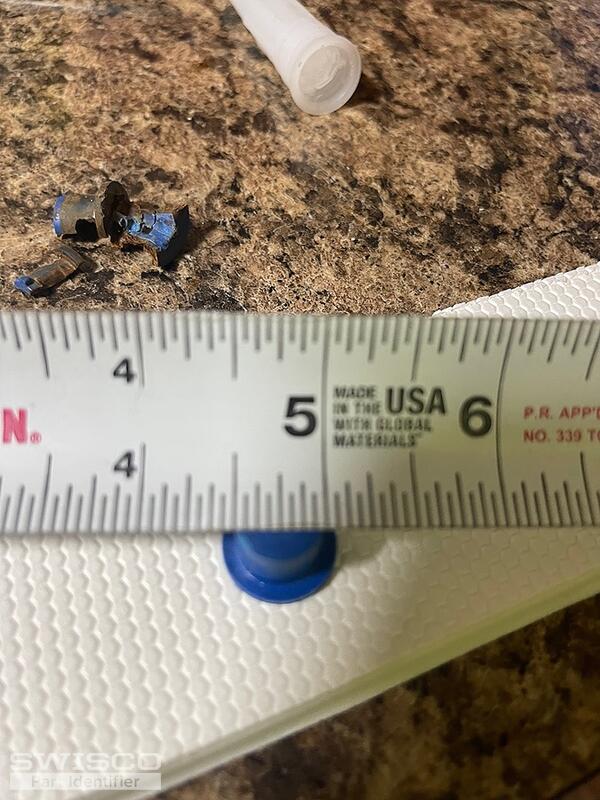

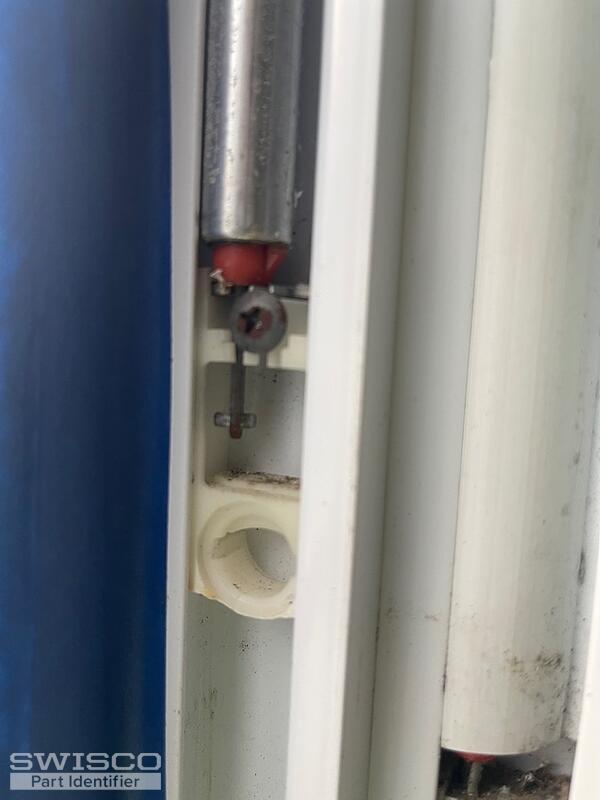

IMG_5752 IMG_5750 IMG_5748 IMG_5747 IMG_5746
5 user uploaded images
Casey from SWISCO
Aug 15, 2023 8:52 am

The 15-015 could possibly work but it is a slightly different style than yours, which is why we recommended starting with the 15-118 and 15-046. The thickness of an undamaged pivot shoe would be the determining factor. Unfortunately, the center cams are not available separately. We apologize for the inconvenience.
