Window parts

A quick learner from Dixon il says:
Do you carry this part
Thumbnail of the uploaded file named 38C98CCB-785B-4540-B974-F364A347726B.jpeg
Thumbnail of the uploaded file named A1F13471-1C7B-4A2F-A53B-BD856C37527F.jpeg
Thumbnail of the uploaded file named BFA926F8-94F7-4786-91AA-73A5F618F077.jpeg
Profile picture of Tom
Tom from SWISCO responded:

We don't have a pivot bar that matches this, no. Would it be possible to see a picture of the shoe that this part engages? That will allow me to check to see if we sell anything that can be used as a replacement instead.

A quick learner from Dixon il says:

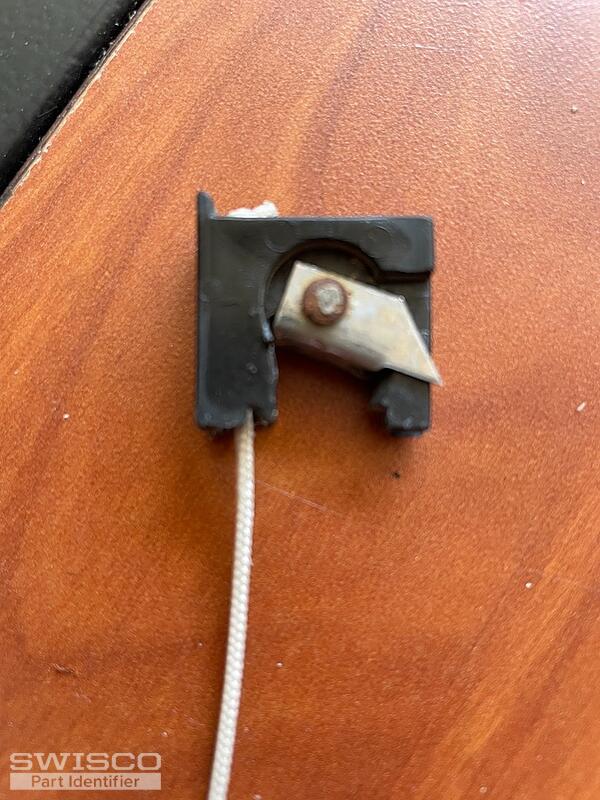

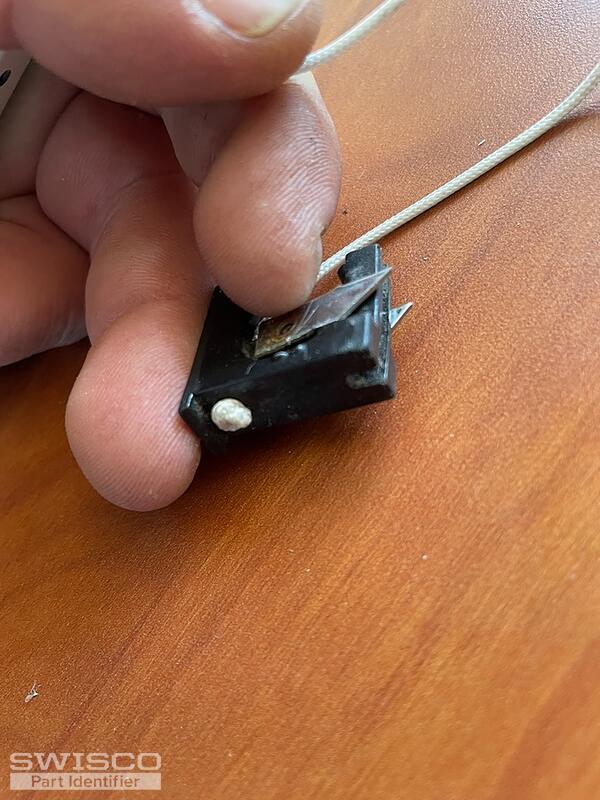

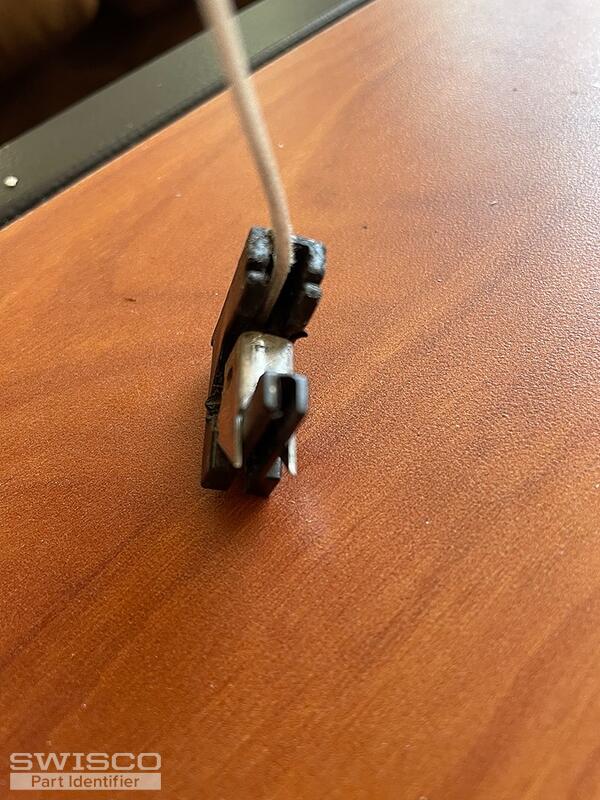

This is what the pivot bar sits on. A custom balance that I just had made thru swisco
Thumbnail of the uploaded file named 37DFC374-10BC-4860-9875-788F8E23C684.jpeg
Thumbnail of the uploaded file named EDB1ADA1-0B34-4829-A50B-31D70211A69A.jpeg
Thumbnail of the uploaded file named DA68C8A0-50C0-483D-87E8-5F0CA47A0730.jpeg
Profile picture of Tom
Tom from SWISCO responded:

Thank you! I didn't even realize you had placed an order with us before, I'm sorry for overlooking that. These new images are a huge help, though.

I have good news and bad news. The good news is that we do sell a pivot set that can work with this knife-lock shoe guaranteed, and that would be our 26-150.

The bad news is that I'm not sure how well this will install on your sash. The 26-150 is meant to screw to a flat surface, but the bottom corner of your sash has a hole in it where the old pivot bar plugged in. You may need to find a way to cover that hole so that the 26-150 can install freely, though even then I'm not sure just how well it will work.

I really tried to find your old pivot bar but didn't have any luck. At this time I think our 26-150 is our best match. I am optimistic that it can work even though I cannot guarantee it.

I'm sorry that I cannot give you a more confident answer.
