Window screen clips

Quick Learner
May 6, 2024 5:19 pm
Window screen glass clips

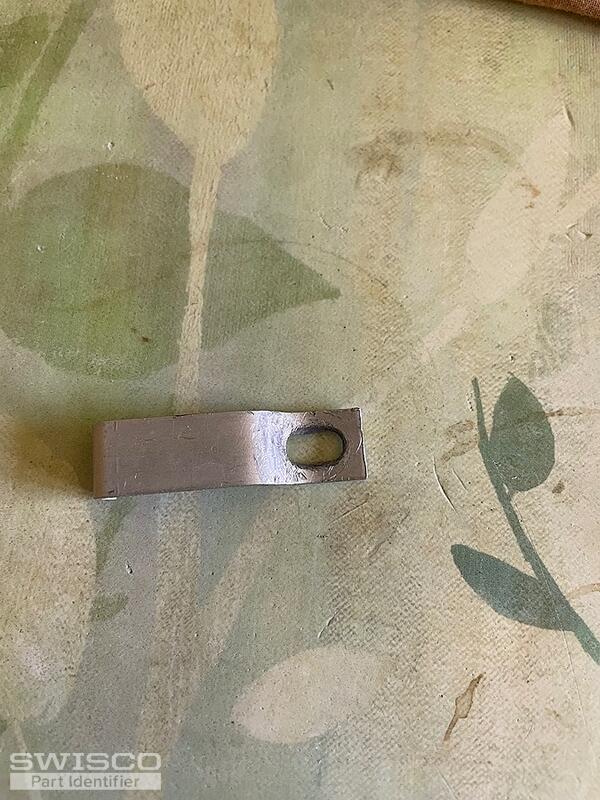

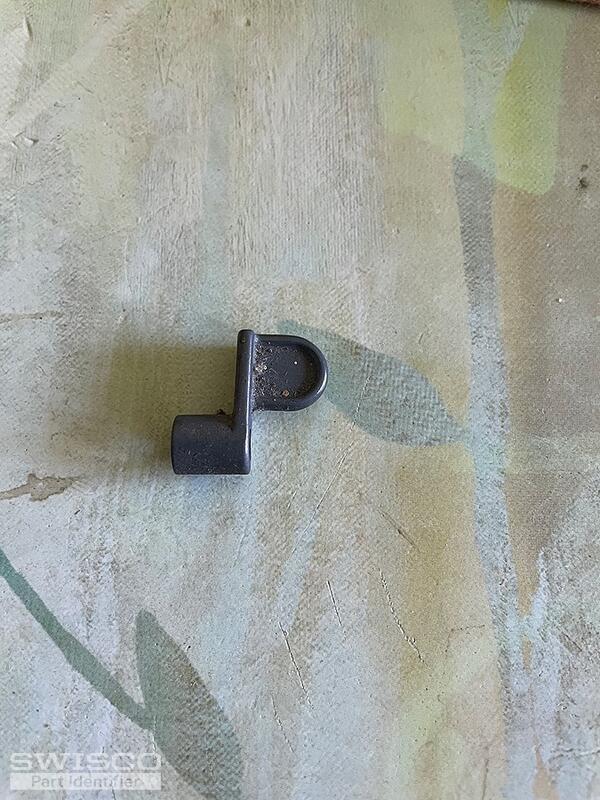

IMG_2019 IMG_2018
2 user uploaded images
1 Replies
Tom from SWISCO
May 7, 2024 1:20 pm

Hello! Your first clip looks like a match for our 70-034, which has a 5/16" offset. You will need to measure your original part to verify that it's the same size. We have other options if 5/16" isn't right.

I'm not as confident about the second piece. It may just be a weird angle, but I'm reminded a bit of our 70-132. This is as good a place to start as any, so review these dimensions as well to see how well they compare.

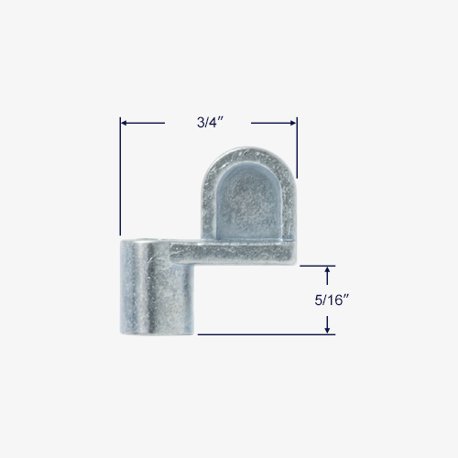

Detail of 70-034
Detail of 70-034

Top view of 70-132
Top view of 70-132

Profile view of 70-132
Profile view of 70-132
