Window spring balance parts 29B (S770)

Question

Hi,

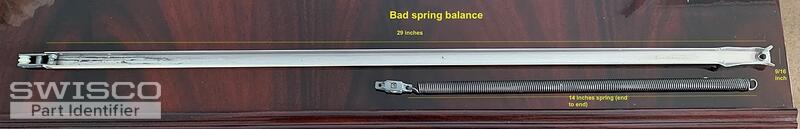

I have a broken channel window spring balance (double hung tilted window). It's 29" long and 9/16 in width. The window was manufactured and installed by a company called DOR-WIN 24 years ago. The part looks like S770. The piece has a code "29B" on the metal. Should I be ordering the S770 29B as a replacement?

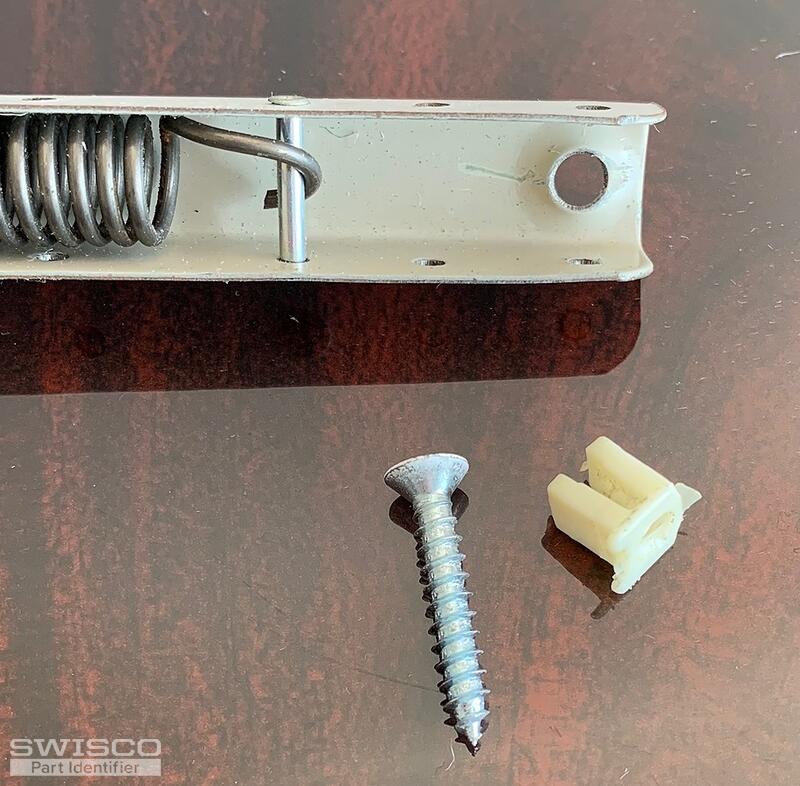

Also, there white plastic piece is broken too. It's the part which is inserted into the window frame and the spring balance is screwed and secured into it. Do you have this part?

I have included 3 images for your reference.

Regards,
Jason

Jasmine · Accepted Answer

Thanks for reaching out! Yes, I do agree. The balance you have here is the S770-29 with a 29B Stamp.

I believe the plastic piece you are describing is the 26-200 Balance Screw Plug. Although, it would help to see the part installed to confirm that this is the part you need. Are you able to provide a photo of an undamaged piece, installed in the window frame?

Alternate image for 26-200
