Window springs

Start a new Discussion

Quick Learner from Culpeper

Jul 3, 2022 12:17 pm

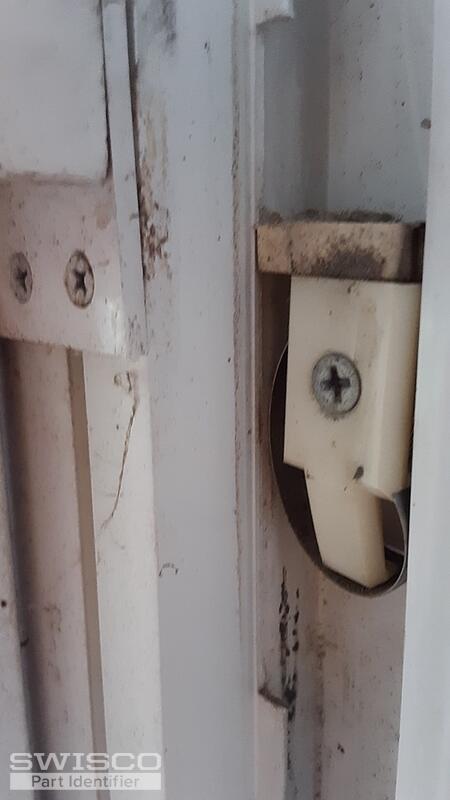

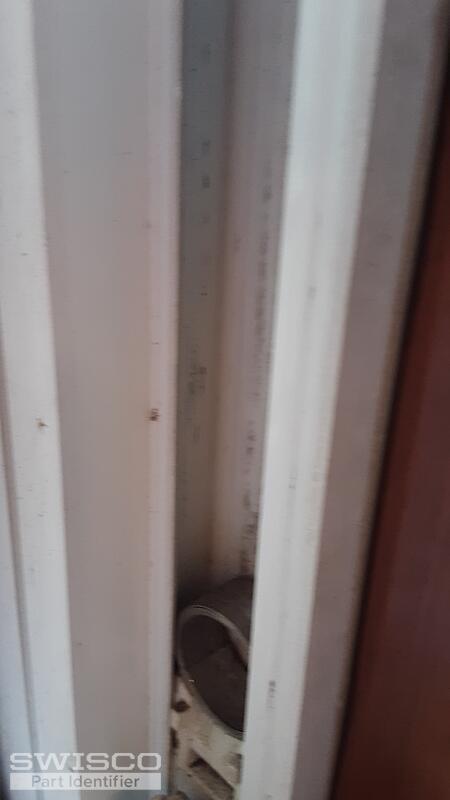

Windows have no identifying information. Flat srings to open/close window are broken on both sides.
Thank.you

2 user uploaded images

4 Replies

Casey from SWISCO

Jul 6, 2022 4:10 pm

Hello,

We'd be happy to help but we'd need to see photos of your pivot shoe and coil springs removed from the window to compare to our inventory. We'll relate a few videos to assist you with the process. Thank you!

Quick Learner from Culpeper

Jul 6, 2022 5:01 pm

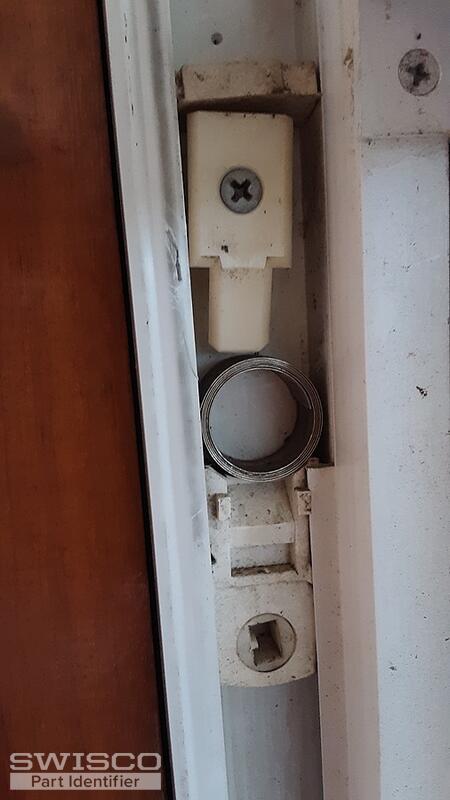

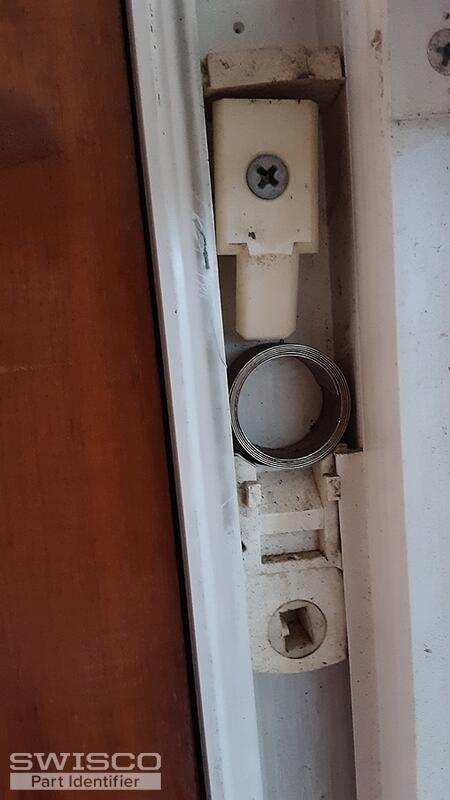

Thank you. Here are the new photos. The spring is 1/2 inch.

2 user uploaded images

Tom from SWISCO

Jul 7, 2022 12:13 pm

Hey there! Casey isn't here today but I'm happy to assist.

Your shoe here is an older version of our 15-180. I'm very confident that this will replace the original despite their differences in design. With that in mind, you'll also want our 15-186 cover, 15-182 bushing, and Series 190 coil spring.

Please let me know if you had any other questions!
