Hello,

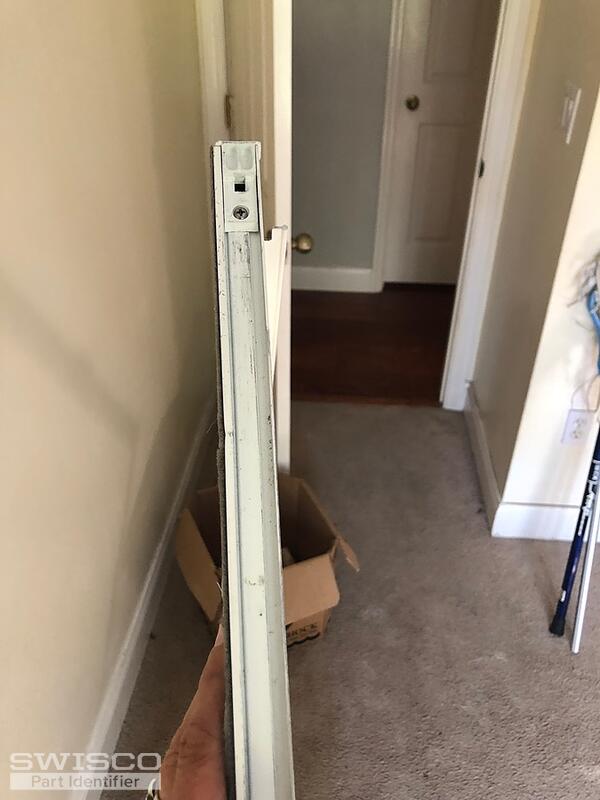

Your top sash guide resembles the 18-161. Take a look and compare the dimensions below to confirm they match up to your part. Thanks for posting!

Detail of 18-161

Profile view of 18-161

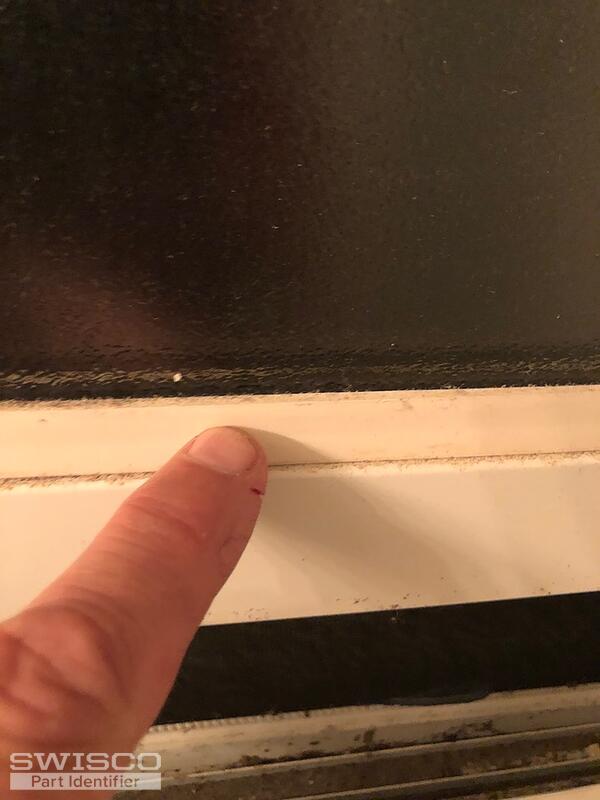

I don't see anything that resembles the lock in your photo. If the part is missing, is there another window that uses the same part that you could show us?

I'm not sure but it sounds like you may be referring to the channel balances, which often sure a take out clip similar to our 16-002 to catch them at the top of the window when removing the sash. Take a look and see if this might be the part that you're looking for.

Alternate image for 16-002

We're happy to help! I see that you purchased the 16-002 take-out clips. Just let us know if you need anything else.

Top sash guides are only designed to be installed on the top corners of the window sash. If there is a part missing from the bottom, I would recommend checking the other side or an identical window with an intact version of the part that you need that you can show us.

There is no bottom guide used exclusively with the 18-161 if that is what you're asking. We would need to see a photo of the original part to confirm if it is something that we can supply.

If you're asking if the bottom sash would use the same guides as the top sash in a double-hung window, they would most likely be the same but I would still recommend checking another window to verify.

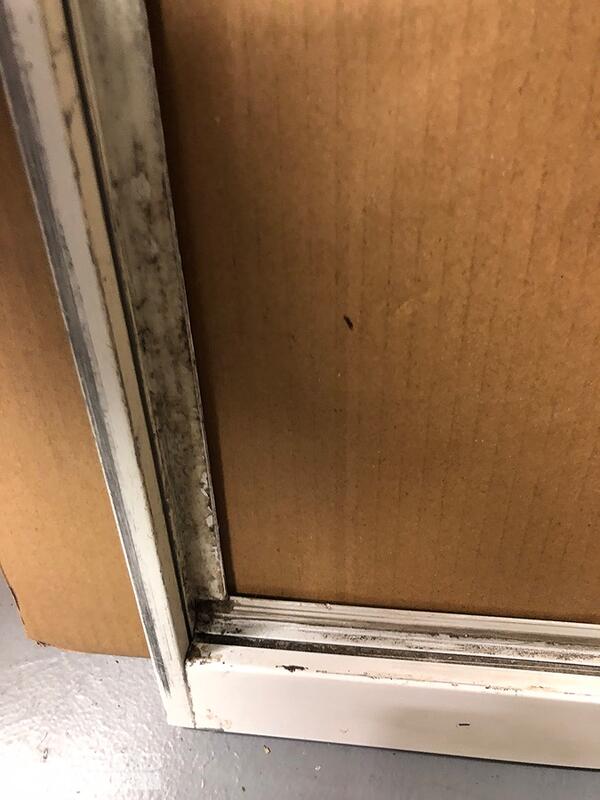

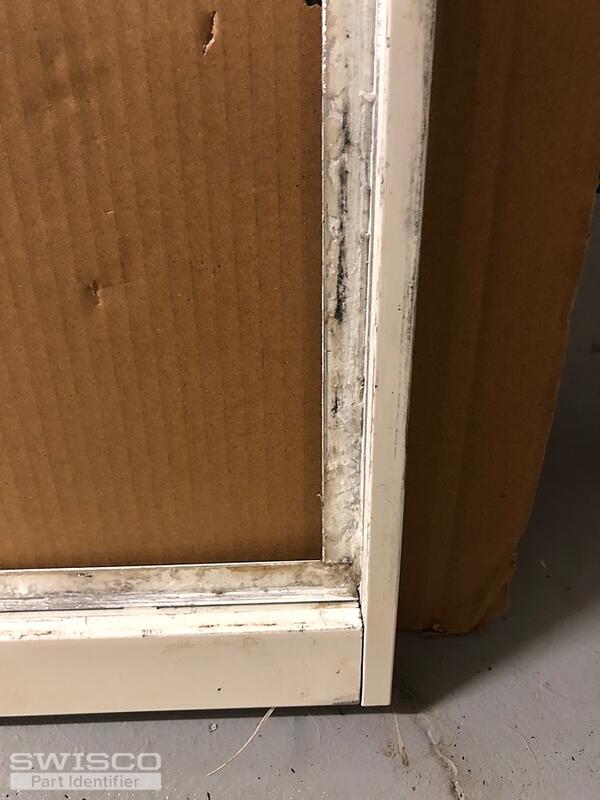

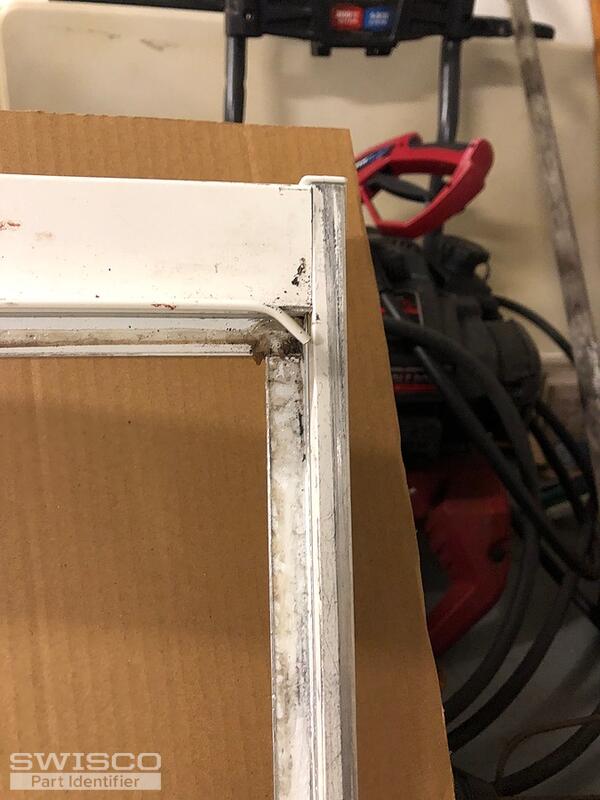

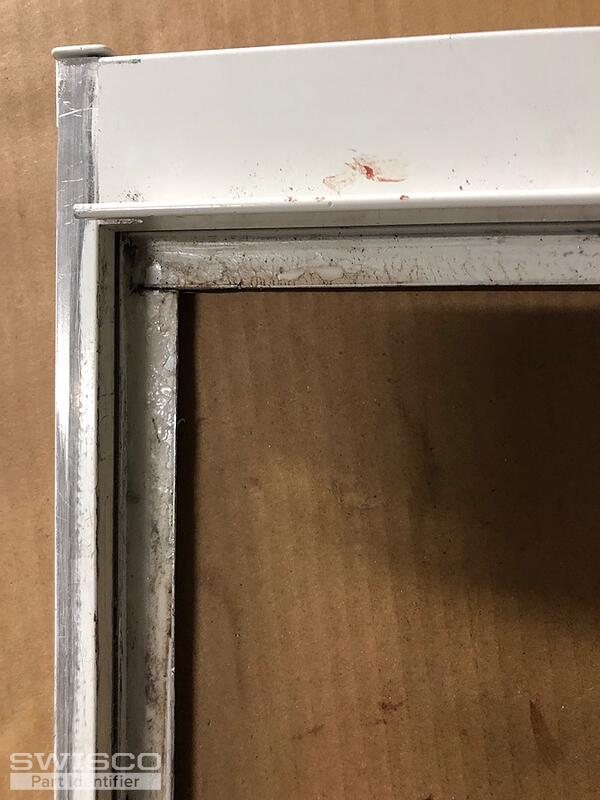

This looks like it may be glazing. If that's the case, we'll need you to remove an undamaged sample and show us a clear view of the end profile. Feel free to browse our selection here in the meantime.

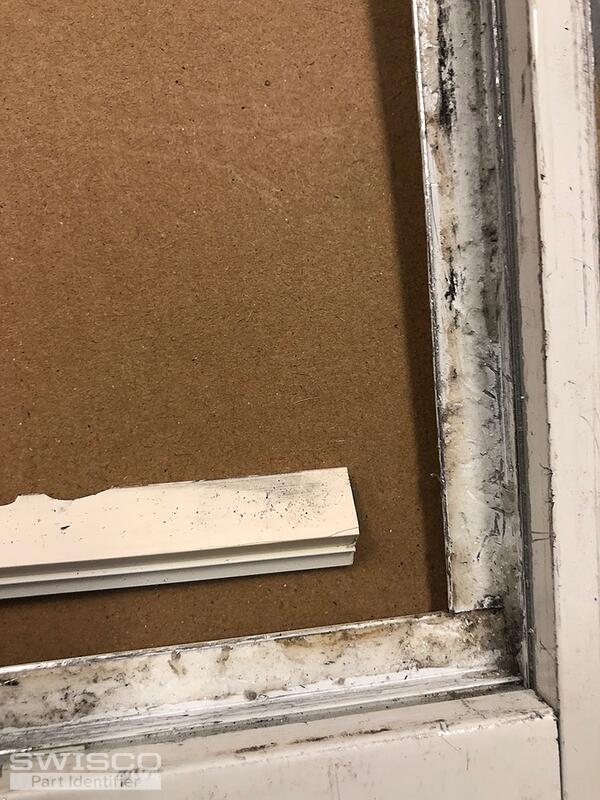

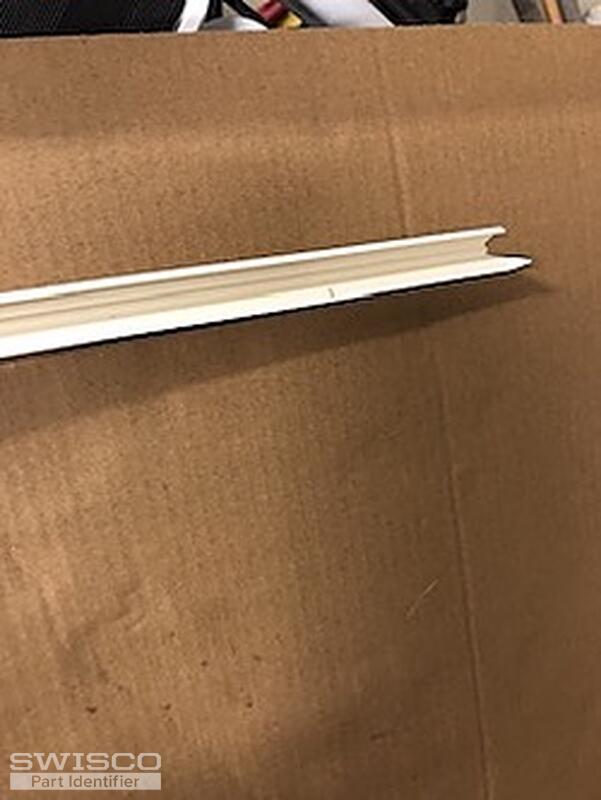

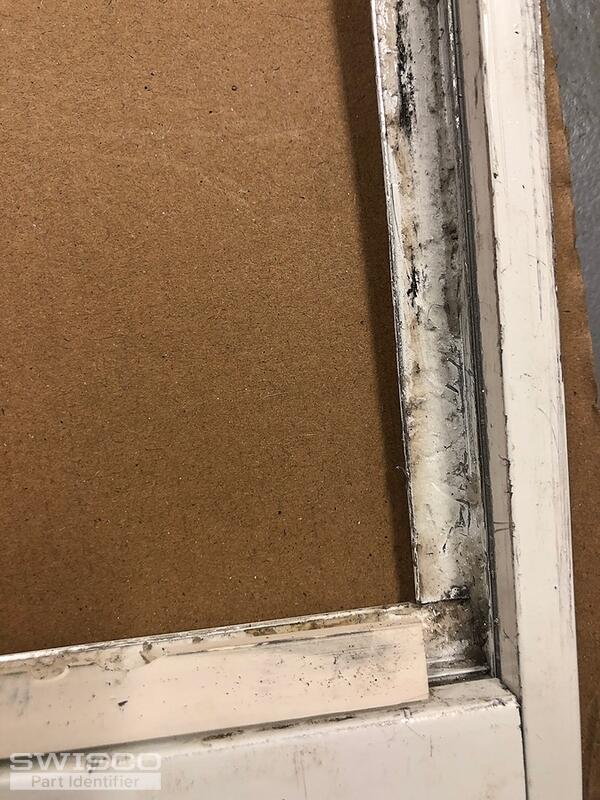

I'm sorry to say that I still can't identify what you have here just yet. We specifically need to see the end profile. You can use our glazing selection here as a reference for what we're looking for.

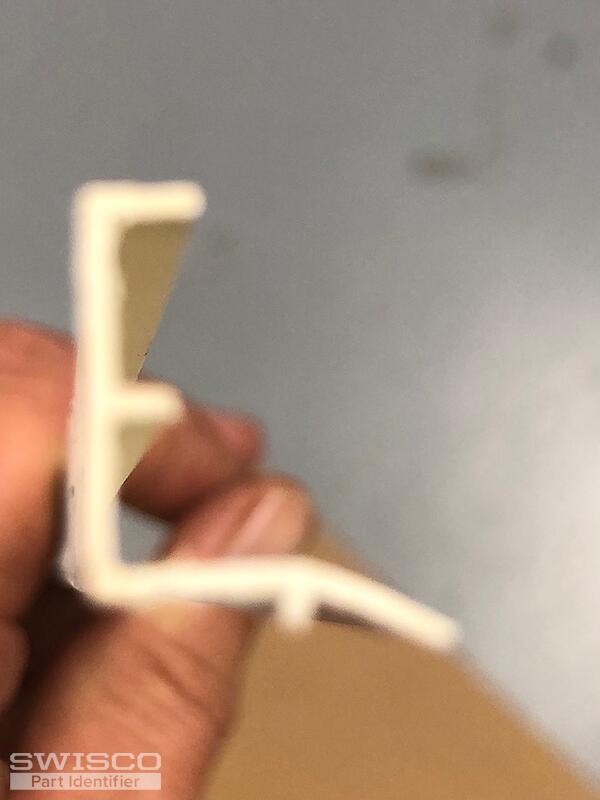

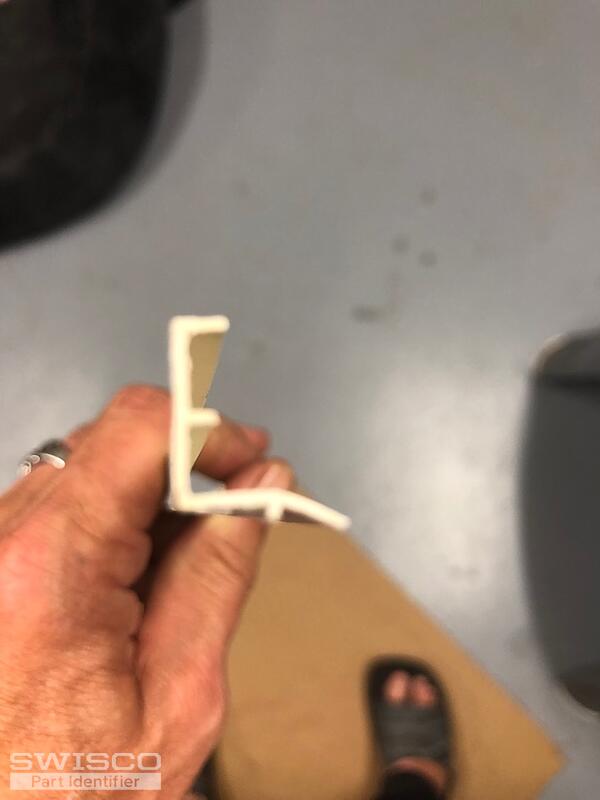

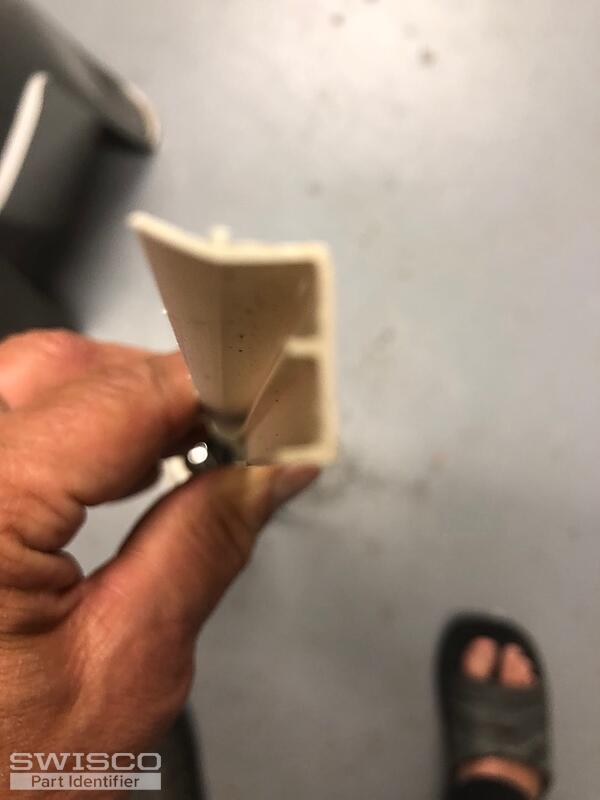

Unforutnately, we do not carry an exact match for your glazing bead but we've related our closest options on this page for you to review. I can't be sure if any of them would work for your repair but review the specifications shown on our product pages and see what you think.
