Windows hard to open and close

Quick Learner from Canada
Feb 5, 2024 3:26 pm
Our windows are hard to open and close. We have non tilt sliding windows. Attached is the stamp on the current channel balance.

The current balance seems to just be too strong for the weight of the sash.
Your help would be amazing.
Thank you,
Jordan
17071646207747108842151340944366
1 user uploaded images
3 Replies
Jasmine
Jasmine from SWISCO
Feb 6, 2024 10:51 am
SWISCO
EXPERT

Hello,

Thanks for posting! I am confident we have a replacement balance we can supply you with however, to be absolutely sure I'll need to see a photo of an undamaged balance removed from the window.

I am specifically looking to see a photo of the top and bottom plastic attachments from the balance. The stamp provided only indicates the weight range the balance can carry to support the sash. Unfortunately, we cannot use it to identify the exact series you need.

Please feel free to reach out with any other questions in the meantime.

Quick Learner from Canada
Feb 6, 2024 11:24 am

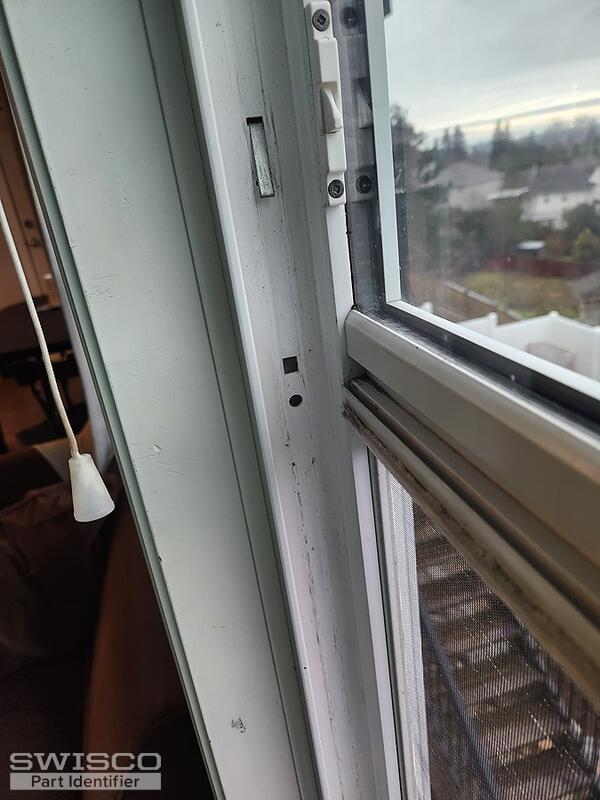

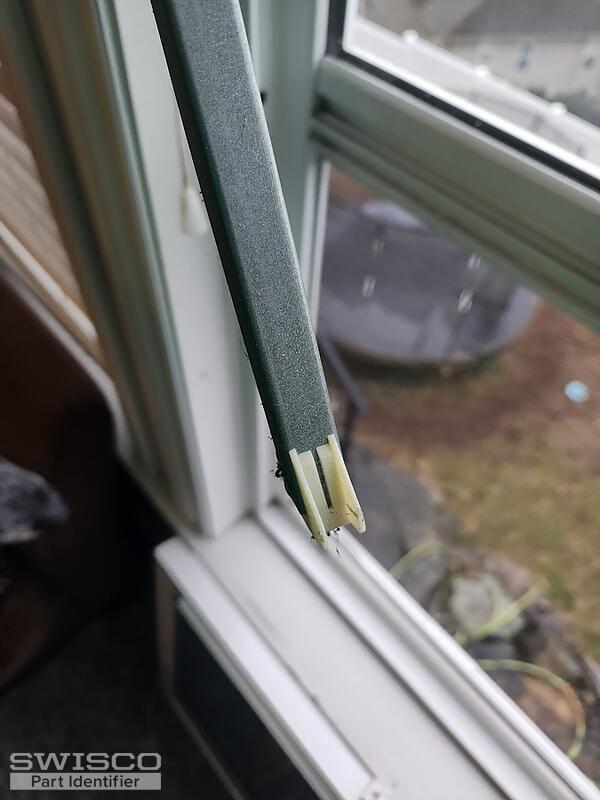

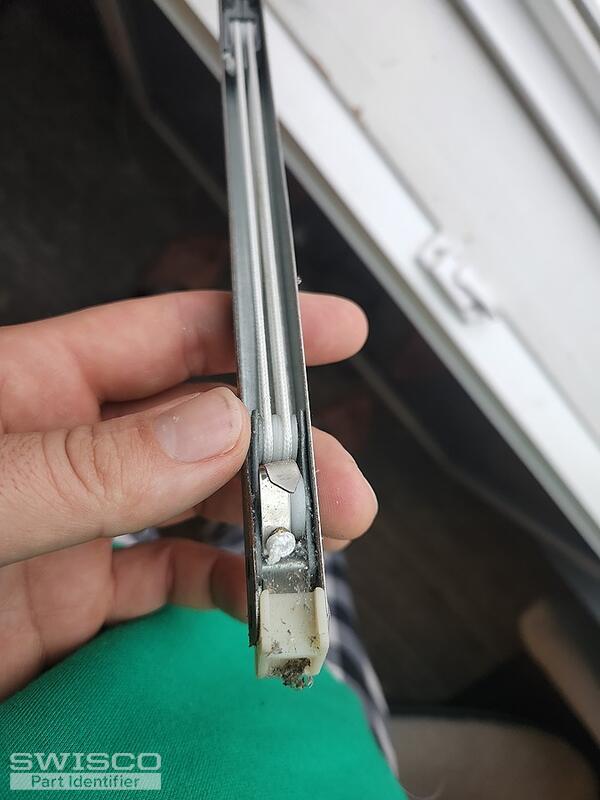

Thank you for the quick reply.. here are some photos of the current balances. These balances are 1/2" Wide.
20240206_082023 20240206_082033 20240206_082038 20240206_082052 20240206_082057
5 user uploaded images
Jasmine
Jasmine from SWISCO
Feb 6, 2024 12:01 pm
SWISCO
EXPERT

Thanks for the photos! It looks like you have either the S351-20 with a 1" shoe or the S390-20 with a 1-1/8" shoe. To determine which series is needed for your window, look over the dimensions from the diagram below to confirm the depth of your bottom shoe.

You'll need to select the 1930 stamp option.

The metal clip attached to the window frame is the 16-002 Take Out Clip.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
