bifold metal doors scrape on the track. Need replacement

A quick learner from Desert Hot Springs, CA says:

January 27, 2020

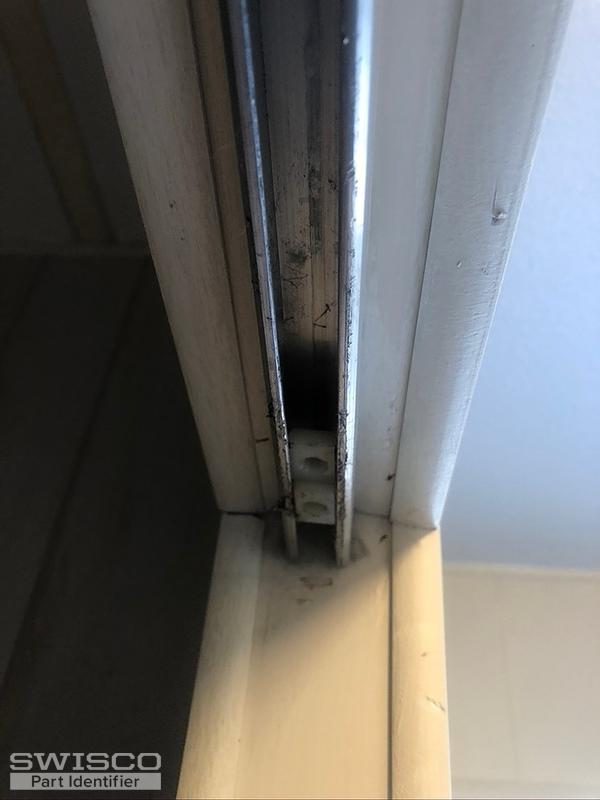

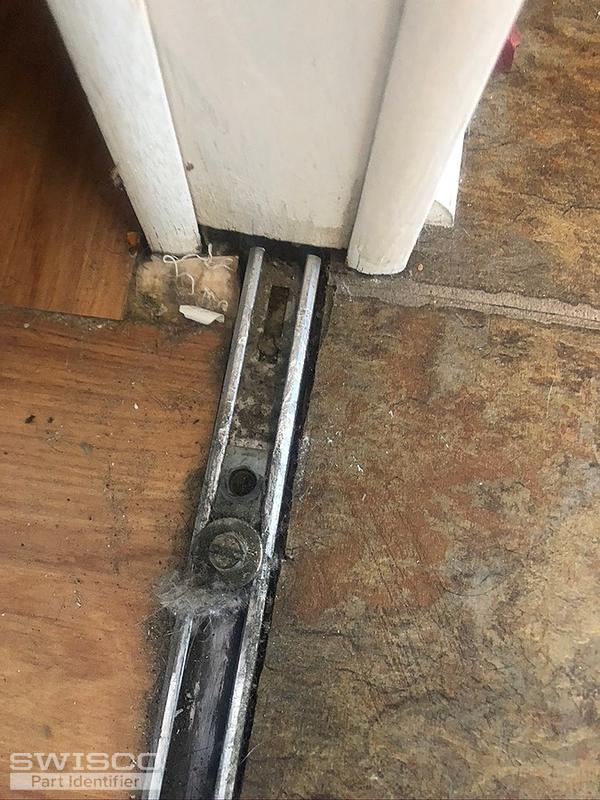

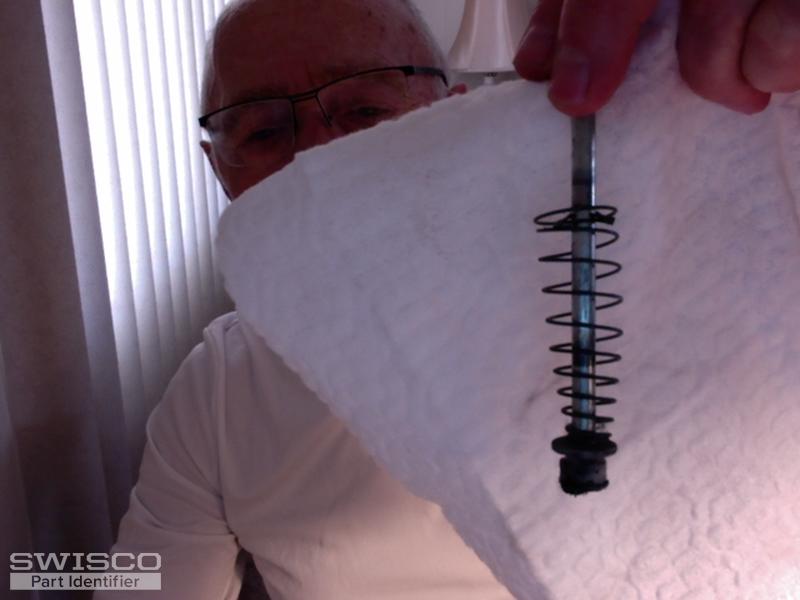

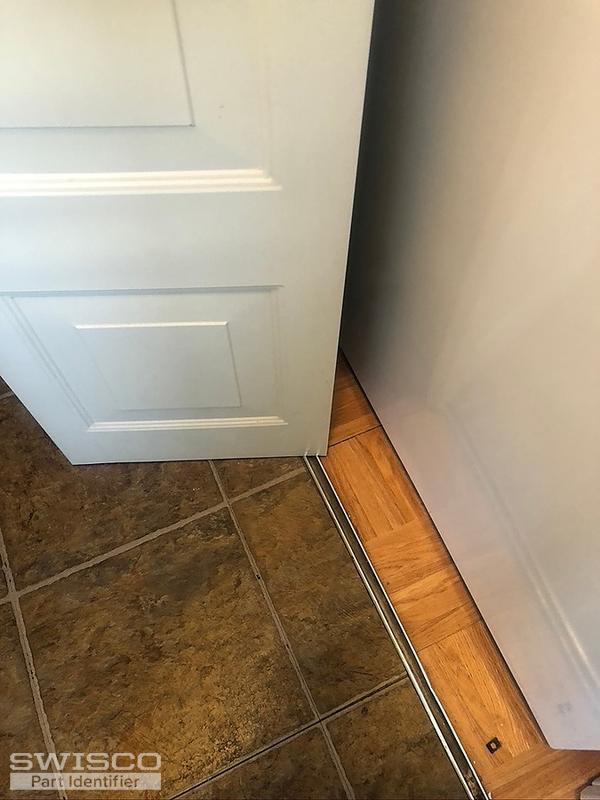

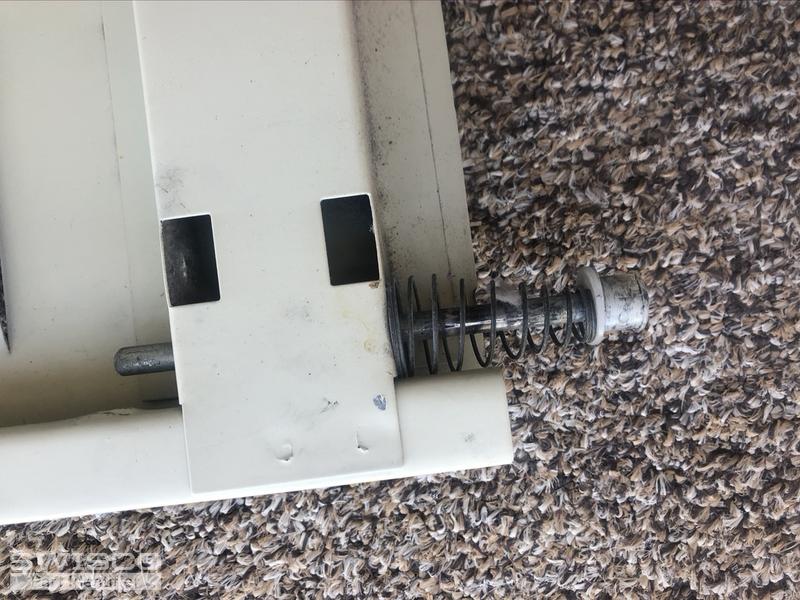

What do we replace? see photos.

Thumbnail of the uploaded file named webcam-1/27/2020, 1:47:15 PM.png

Thumbnail of the uploaded file named 0C8C71CB-FF1A-4735-A40A-C9350944A70A_1_105_c.jpeg

Thumbnail of the uploaded file named 19CAE203-1433-4A36-AE8A-87645889C08D_1_105_c.jpeg

Thumbnail of the uploaded file named E87B027B-3FFF-4F83-A16D-365819E4C27C_1_105_c.jpeg

Thumbnail of the uploaded file named 6975DE79-3F6B-4245-B354-8D0ACEF297DD_1_105_c.jpeg

Paul from SWISCO responded:

January 29, 2020

There are two options you can do here. You can either replace the nylon cap, our 21-103 or the complete pin, the 21-072 . You may also need to adjust the bottom threaded pin to raise the door to square up the door and keep it from scraping. Look these options over and let us know what you think.

Bifold Door Bottom Pivot, National

21-046

$8.18

Bifold Door Guide Pin, National

21-072

$5.25

Bifold Door Pin Cap, National

21-103

$1.02

Pivot bracket, National

21-204

$3.69
