coil balance

A handy person from Arkansas says:

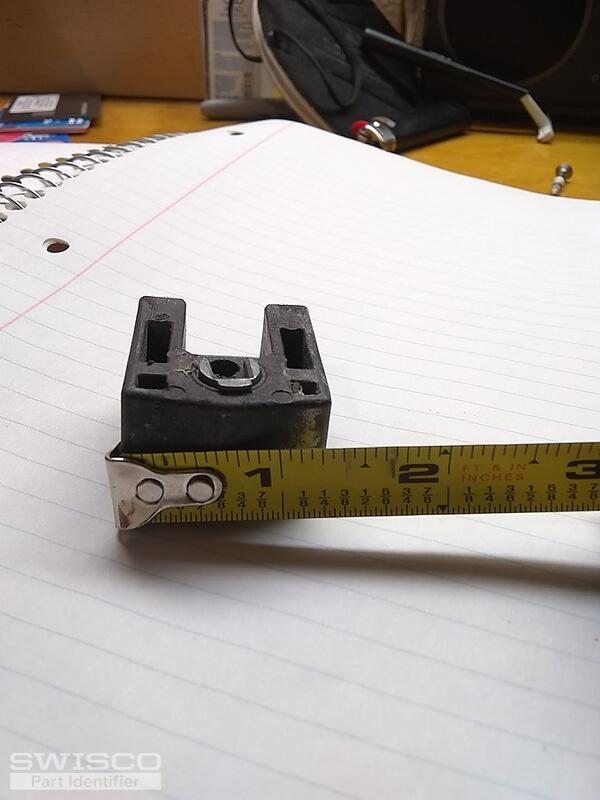

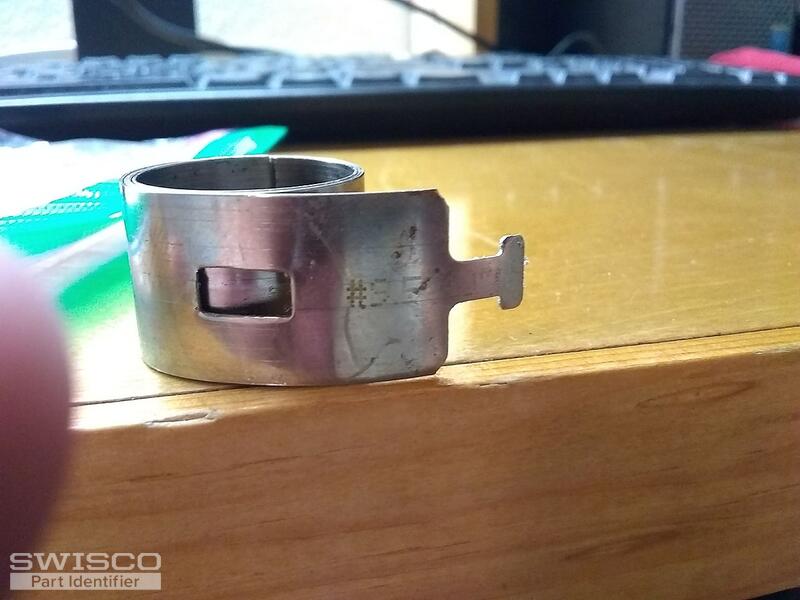

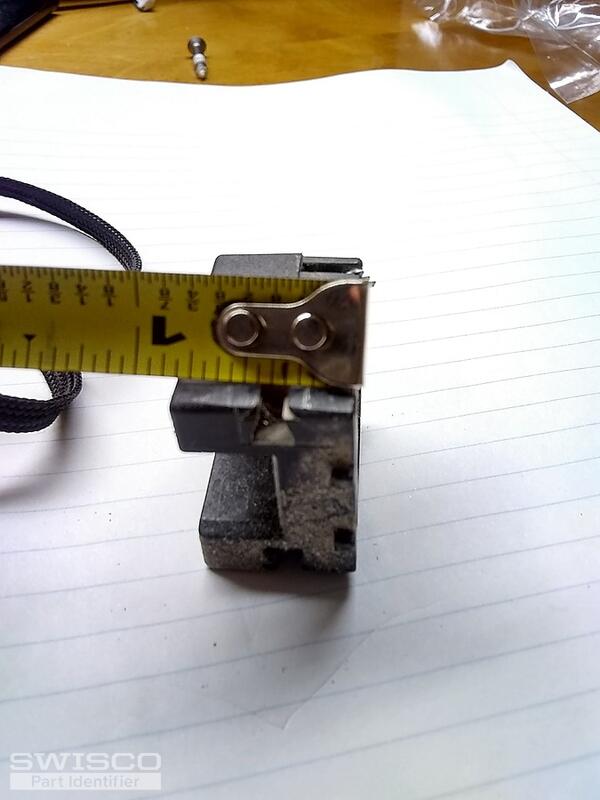

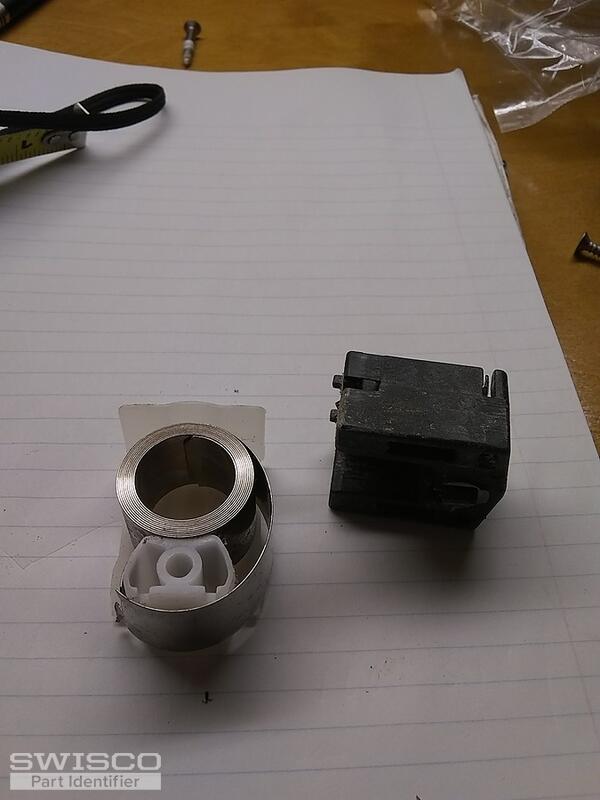

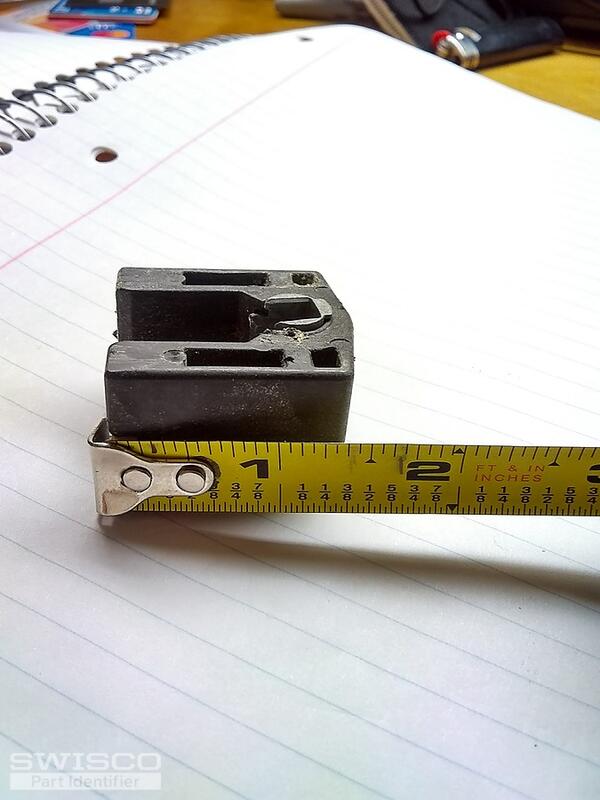

Hello, Please look at my pictures and tell me what I need. The spring marking is #9.5 40".
Thumbnail of the uploaded file named image000003 (24).jpg
Thumbnail of the uploaded file named image000002 (41).jpg
Thumbnail of the uploaded file named image000001 (71).jpg
Thumbnail of the uploaded file named image000000 - 2023-06-15T152419.272.jpg
Thumbnail of the uploaded file named image000004 (23).jpg
Profile picture of Emily
Emily from SWISCO responded:

Hi there!

Thanks for reaching out to us. Our 15-259 was the first part to come to mind. Based on the #9.5 stamp on the spring, you will need the S159-9 9.5-pound coil spring. Have a look at the specifications for these parts and see how they match up.

A handy person from Arkansas says:

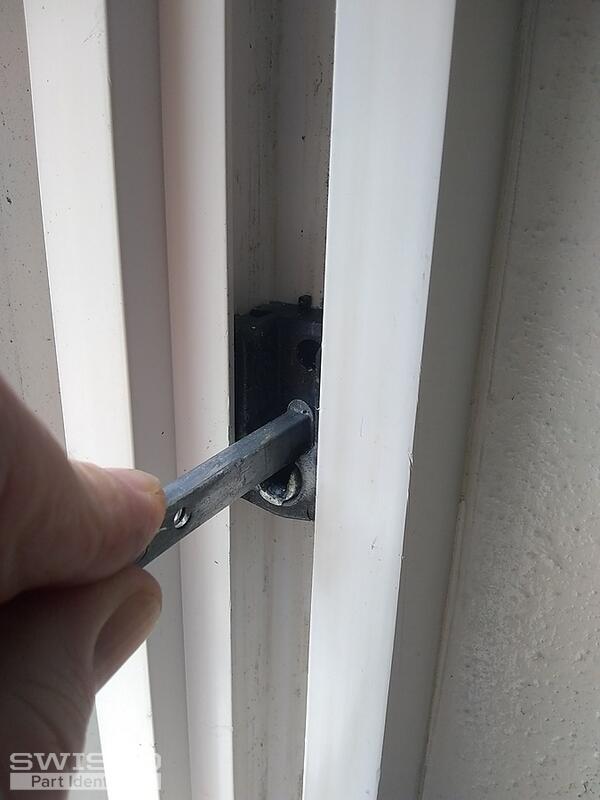

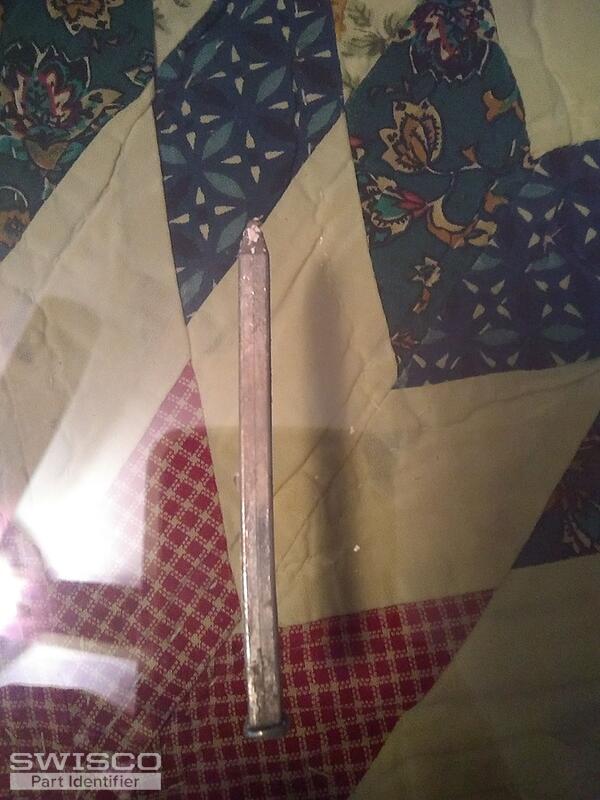

Customer is having trouble fitting his existing pivot bars into the pivot shoes that were recommended. He asked if there is anyway to make them work. He preferably does not want to have to pay shipping for another order if it can be avoided.

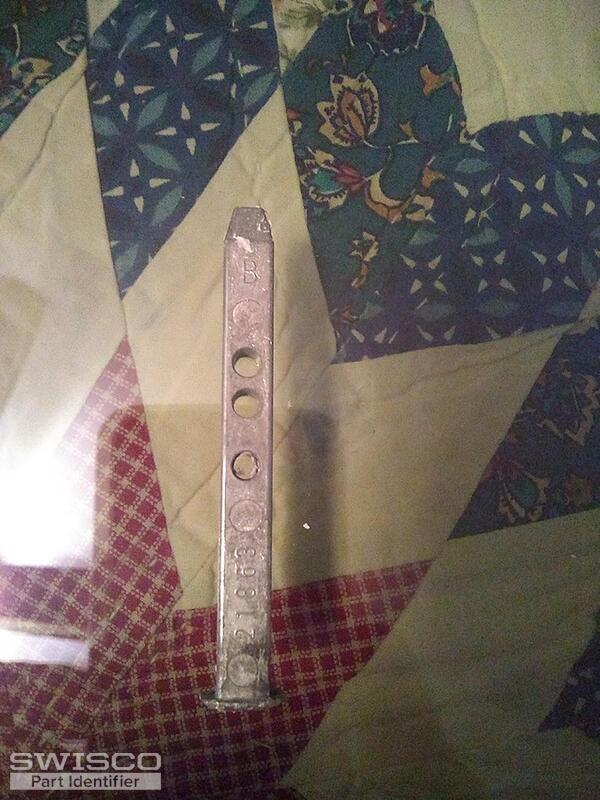

Numbers on pivot bar are 21863
Thumbnail of the uploaded file named image000000 - 2023-07-12T145615.100.jpg
Thumbnail of the uploaded file named image000002 (50) (1).jpg
Thumbnail of the uploaded file named image000001 (72) (1).jpg
Thumbnail of the uploaded file named image000003 (32).jpg
Profile picture of Emily
Emily from SWISCO responded:

That's odd. If your old pivot shoe's specifications match up with the 15-259 then the old pivot bar should have worked. I wonder if the cam size could differ. I'm not sure why the old one isn't fitting but this shoe traditionally uses the 26-083 pivot bar.
