Pívot part for aluminum window rod

Home Owner from New York
Jan 27, 2021 3:25 pm
Hi

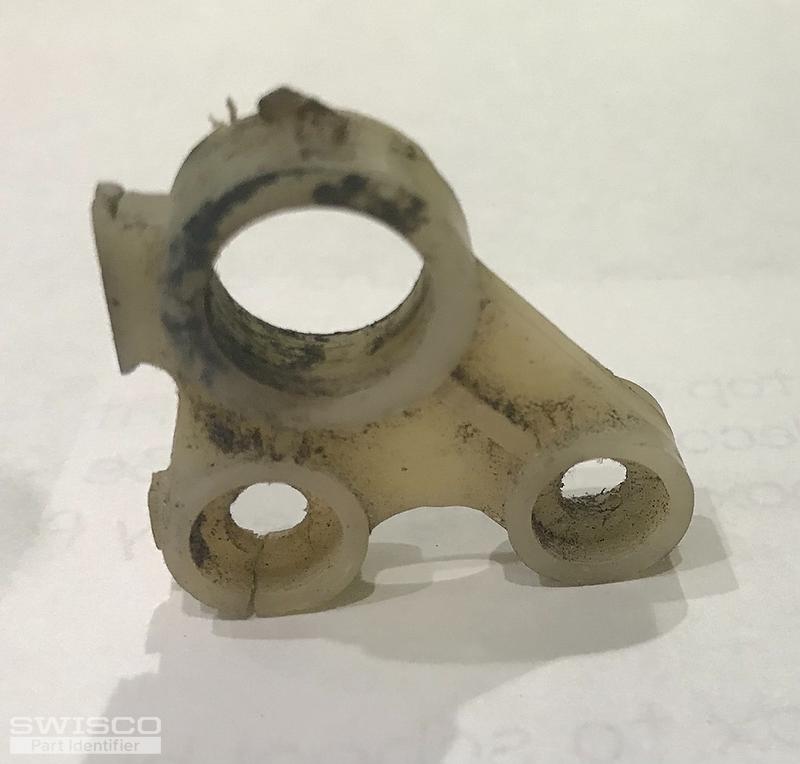

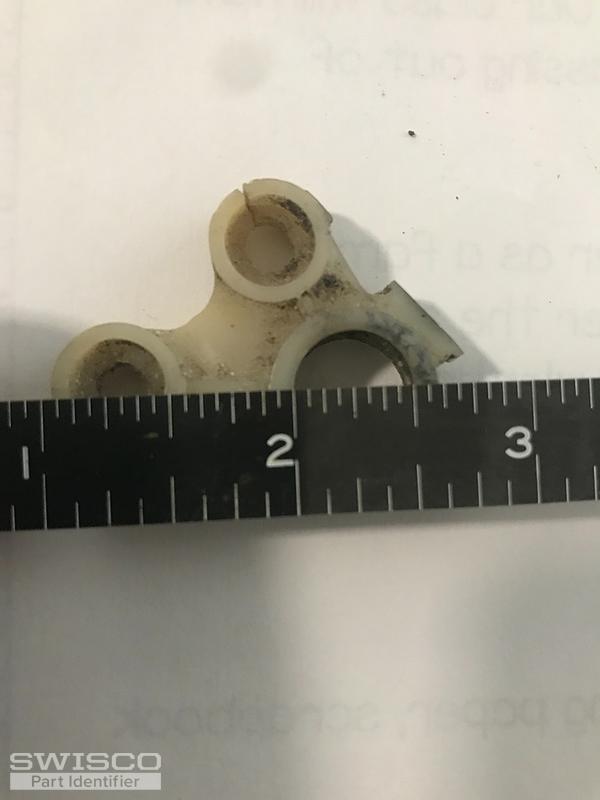

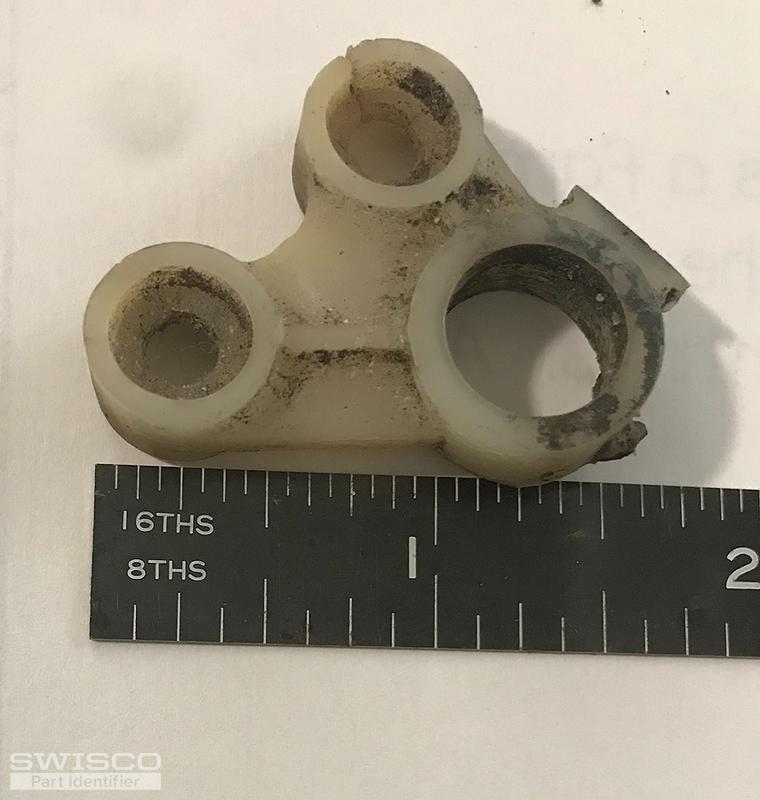

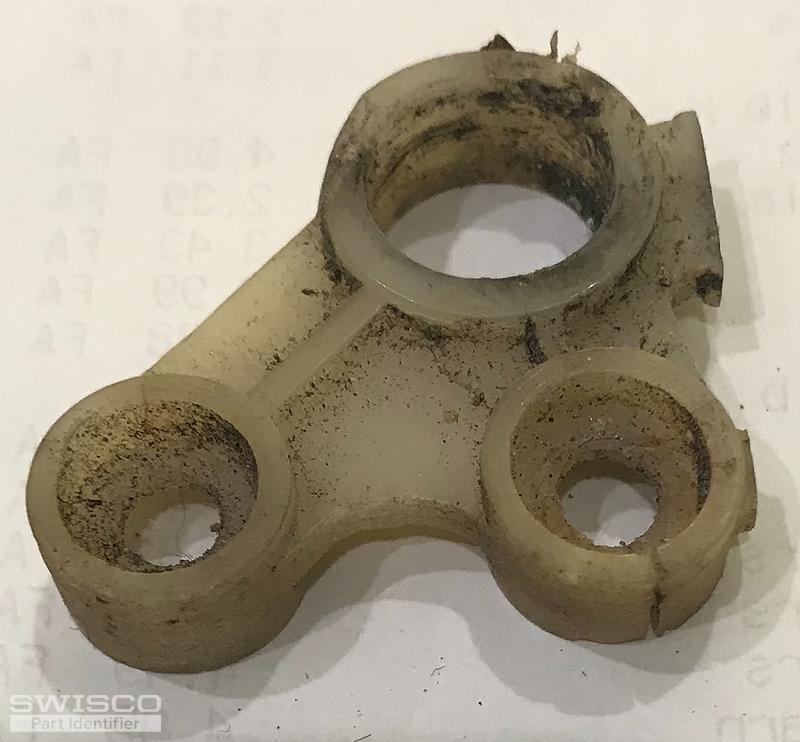

This part was removed from a double awning aluminum window with a crank system.

The part acts as a pivot for a rod that inserts into the larger hole. The smaller holes are for screws to anchor the part and secure to the window.

Can you please help me ID the part and supply it?
IMG_8945 IMG_8947 IMG_8948 IMG_8950
4 user uploaded images
2 Replies
+ Add a Comment
Home Owner from New York
Jan 28, 2021 8:36 am

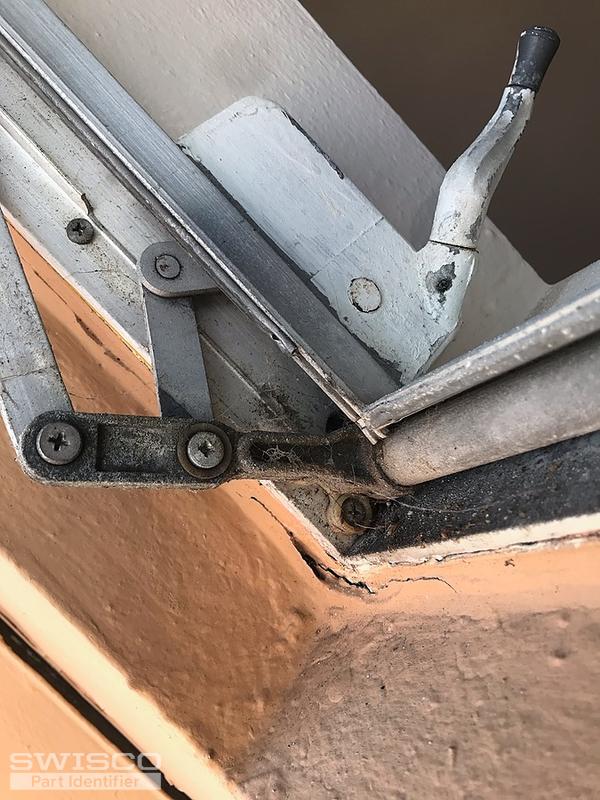

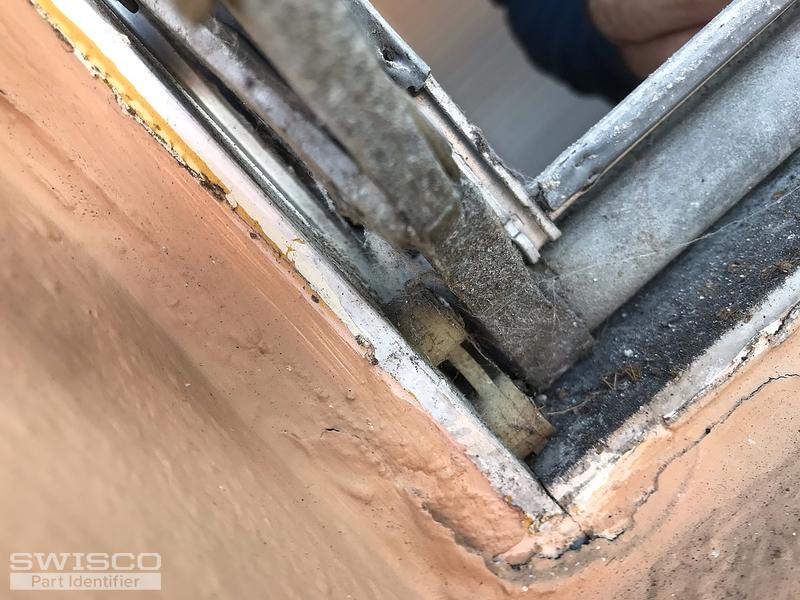

Additional pictures
image0 image2 (1)
2 user uploaded images
Tom
Tom from SWISCO
Jan 28, 2021 10:59 am
SWISCO
EXPERT

We don't have an exact match for this torque bearing, unfortunately. We do have a couple that are similar but I'm not sure if any will work, due to the evident differences. See our 36-018E, 36-018ACK, and 36-018G.

+ Add a Comment
Products and resources found in this discussion
Torque Bar Bearing, Neutral
Torque Bar Bearing, Neutral
36-018E
$2.53
Torque Shaft Bearing, 5/8"
Torque Shaft Bearing, 5/8"
36-018G
$2.10
Torque Shaft Bearing, 1/2"
Torque Shaft Bearing, 1/2"
36-018ACK
$1.97
