double hung vinyl window constant force balance shoe

Quick Learner from united states
Nov 16, 2021 4:05 pm
coil # 9 B J

PIN # 8

shoe # 6
Jeld Wen visions 2500
38x56 1/2
sequence 811 Batch 17308
date 3/6/2014
pivot bar 3 inche shoe deep shoe width shoe shoe2
5 user uploaded images
5 Replies
Quick Learner from united states
Nov 16, 2021 4:08 pm
tilt window
Emily from SWISCO
Nov 18, 2021 9:34 am


We believe your coil balance assembly is no longer made but we suggest you take a look at the 15-263 pivot shoe which uses the S195 and S196 coil springs. As for the pivot bar, see the 26-360 or 26-415. Look over the dimensions for each and compare them to your original hardware to see which one matches up best.

Quick Learner from united states
Nov 19, 2021 6:16 pm

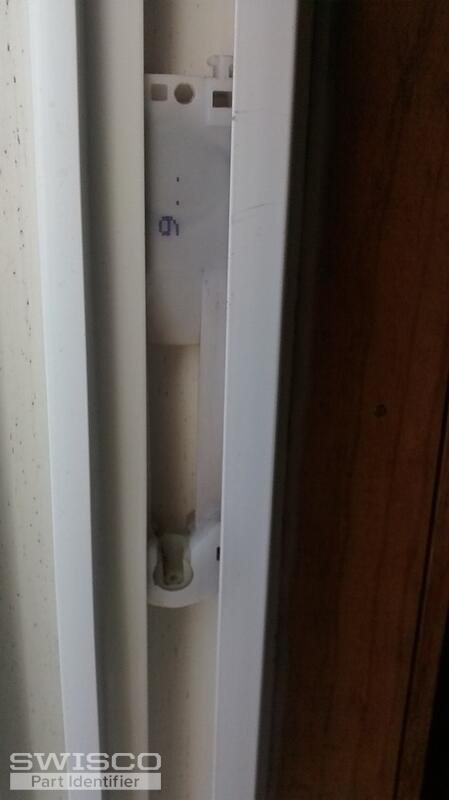

need the plastic casing the shoe and coil sit inside. the plastic casing has a # 6 stamp.

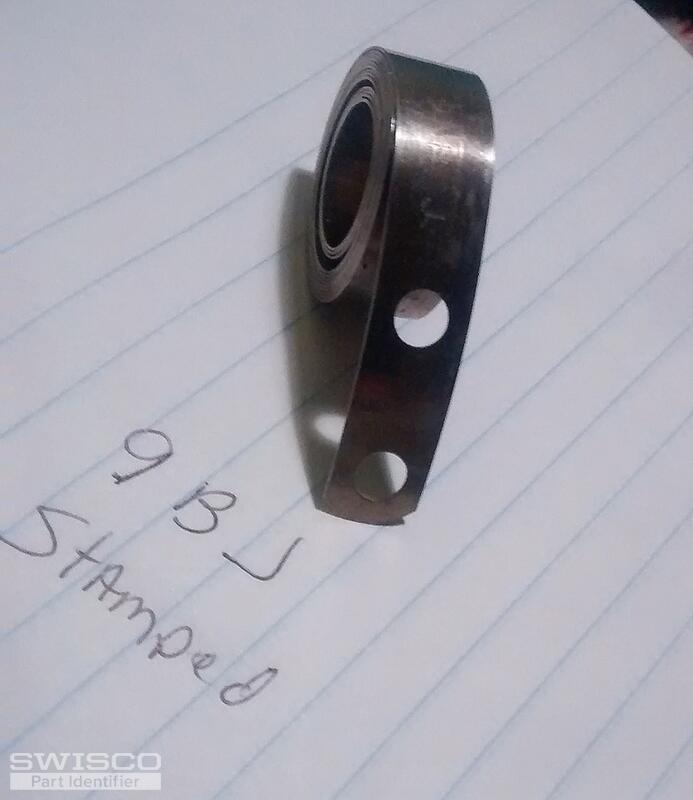

the coil has 9 B J stamped on it w/ two holes and rounded tongue. can i use the my coil?
Quick Learner from united states
Nov 19, 2021 8:49 pm
pics of parts needed
balance coil 2 balance coil # 6 backside plastic casing width 6
5 user uploaded images
Emily from SWISCO
Nov 22, 2021 10:52 am

If you need a compatible coil spring support, see the 15-260, 15-261 or 15-262, depending on the amount of springs you have. As for what coil weight to select, weigh your sash on a scale and tell us the exact weight. We can work out what you need from there.
