handle and cover for right and left hand

Contractor from Pueblo Colorado USA

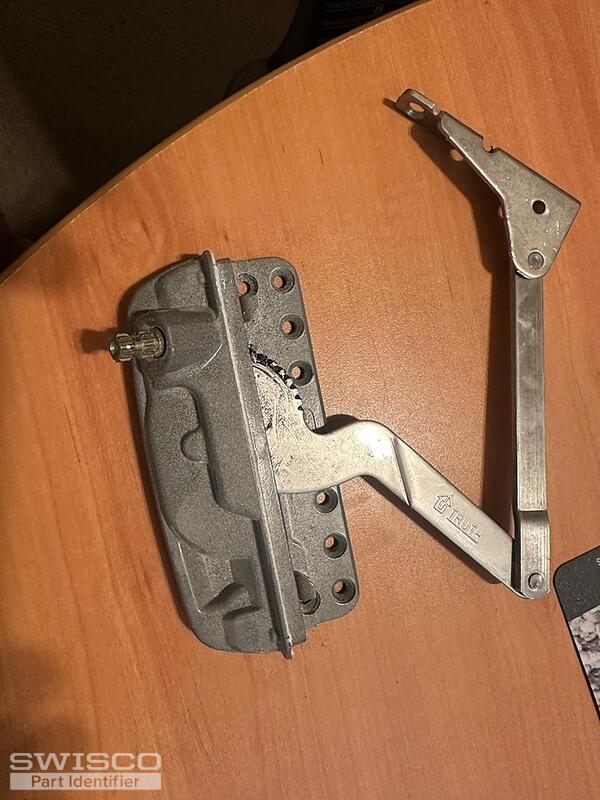

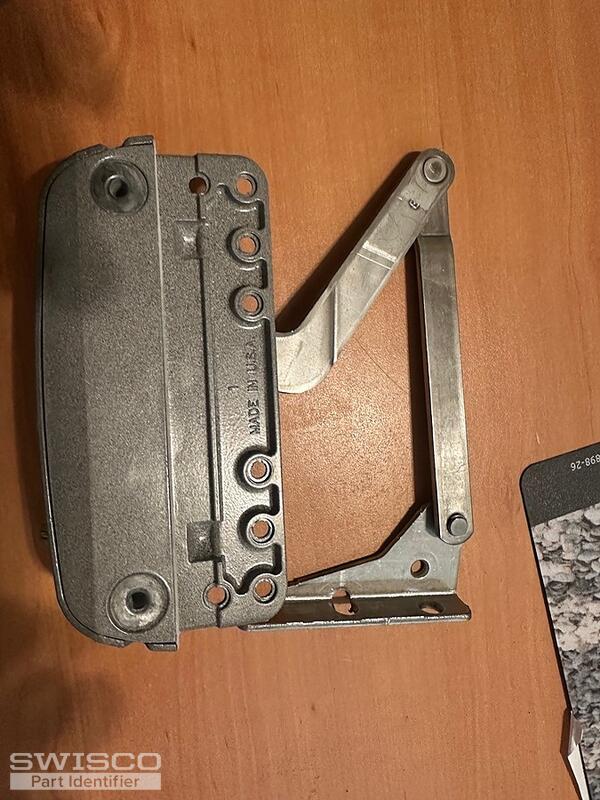

I need a replacement handle and cover for both right and left hand due to damage from installer. i am unable to locate it on your web site. Milgard Series: V300-47 Code: mg-15

Thanks

5 user uploaded images
4 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

Your operator resembles our 39-220B and 39-221B at first glance. The determining factor would be how the specifications below compare to yours. If it's a match, we also offer the 39-375 and 39-376 handle and cover kits used with these operators. Take a look and thanks for posting!

Detail of 39-220B
Detail of 39-220B

Width measurement
Width measurement

View of the handle extended
View of the handle extended

Side view
Side view

Home Owner from Laguna Niguel, Ca.
The pictures the contractor posted are for a milgard V300 Trinsic style window, which is quite new on the market. The part numbers you list Casey, are for the Tuscan Styleline of window. These two operators and cover are different. If you have or know of a place where I can get an operator and cover for the V300 Trinsic casement window, I would be very appreciative.
Casey
Casey from SWISCO
SWISCO
Expert

The operator shown in this thread is our 39-220B and 39-221B with stainless steel arms. We can supply them but we are still waiting on the cost from our suppliers. Just let us know how many operators you need for each side and we will work on getting a price quote together for you. I would also recommend confirming if the link arm of your original operator matches the 4-7/8" dimension shown in our diagram.

Detail of 39-220B
Detail of 39-220B

You may be able to use the original operator brackets. If not, let us know and we can look into getting the stainless steel version of that part as well.

Unforutnately, we are not able to supply an exact match for the folding handle and cover shown in the photos above but our 39-375 and 39-376 should still work despite the different style.
