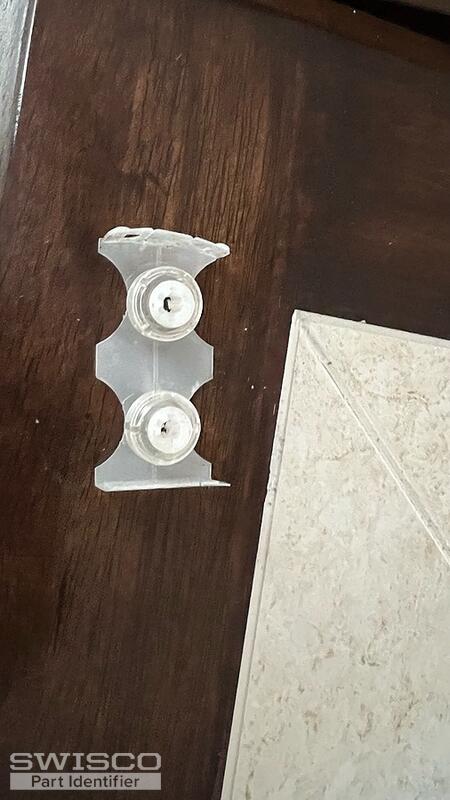

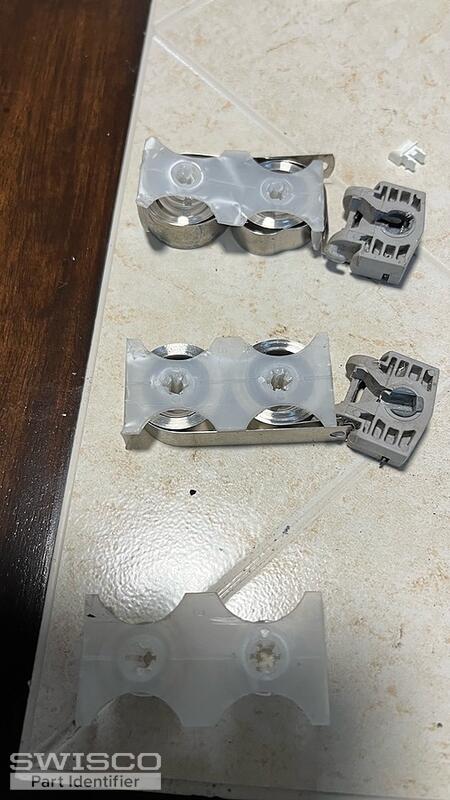

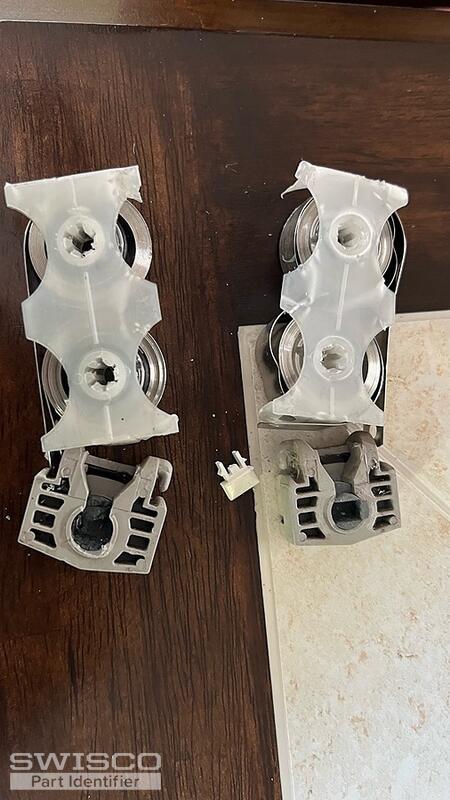

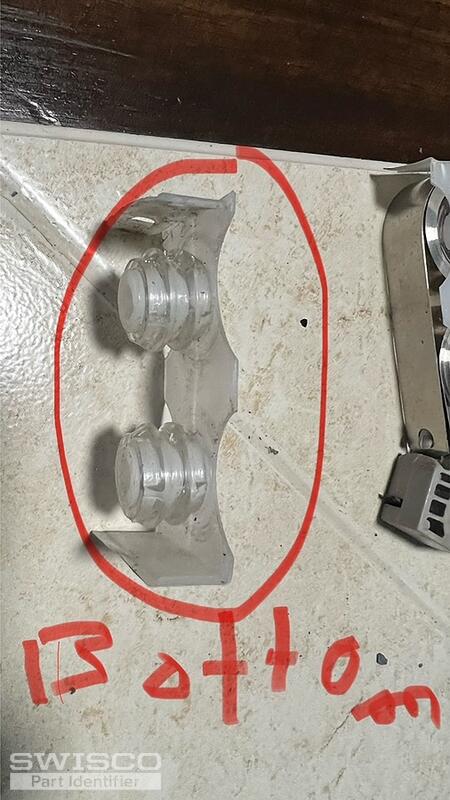

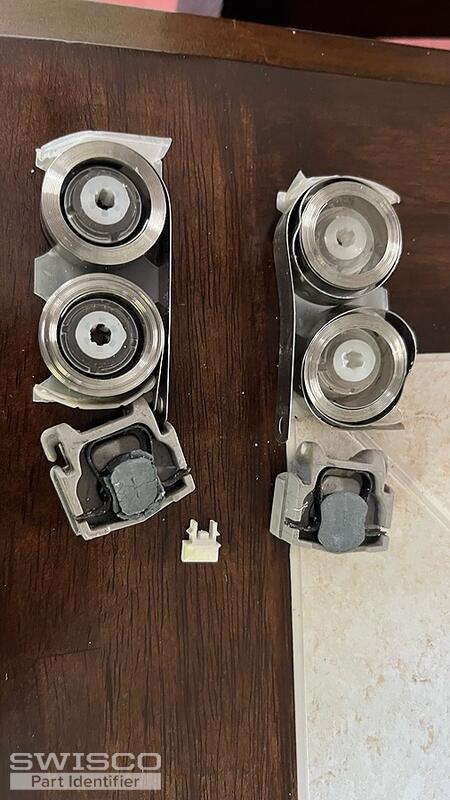

The pivot is connected with both springs end only at one side. Both springs are hooked at one side of pivot.
the other side of pivot is open.
Is that is correct?
Hello,
Unforutnately, we do not carry an exact match for the pivot shoe shown in your photos. With that being said, yours is a similar style to the 15-191, which works with the Series 160 coil springs. Your spring looks like it attaches differently that our replacements though. Instead of installing in the shoe with tabs, it hooks in that little prong at the top. I think you could still use our 15-191 and S160 coil springs but keep in ming that you would have to replace both the coils and the shoe. You'll also need to weight the sash to determine the correct strength options for your new coil springs. Thanks for posting.
