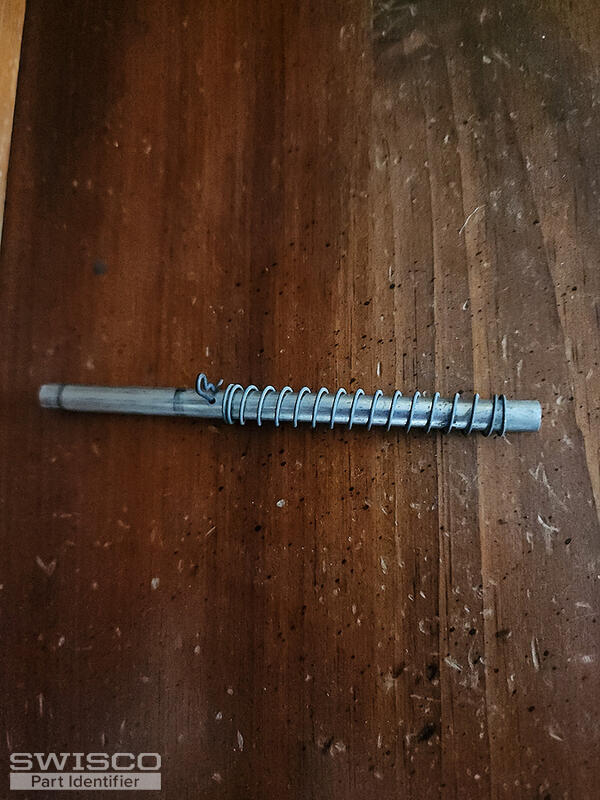

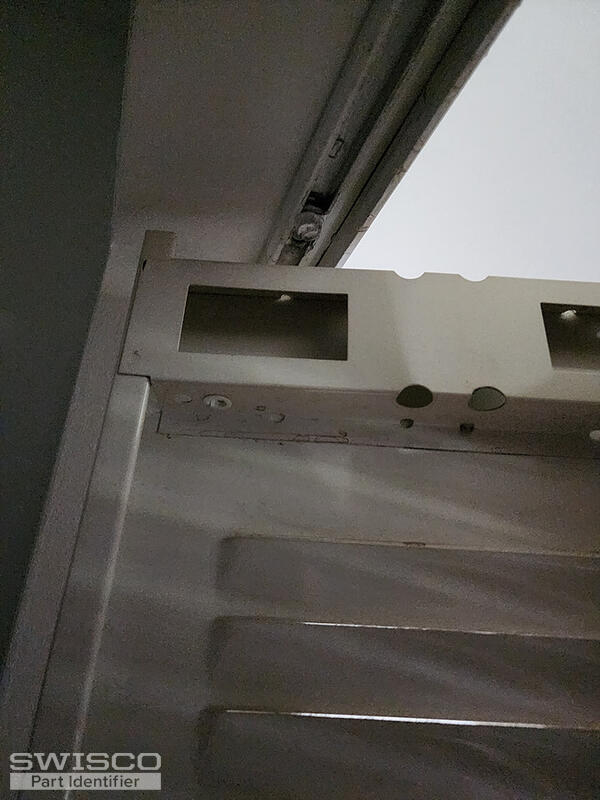

No markings on any of the parts, unknown maker of the metal bi-fold door. Removed pin not knowing pics needed before removal. Pin in pics is 5 1/4" long x 1/4" diameter. Spring and cotter pin were on it. Plastic gasket in bottom and top of door holes (may be nylinders?) No plastic cap on top of pin when removed. Need recommendation on replacement parts (Leigh?)

5 user uploaded images

4 Replies

Paul from SWISCO

Sep 28, 2023 9:08 am

You indeed have an old Leigh bi-fold door. The pin you are showing is the top pivot pin. There should be a bottom threaded pin like the 21-062 for the door adjustment. The other two pins will be the top and bottom spring-loaded guide pins, the 21-058. You are correct on the cylinders, the 21-150 act as bushings for the pins to slide through the door holes.

Home Owner

Sep 28, 2023 3:05 pm

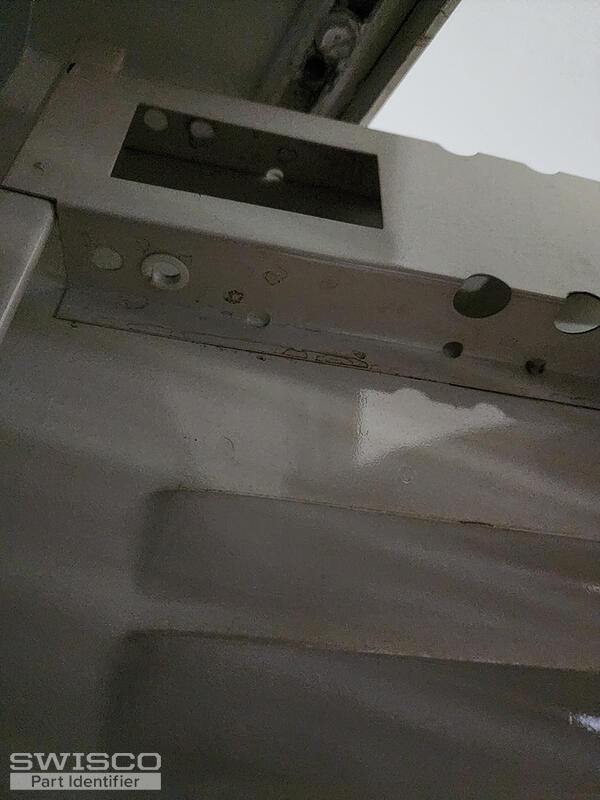

Probably should have been more specific. The pin to be replaced is the top pivot pin on the right side door. Should I get the 21-054 or the 21-058 and do I need 2 new nylinders? Also, need info on how to install the new pin considering it is somewhat boxed in (see pic, looking from the bottom up).

1 user uploaded image

Paul from SWISCO

Sep 29, 2023 3:44 pm

Thanks for getting back to us. I believe you can use the 21-054 and two 21-150 nylinders on your door. You might have to knock off the top nylon cap to fit in the track bracket, though, so keep that in mind.

First, install the two nylinders in the door hole openings. Fit the spring in the door cut out and push up the pin through the holes and spring with the hole for the cotter pin near the top. Place the cotter pin through the pinhole with the spring below it. When you do that, you're putting spring tension on the pin to lock in the top track bracket.

Hopefully that works out. Let me know how it goes!
