latch

Landlord from Michigan

May 11, 2024 6:21 pm

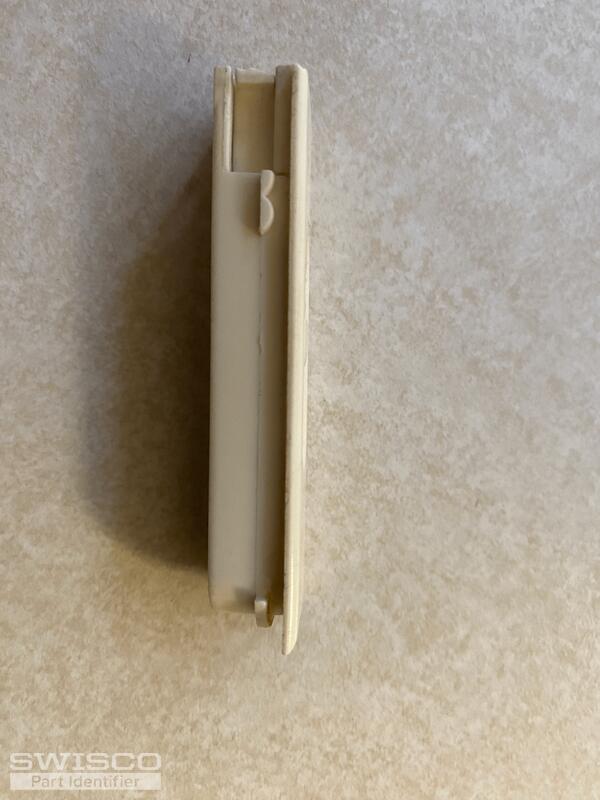

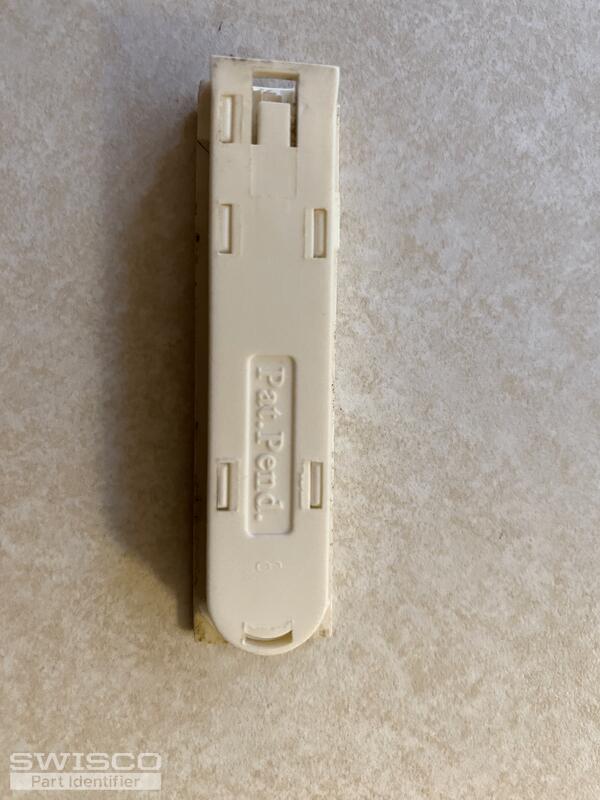

The bottom says Pat. Pend. The piece is about 2 5/8" long and about 11/16 wide. It looks like it sits about 3/8" deep into the window.

tempImageKrtarn

tempImageTRxMjw

tempImagewaCRsx

tempImageeKAjCq

tempImagePLQz8X

5 user uploaded images

3 Replies

+ Add a Comment

Casey

Casey from SWISCO

May 13, 2024 11:31 am

SWISCO

EXPERT

Hello,

We'd be happy to look into this for you but we would need to see a tilt latch with an intact locking tooth to narrow down your options. I would also recommend double-checking the length of the base to confirm if it is 2-5/8" or 2-3/8". Thank you!

Landlord from Michigan

May 14, 2024 8:47 pm

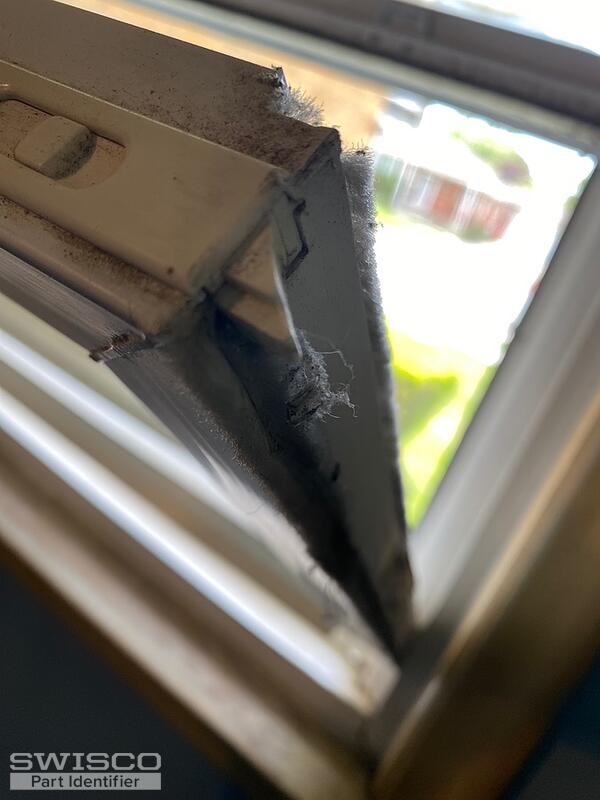

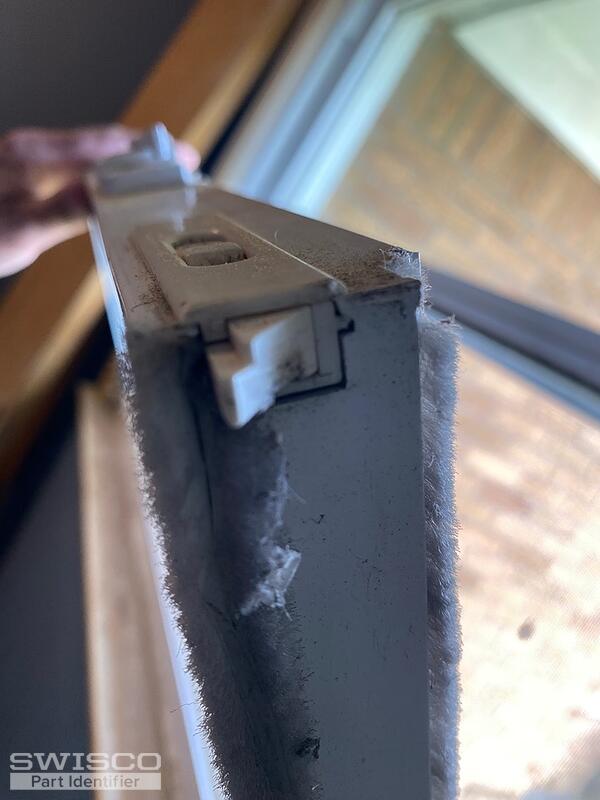

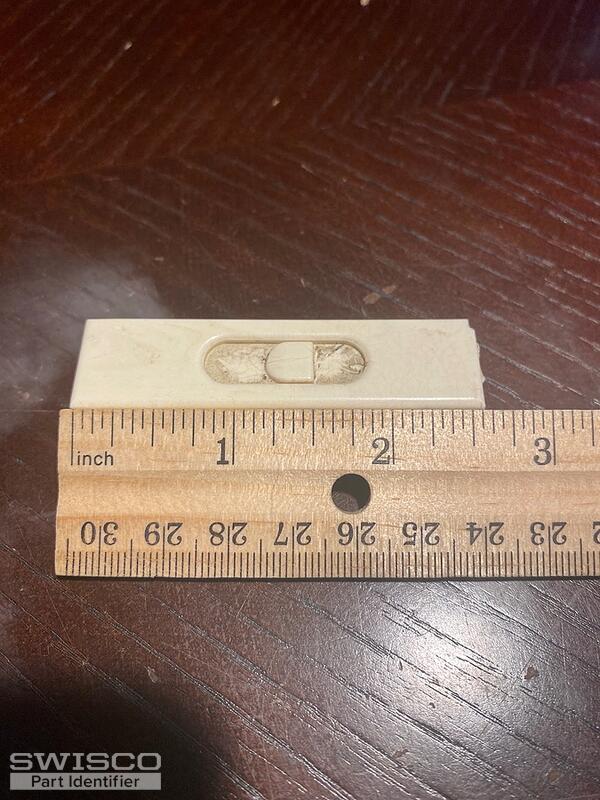

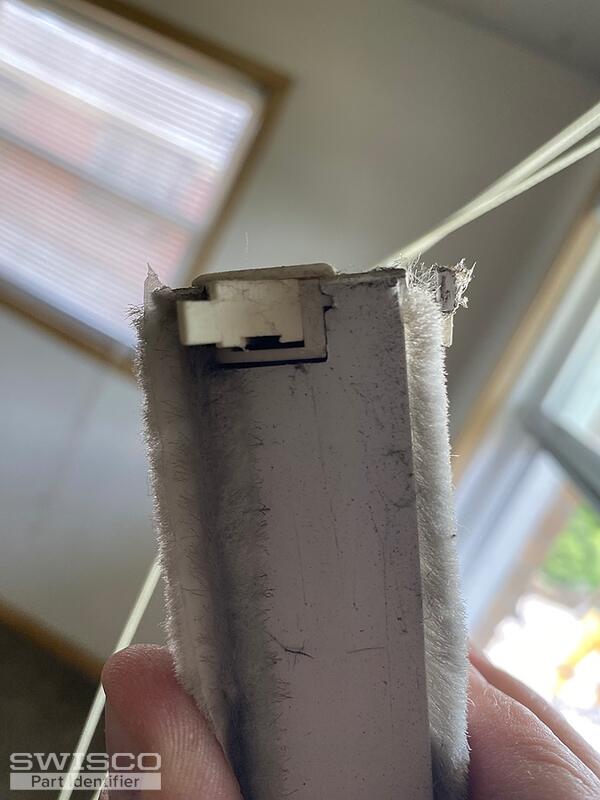

The body is 2 5/8 (not including the part broken off). hopefully these pics help. Thanks.

4 user uploaded images

Casey

Casey from SWISCO

May 15, 2024 8:09 am

SWISCO

EXPERT

In that case, I'd recommend taking a look at the 26-243 and 26-244 tilt latches. We'll include the dimensions from our product page below. Look them over and see what you think.

Alternate view of 26-244

Alternate view of 26-244

Profile view of 26-244
