looking for this balance

Quick Learner from New Hampshire

Nov 1, 2021 2:44 pm

I need new balances.
I didn't see anything relevant on your channel balances page. But I did an independent Google search to find this very relevant thread:
https://www.swisco.com/discussions/Parts-for-Loewen-Window-77-116912

* The upper sash weighs 28.5 LBS.

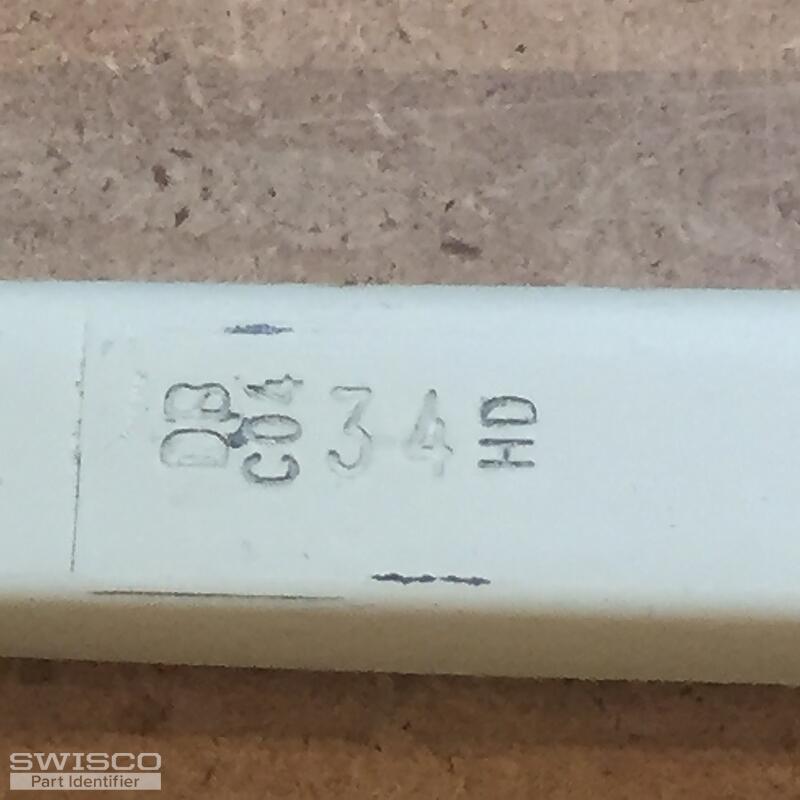

* The stamp reads "DB-C04-34 HD"

We'd like to purchase 2 sets ? i.e. to fix this window and have a spare set for future repair.

Can you supply pricing and lead time to NH 03244?

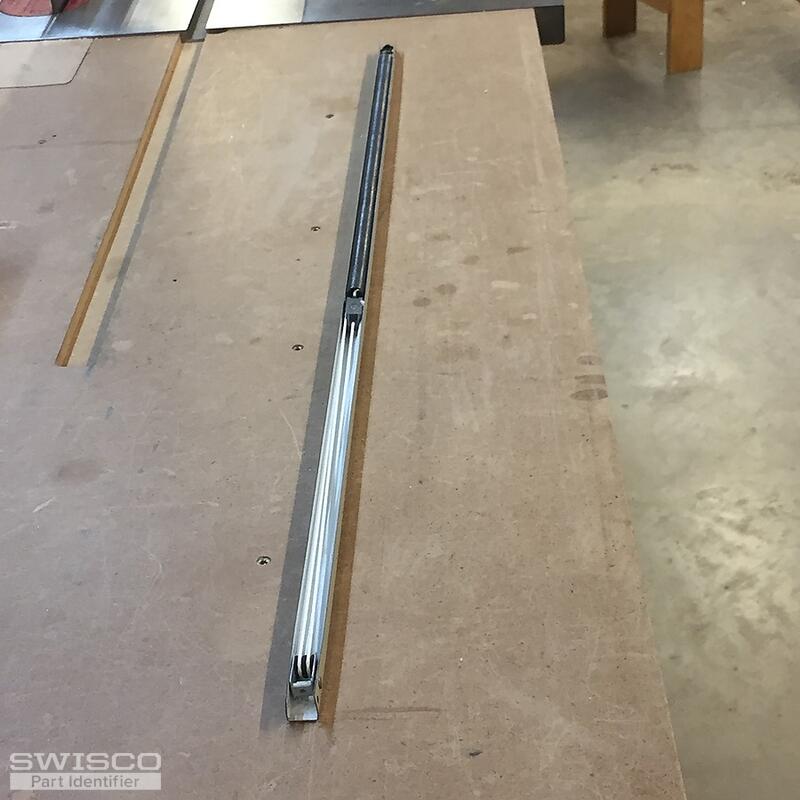

3 user uploaded images

4 Replies

Emily from SWISCO

Nov 4, 2021 1:36 pm

Hi there!

Can you show us a picture of the attachment at the end of this balance? That will help us determine which of ours you will need.

Thank you!

Quick Learner

Nov 12, 2021 12:31 pm

Additional pictures requested.

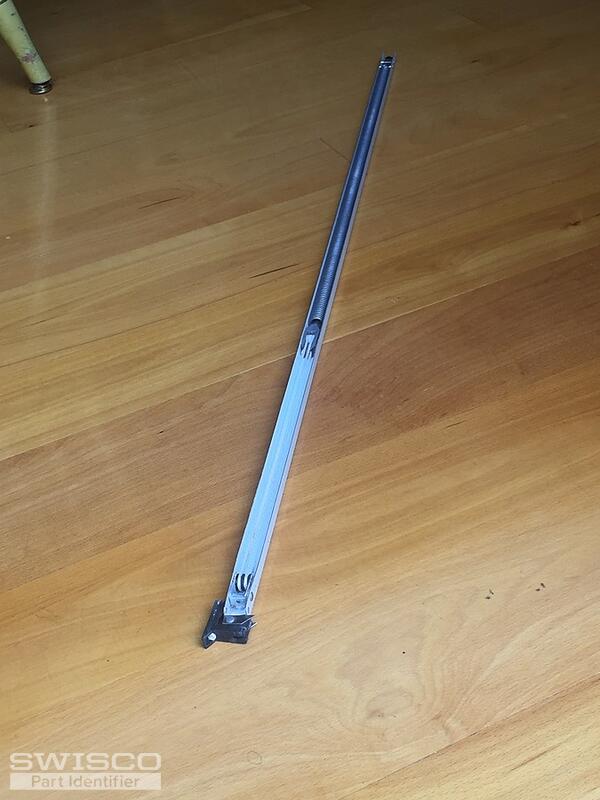

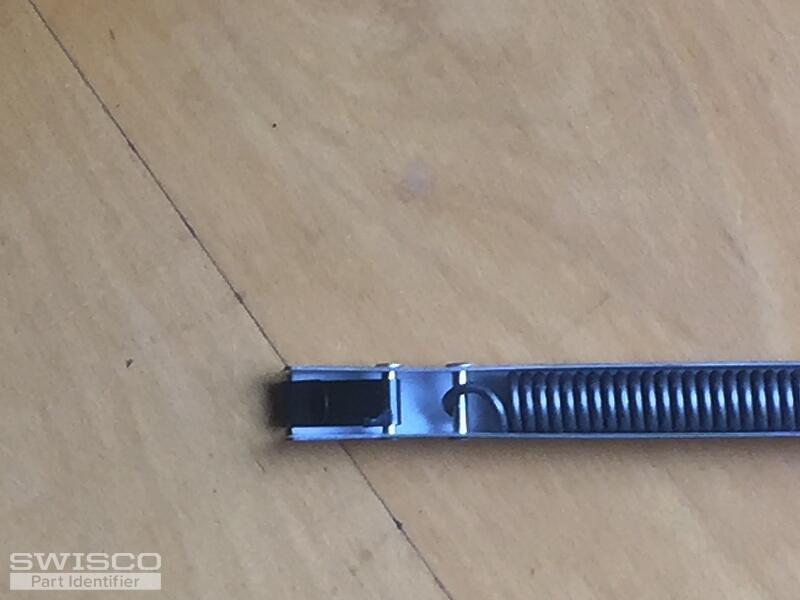

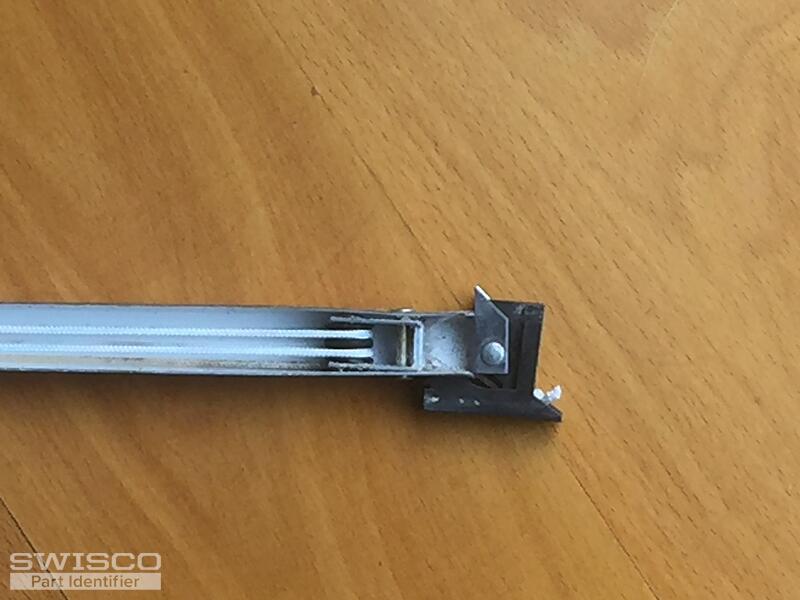

3 user uploaded images

Emily from SWISCO

Nov 15, 2021 8:47 am

Thank you! Your balance resembles our S751-35 channel balance, which uses the 15-014 knife lock shoe. Your shoe appears to be the same as this but we suggest comparing dimensions to confirm. You'll also need a 34HD stamp option for these balances.

If you have any questions just let us know!
