mirror door

Quick Learner

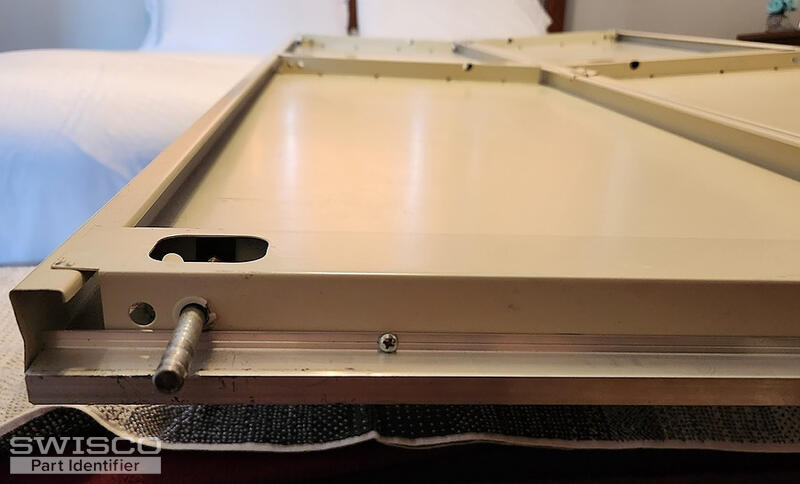

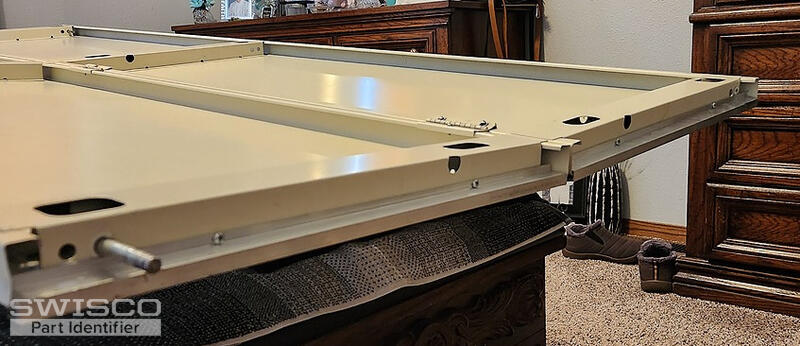

what do I need for bottom of my mirror door
2 user uploaded images
15 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hello there!

Thank you for reaching out to us. We'd be happy to help with this project but we'll need more information to help narrow down your replacement options. Can you write out the diameter of the pin shaft and the diameter of the nylon cap, where it fits into the track?

Quick Learner
Pin OD .25"
Bushing .33"
At bottom of the door
Emily
Emily from SWISCO
SWISCO
Expert

We appreciate you getting back to us! We're still looking into this and will reach back out as soon as we have more information. Thank you for your patience!

Paul
Paul from SWISCO
SWISCO
Expert

Are you looking for the 21-205 pivot bracket for your bottom door track? Look this over along with the other parts we've related for you on this page to see what you think.

Quick Learner
What do I need for top door also
Paul
Paul from SWISCO
SWISCO
Expert

I can't be sure without photos, I'm afraid. May we see photos of the top hardware you're looking to replace?

Quick Learner

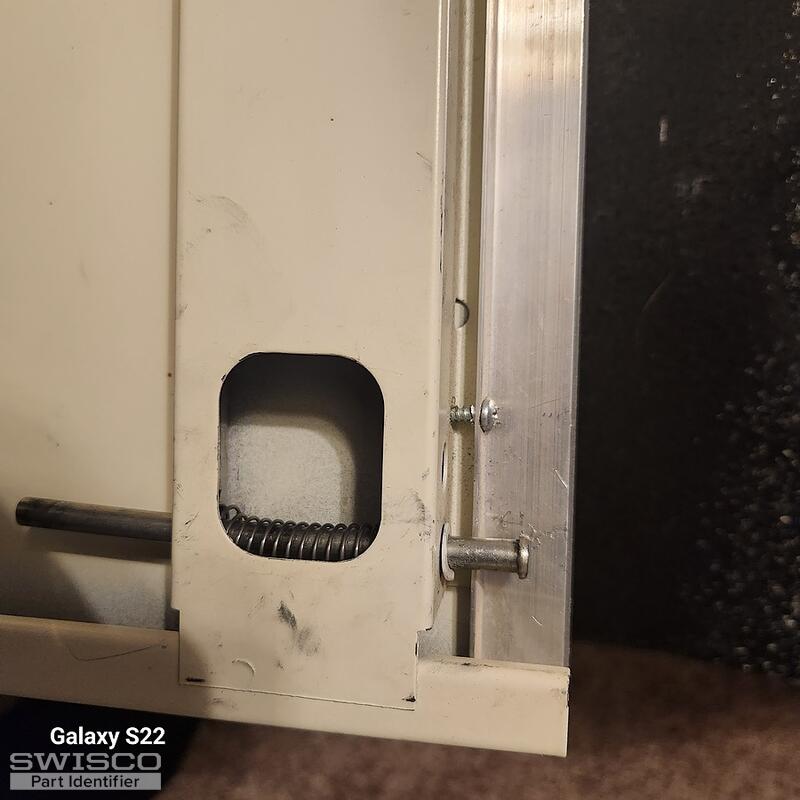

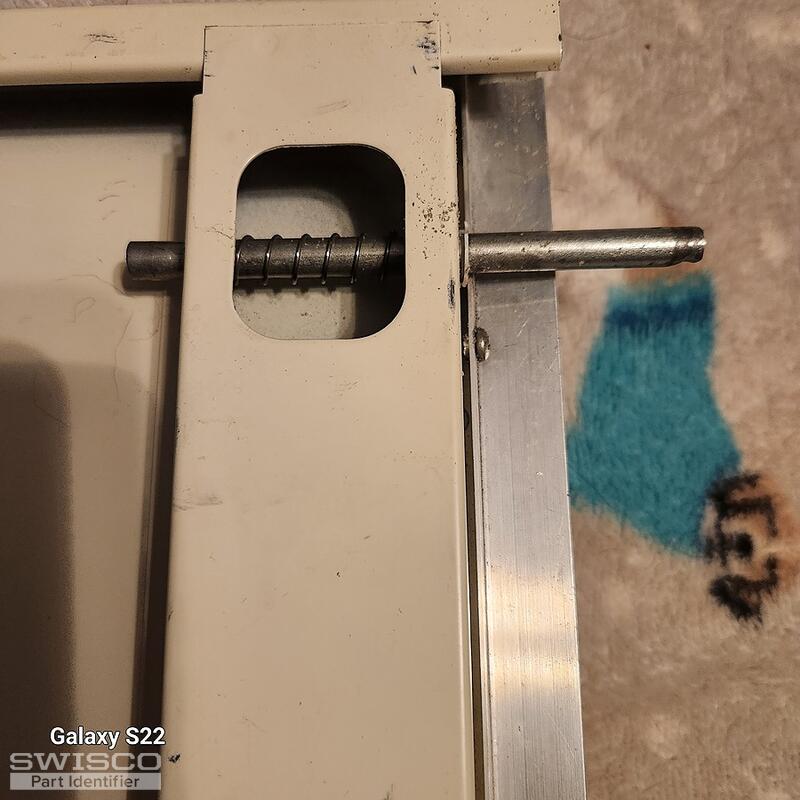

2 user uploaded images
Paul
Paul from SWISCO
SWISCO
Expert

The pin in your first photo would use the 21-108 nylon guide and the other pin would be a pivot pin that fits into the 21-205 track bracket.

Quick Learner
So I need 2 pins on top door that are same
Paul
Paul from SWISCO
SWISCO
Expert

I'm sorry but I'm confused. In your opening discussion, you wanted the fittings that the pins fit into which would be the 21-108 top nylon guide and 21-205 track bracket. If you need new pins, you will need the 21-058 guide pin and you can substitute using the 21-048 for the top pivot pin. The original top pivot pin is no longer available.

Quick Learner
I will need Bottom door 1 21-048, 1 21-151, Top door 2 21-048, 1 21-108, Top and Bottom right corner 2 21-205.
Paul
Paul from SWISCO
SWISCO
Expert

Great, you can place an order for these parts directly on our website at your convenience.

Quick Learner
The top pin is to short, do I have take track off.The left side works well, don't want mess up that side.
Paul
Paul from SWISCO
SWISCO
Expert

May we see a photo of the short top pin and the left side that works?
