my sash balance has fallen apart

Home Owner from Nashville

Mar 16, 2015 12:39 am

my single hung tilt window sash balance assembly had fallen apart. The tilt guide at the bottom has come apart, the rivet pins that hold the spring and tilt guide (shoe?) have fallen out and internal pulley eyelet for spring has broken. I'm attaching photos. The sampling on the side is 34-B.

channel cross section appears to be 1/2" wide and 1/2" tall.

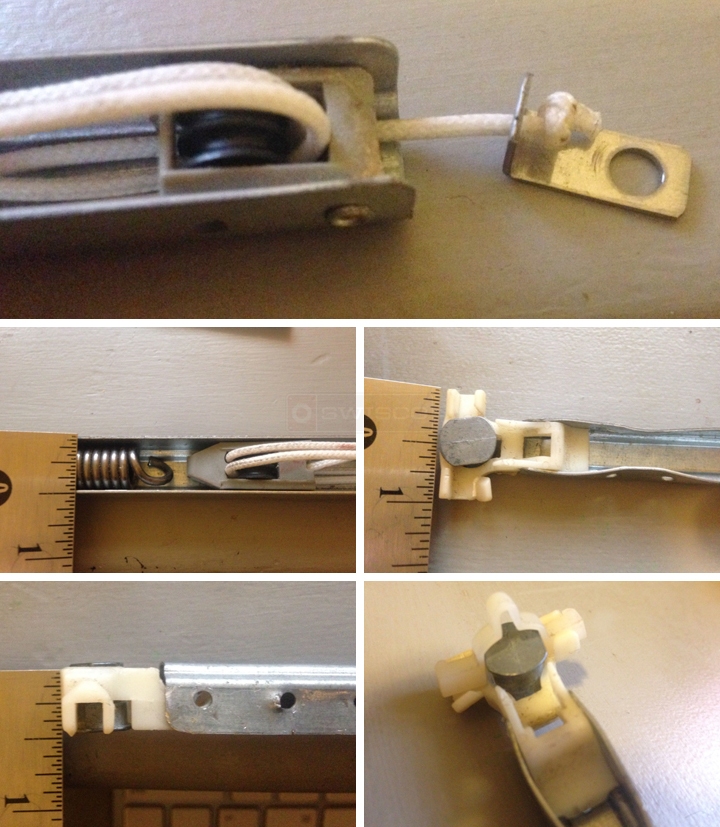

User submitted photos of a window balance.

3 Replies

+ Add a Comment

Paul from SWISCO

Mar 17, 2015 3:36 pm

EXPERT

Hello. Based on these pictures, I recommend that you consider our S795-34 channel balance with a 34B stamp option. Check it out and see if you agree.

Quick Learner from nashville

Mar 17, 2015 8:33 pm

is the shoe 15/16" like the 15-194?

Tom from SWISCO

Mar 18, 2015 10:35 am

EXPERT

The shoe that comes with the Series 795 is actually 1-1/4" wide, not 1". You can get the 15-194 separately and simply swap it out with the shoe that comes with the Series 795 if you need the smaller width.
