need replacement balances : SWISCO.com

Handy Person from gulfport, MS

Apr 14, 2024 11:42 pm

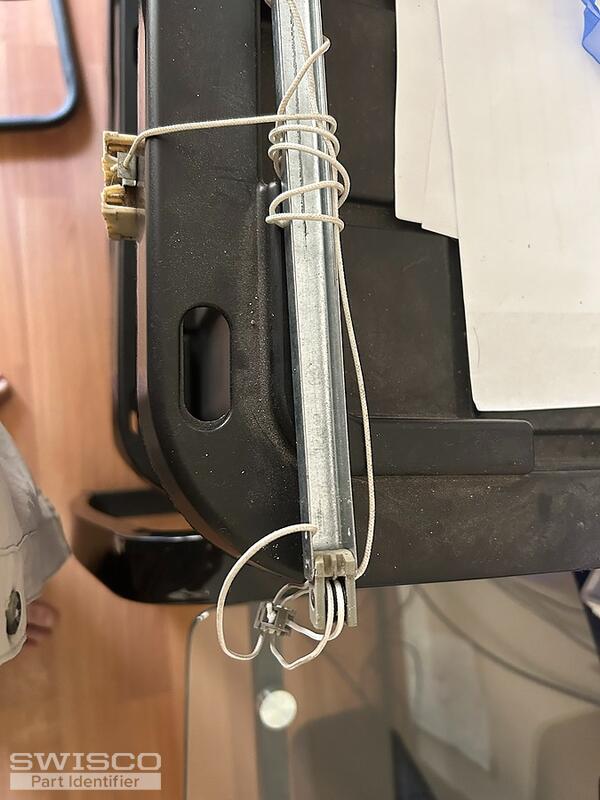

I am trying to replace the balances on both sides of this window. i have sent several photos. Please let me know if you need anything else.

Thanks

3 user uploaded images

4 Replies

Lauren from SWISCO

Apr 16, 2024 10:23 am

Hello, thank you for posting,

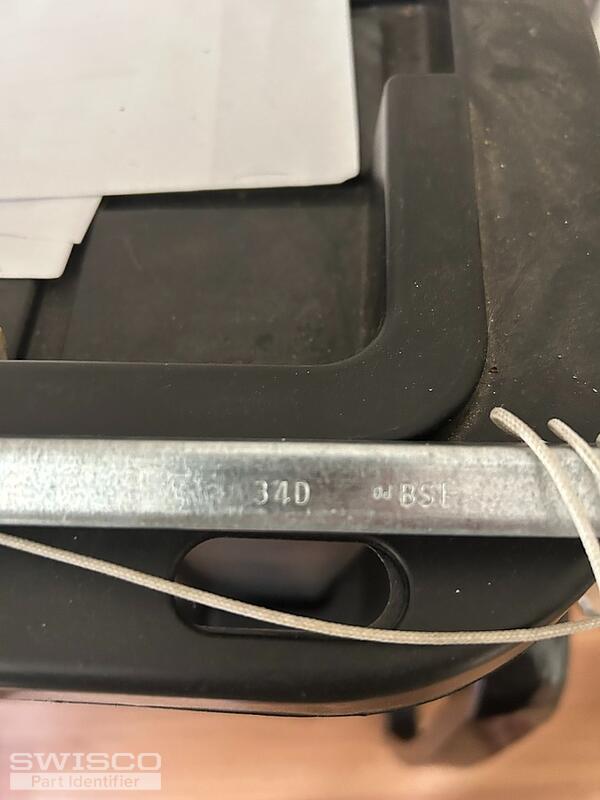

To further review, are you able to show us a clearer image of the attachment at the end of the pulley cord that engages with the pivot shoe? Please also provide the number/letter stamped on the metal channel. From there we can review to determine which series of balance you need for your window. Thank you!

Handy Person from gulfport, MS

Apr 16, 2024 10:46 am

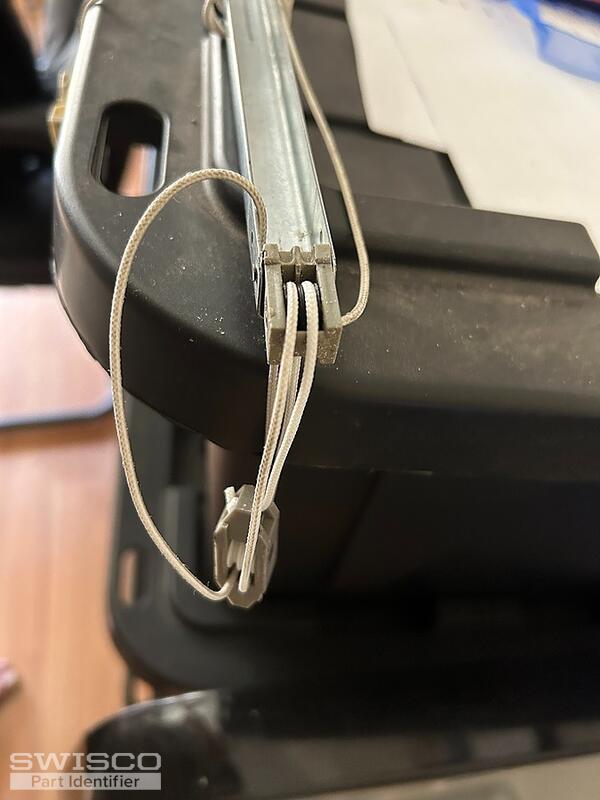

here are the pictures for you to review. let me know if you need anything else

3 user uploaded images

Lauren from SWISCO

Apr 16, 2024 2:07 pm

Thank you,

It appears you have a 34" balance with the 15-170 snap-on clip attached to the pulley string that engages with the 15-169 pivot shoe. We can custom make this balance configuration for you via a custom order using the Series 770 channel balance. Please review the dimensions below to confirm a good fit!

Dimensions for 15-170

Alternate image for 15-169

How many balances are you in need of replacing? From there I can send over an order link with pricing for your review. Please note custom orders have a minimum order of (2) and are nonrefundable.
