old windows

A home owner from north Port Fl. says:
May 14, 2023
my house was built in the early 60s in Florida. This is all that bis left of the sashes, they are non-tilt windows, I have two, and all balances are in bad shape. any help would be great.

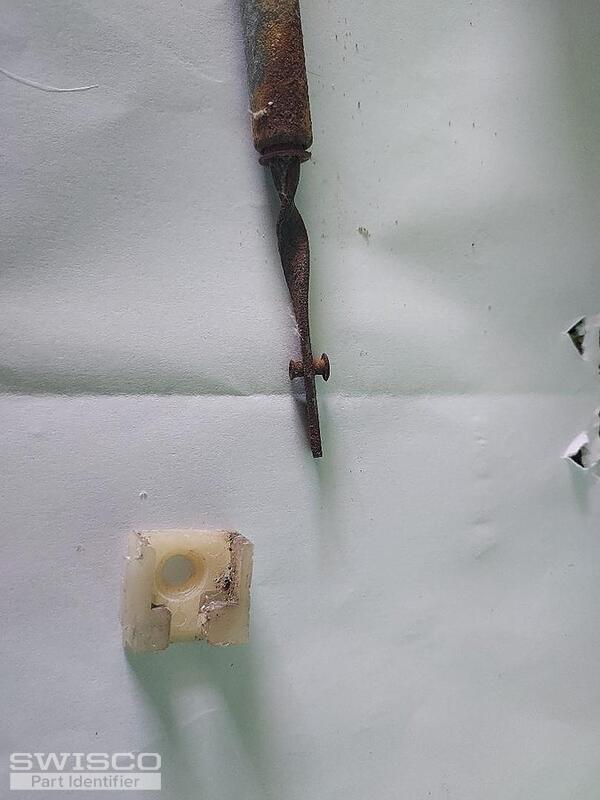

Thumbnail of the uploaded file named sash.jpg
Profile picture of Emily
Emily from SWISCO responded:
May 16, 2023

Hi there!

Thank you for reaching out to us. Can you show us a photo of how this balance connects to the sash at the bottom corners?

I'm thinking our Series 500 spiral balance and 17-012 bracket may be the way to go. We've used this setup on old wood windows and find it to be a reliable and straight-forward solution but I'd like to see photos first just to be safe.

A home owner from north Port Fl. says:
May 19, 2023
I should have specified, these are old metal windows. I want to say early 60s
Profile picture of Paul
Paul from SWISCO responded:
May 22, 2023

Thanks for clarifying. I believe you have a very old Air Control window. The bottom nylon sash clips are the 17-014 and 17-015 . The balance system will be Series 300 with either the 15-011 nylon shoe or the 15-020 nylon shoe. In order for us to determine the best match, can you remove an undamaged shoe and show us some photos?

Spiral Balance Shoe
Spiral Balance Shoe
15-011
$1.33
Spiral Balance Shoe
Spiral Balance Shoe
15-020
$1.47
Bottom Sash Clip, Left Hand
Bottom Sash Clip, Left Hand
17-014
$1.15
Bottom Sash Clip, Right Hand
Bottom Sash Clip, Right Hand
17-015
$1.15
24" Series 300 Spiral Balance
24" Series 300 Spiral Balance
S300-24
$11.57
