parts for American Craftsman single hung windows installed in 1998

Home Owner from Long Island, NY
Apr 24, 2023 11:55 am

I need to purchase 8 pivot shoes, 12 balances (C29) and 6 pivot bars for American Craftsman single hung windows that were installed 1998. Hopefully from the attached picture you can identify the correct parts I need for these windows. Feel free to contact me should you need additional pictures or have questions.

Best Regards,

Peter

PS: I have more photos but your website limited it to only 5 photo uploads.

PXL_20230423_172703797 PXL_20230423_172709758 PXL_20230423_172746391 PXL_20230423_172824014 PXL_20230423_172930673
5 user uploaded images
1 Replies
+ Add a Comment
Emily
Emily from SWISCO
Apr 25, 2023 12:59 pm
SWISCO
EXPERT

Hi there, Peter.

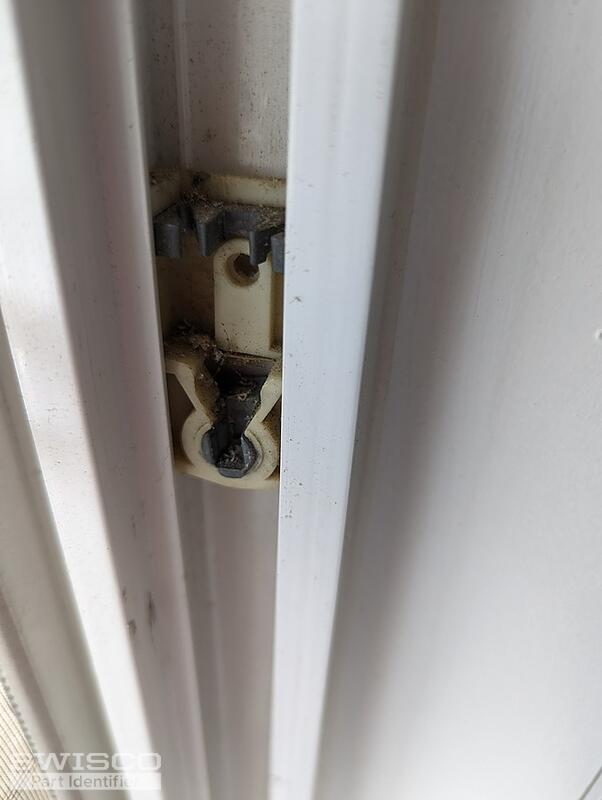

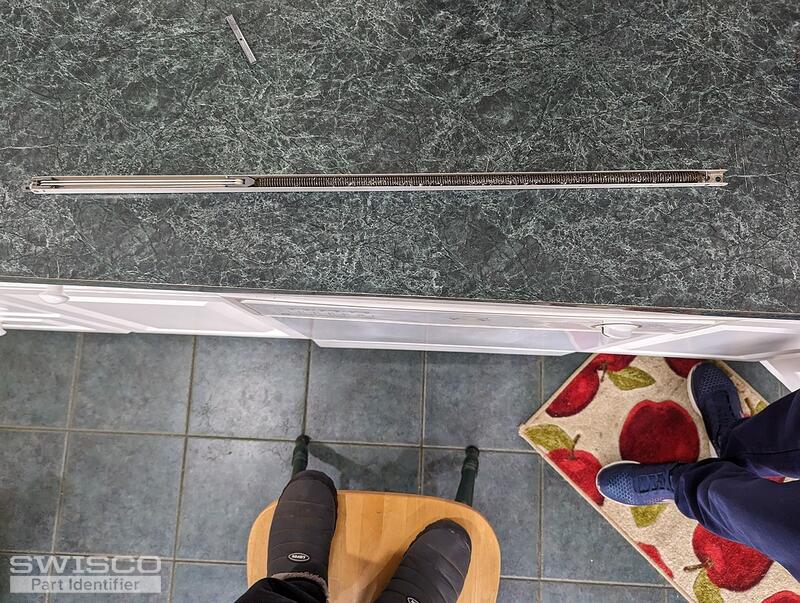

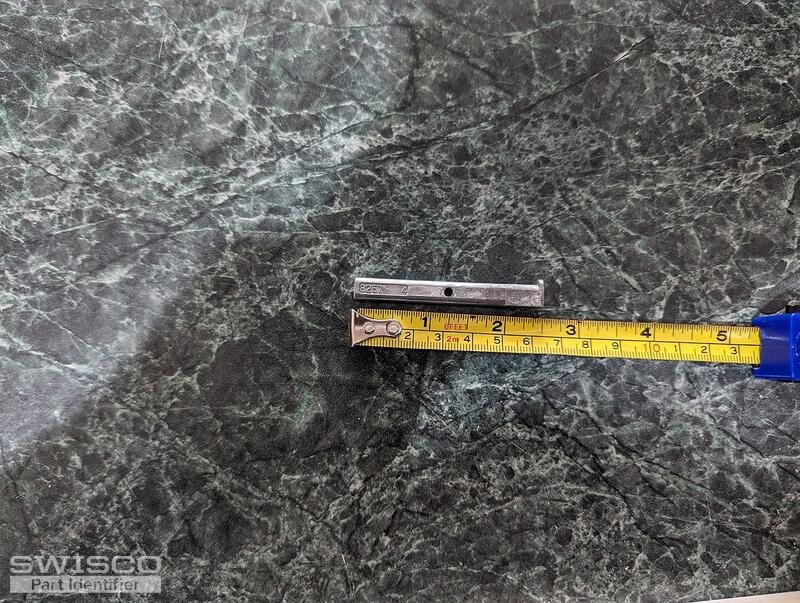

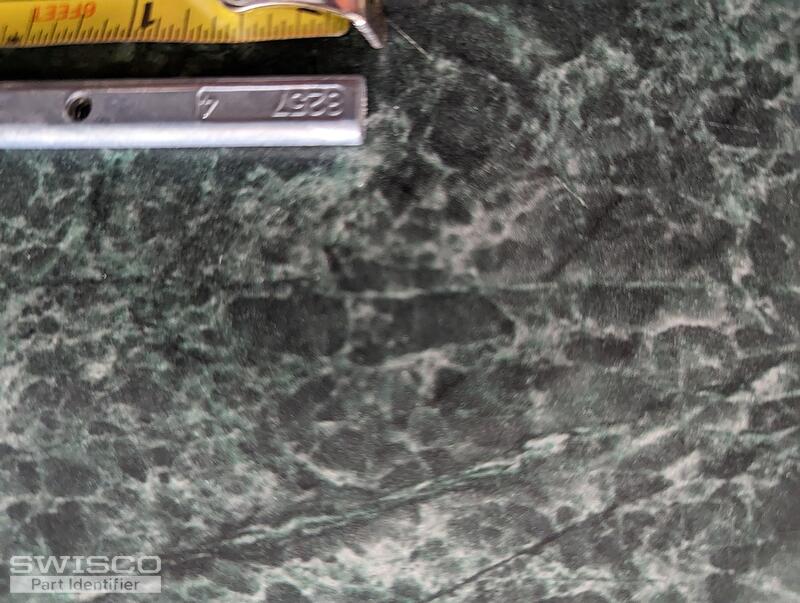

Thank you for reaching out to us. It looks like you have the Series 770 channel balance. The pivot shoe resembles our 15-167 or 15-179 but I recommend you remove yours from the window track and compare the dimensions to see if one matches up. We don't sell your exact pivot bar but we believe our 26-443 can be used as a replacement. Take a look at the specifications and see what you think.

+ Add a Comment
Products and resources found in this discussion
Pivot Bar, 2-1/2"
Pivot Bar, 2-1/2"
26-443
$1.98
29" Series 770 Balance
29" Series 770 Balance
S770-29
$12.80
Pivot Lock Shoe, 9/16" Thick
Pivot Lock Shoe, 9/16" Thick
15-179
$2.57
Pivot Lock Shoe
Pivot Lock Shoe
15-167
$2.57
