plastic center mount slide bracket mounts underneath drawer

Handy Person from columbus, Ohio

Aug 24, 2016 4:00 pm

its a plastic bracket that mounts flush to the back center of the cabinet it has a protrusion that inserts into the slide on both sides of the protrusion are 2 holes for small nails and farther out are slots for screws the left side is a horizontal slot and the right side is a vertical slot bracket is 1-3/4" wide 3/4" vertical width and protrusion that inserts into the track is 3/4" vertical height 3/8" wide and protrudes out 1/2"
thanks jim

3 Replies

+ Add a Comment

Tom from SWISCO

Aug 25, 2016 10:23 am

EXPERT

Hey, Jim. There are many parts that fit your description. Would you be able to show us a picture of the part you need? That will help us find a good replacement.

Handy Person from columbus, Ohio

Aug 26, 2016 10:19 am

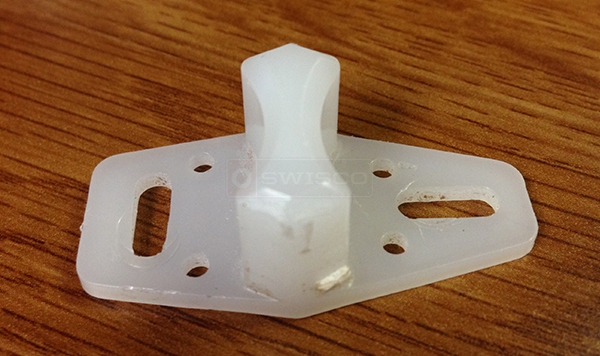

here are the photos of the bracket
thanks

User submitted photos of drawer hardware.

Paul from SWISCO

Aug 30, 2016 10:22 am

EXPERT

Thank you for the picture, Jim. We appreciate your patience as we look into this. Would it be possible for you to use the 32-080 rear bracket? Yours looks like it goes into the track, while the 32-080 wraps around the outside of the track, but assuming the opening of the 32-080 is wide enough it may still work. The 32-002 i s another possibility. Let us know what you think.

+ Add a Comment

Products and resources found in this discussion

Rear Drawer Track Socket

32-002

$0.49

Rear Drawer Track Socket

32-080

$1.10
