repair parts

Quick Learner from Iowa
Jan 29, 2024 1:40 pm

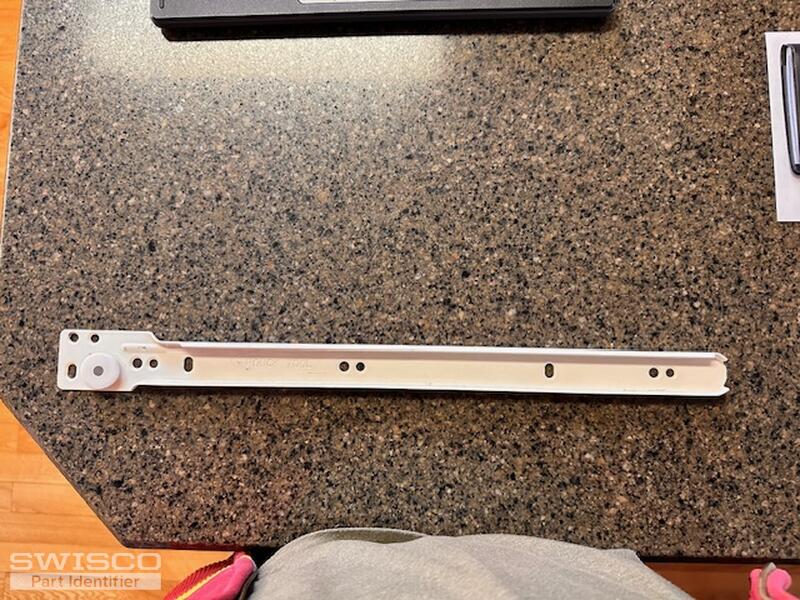

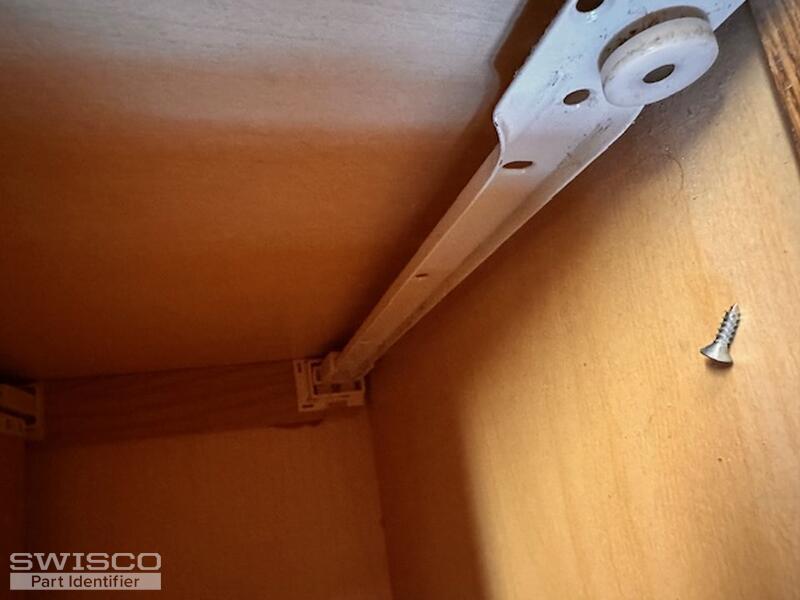

track back plate has broken so there is no suport for the side rail. I think maybe I need 32-089? My side rail is 1" wide. The back plate is broken in a couple of drawers--1 is a kitchen utensil drawer that is about 22" deep and other is a desk drawer that is about 16" deep but except for the length the rails are the same. I need to know if this is the right part before I order. Ones I have found in stores are not wide enough for the rail to fit in. The shape of the actually makes it a bit over 1" wide.
IMG_3183 IMG_3182 IMG_3181 IMG_3180 IMG_3179
5 user uploaded images
3 Replies
+ Add a Comment
Jasmine
Jasmine from SWISCO
Jan 30, 2024 12:24 pm
SWISCO
EXPERT

Thanks for reaching out! Your rear drawer track socket looks to be the 32-012 Rear Drawer Track Socket Pair. Carefully review and compare the dimensions to your existing socket. This socket has a 1" opening.

We have one drawer slide pair style compatible with this socket but it comes in a few different sizes. I've tagged them below.

Detail of 32-012
Detail of 32-012

Alternate view of 32-012
Alternate view of 32-012

Profile diagram of 32-012
Profile diagram of 32-012

Side view of 32-012
Side view of 32-012


Quick Learner from Iowa
Jan 30, 2024 3:00 pm
Yes, I think you are correct. That looks just like what I have. How do I go about ordering parts? Also need to order screws as my brackets were stapled in place
Jasmine
Jasmine from SWISCO
Jan 30, 2024 3:21 pm
SWISCO
EXPERT

The order can be placed on the website using either of the links provided in this post. It is typically recommended to use the existing screws to install this bracket. Other customers have purchased the 33-088 Mounting Screw but it may be best to take the existing screw to a local hardware store so that they can confirm the exact screw sized needed to mount the brackets.
