Channel Balance Help

Home Owner from Brownsville, Texas
Jul 4, 2021 1:18 pm

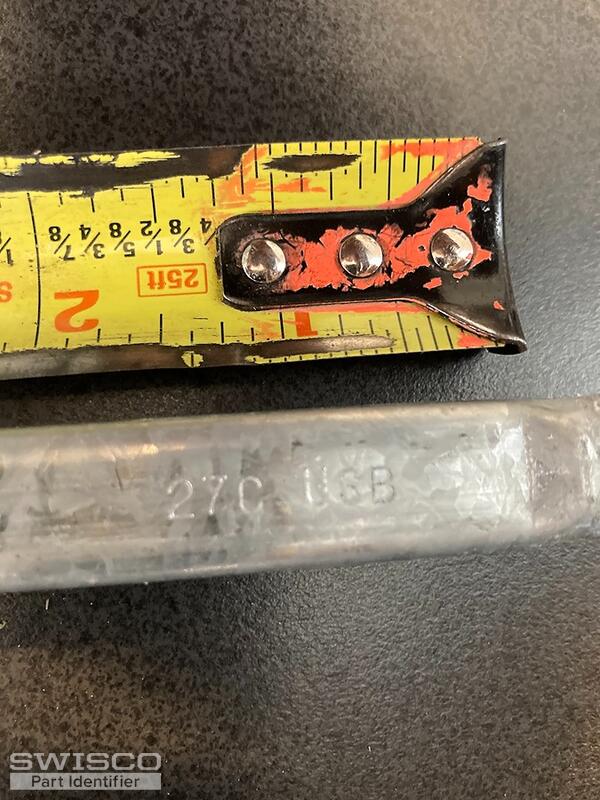

the width of the channel appears to be 1/2" and the length is 27" as far as I know it is a non-tilt window. The marking on the unit is 27C USB. Any help identifying it would be appreciated.
IMG_1789 IMG_1790 IMG_1792 IMG_1791
4 user uploaded images
1 Replies
Bob
Bob from SWISCO
Jul 8, 2021 10:24 am
SWISCO
EXPERT

Can you double-check that length? Include the part of the metal channel that the bottom nylon shoe is riveted to; you want the entire length of the metal channel in the measurement. It's just the nylon fittings themselves you don't want to include. If the length is 28", then you'll need either our S351-28 or S390-28. The only difference between these two balances is the depth of the bottom nylon shoe, or the 'heel-to-toe' measurement, so compare both with your old hardware to see what matches best. See the image below for reference. In either case, for a new stamp option choose 2730.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
