unk model window operator

A quick learner from 33570 says:
May 23, 2023

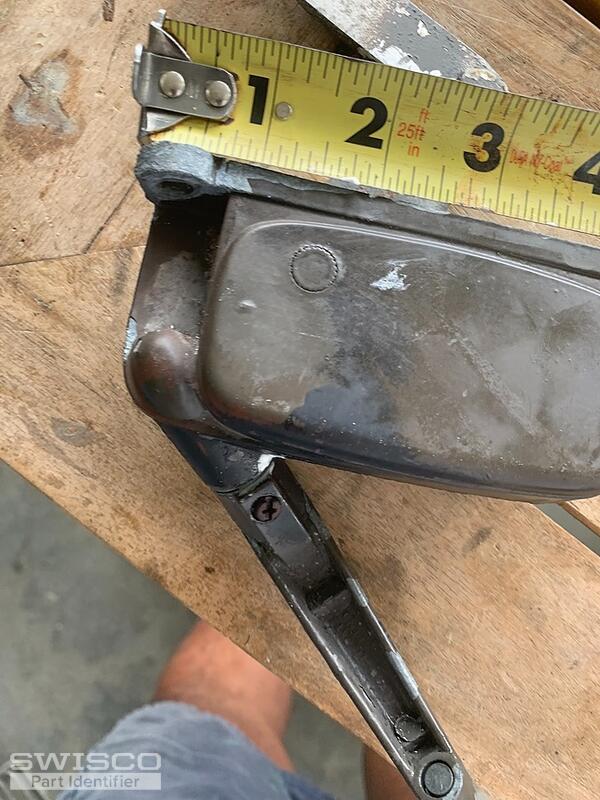

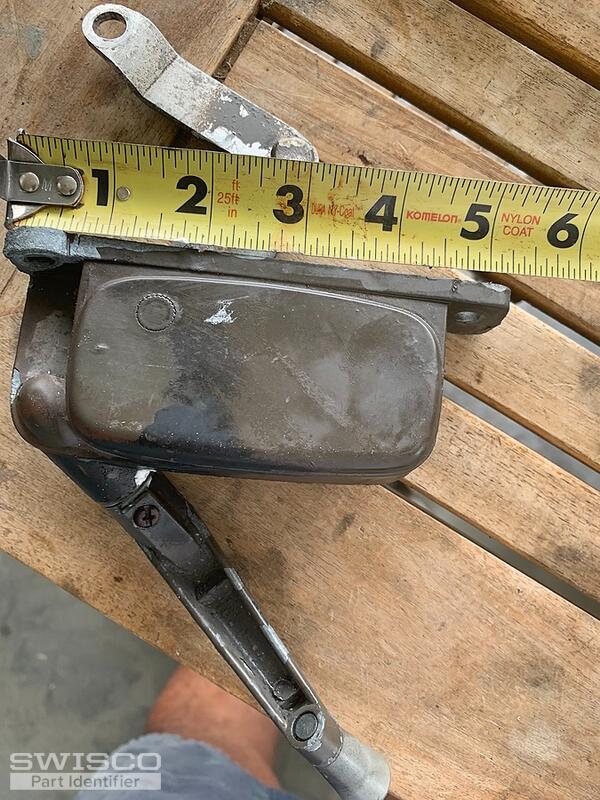

awning window operator with only two mounting holes. All help appreciated identifying.
Thumbnail of the uploaded file named IMG_2658.jpg
Thumbnail of the uploaded file named IMG_2659.jpg
Thumbnail of the uploaded file named IMG_2660.jpg
Thumbnail of the uploaded file named IMG_2661.jpg
Thumbnail of the uploaded file named IMG_2662.jpg
Profile picture of Emily
Emily from SWISCO responded:
May 25, 2023

Hi there!

Thanks for reaching out to us. I'm afraid I can't be certain without seeing a clear view of the installation hole patterns on the top and bottom tabs. However, you can start by taking a look at the operators we've related on this page. They have a similar link arm with an offset but review the specifications and see how they compare with your old hardware.

A quick learner from 33570 says:
May 25, 2023

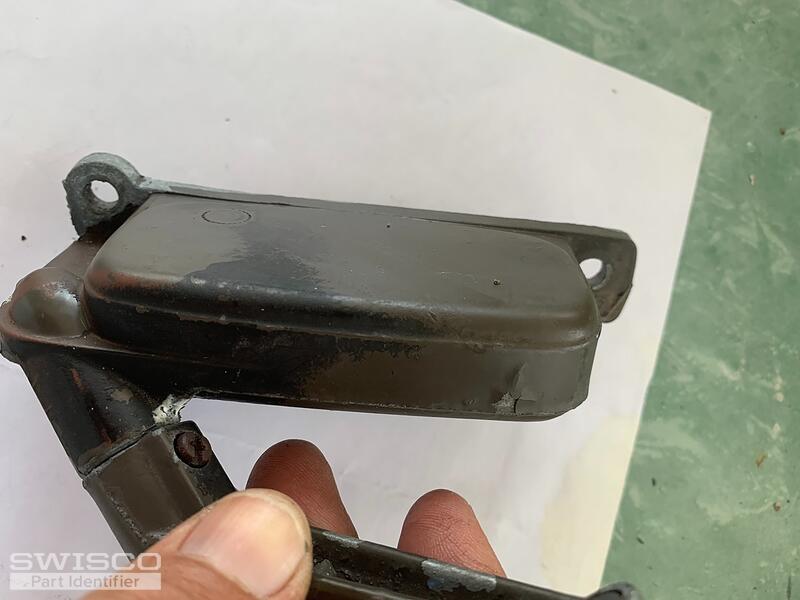

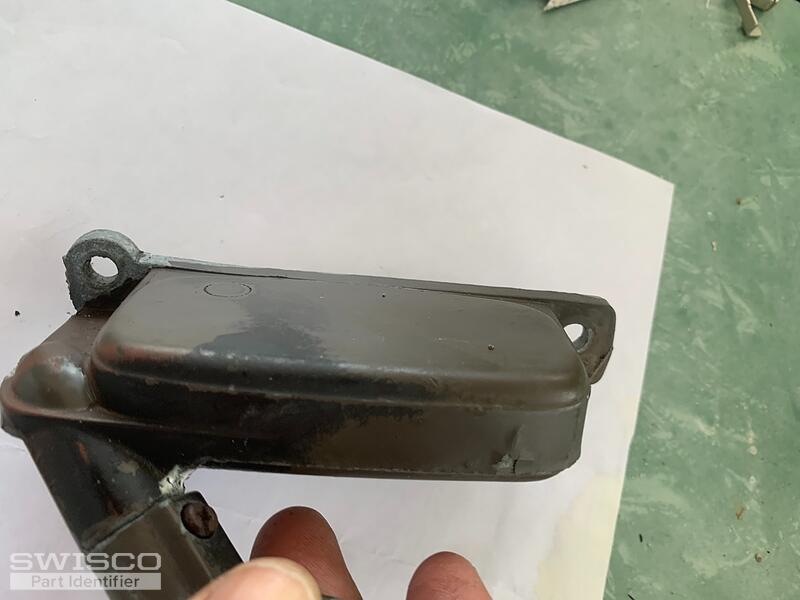

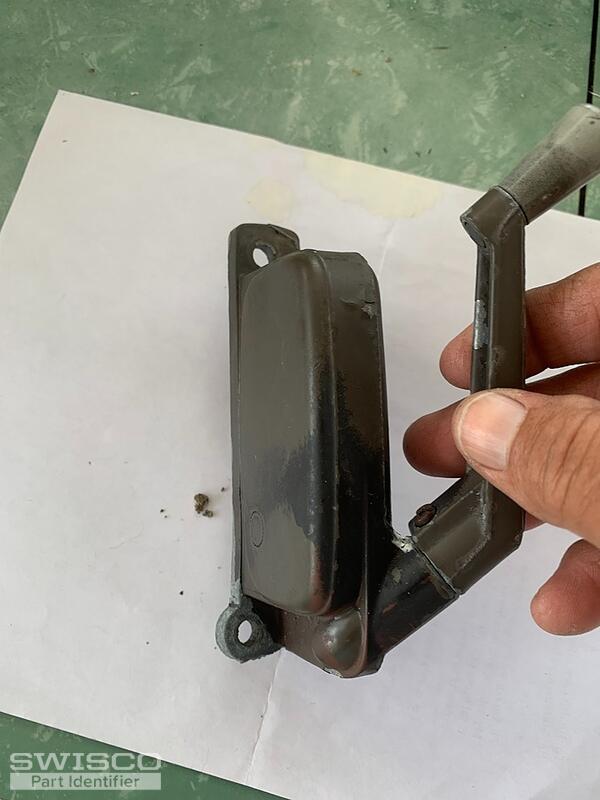

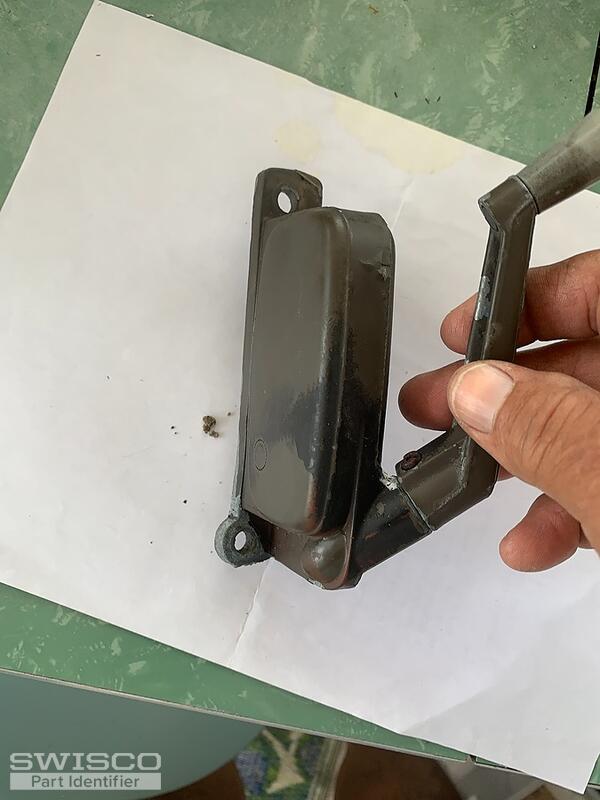

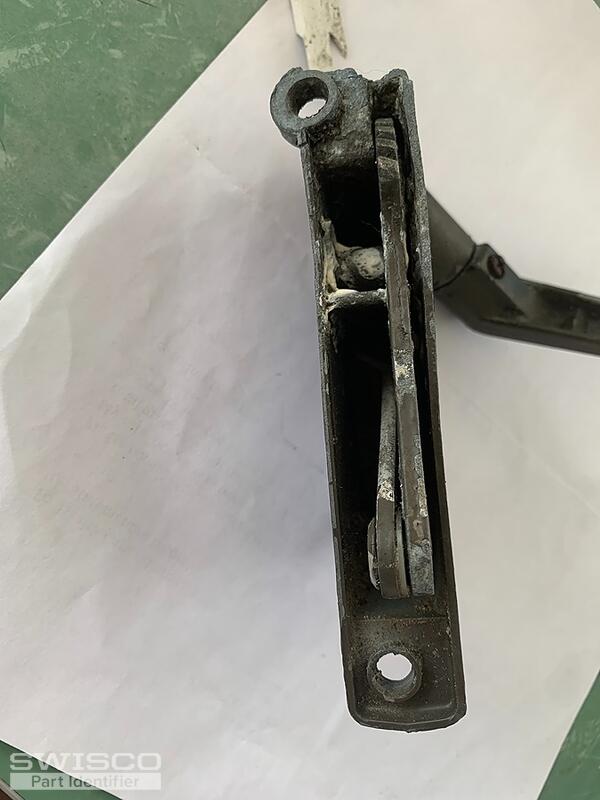

thanks for help so far. Note there are only two holes, not in line with each other
Thumbnail of the uploaded file named IMG_2669.JPG
Thumbnail of the uploaded file named IMG_2668.jpg
Thumbnail of the uploaded file named IMG_2667.jpg
Thumbnail of the uploaded file named IMG_2672.jpg
Thumbnail of the uploaded file named IMG_2671.jpg
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
May 26, 2023

It looks like the bottom leg was broken off of your operator. However, looking at the "link" arm of your operator it appears to be similar to the link arm on the VE Andersen operators. Take a look at the 39-258 and the 39-259 operators on the web site along with the related video.

Stanley Operator, Left Handed
Stanley Operator, Left Handed
39-057
$20.04
Stanley Operator, Right Handed
Stanley Operator, Right Handed
39-058
$20.04
LH Window Crank Operator, 3/8" Hole
LH Window Crank Operator, 3/8" Hole
39-193
$19.97
RH Window Crank Operator, 3/8" Hole
RH Window Crank Operator, 3/8" Hole
39-194
$19.97
VE Andersen Window Operator, Left Handed
VE Andersen Window Operator, Left Handed
39-258
$17.98
VE Andersen Window Crank, Right Handed
VE Andersen Window Crank, Right Handed
39-259
$17.98
Ware Window Crank, LH
Ware Window Crank, LH
39-410
$20.04
Ware Window Crank, RH
Ware Window Crank, RH
39-411
$20.04
