This would be a new install.

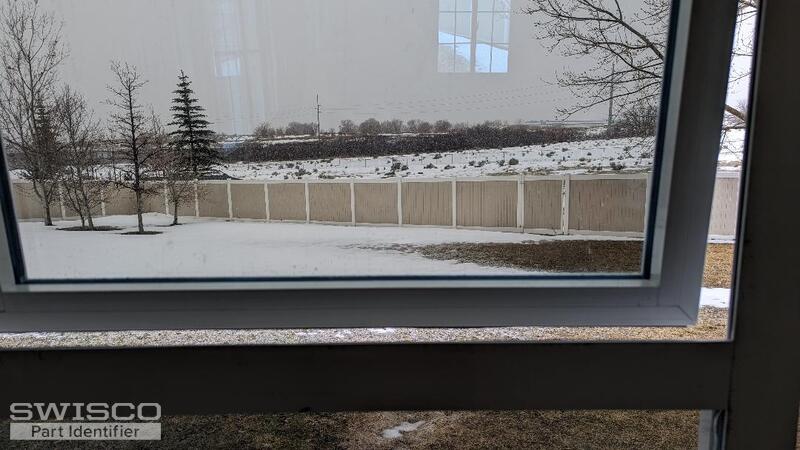

I have 4 swing out windows but no handle to push them out and bring them back in. I would like a rounded handle for the window frame itself and then a separate lock to keep the window closed. But I don't know what is available. There is a gap between the closed window frame and the interior window frame. The handle locks I have seen don't allow for a gap like that. And maybe I can only get a combined handle and lock??? Can you help me?
window frame closure and lock
Home Owner from utah
Jan 25, 2024 2:30 pm
2 user uploaded images
3 Replies
Jasmine from SWISCO
Jan 26, 2024 9:34 am
Hey there,
Thanks for reaching out to us! There is a chance that we may be able to provide you with solution for converting your window to one that uses a lock and an operator but I cannot make any guarantees, especially since this is a new application.
I'm going to have one of our senior experts take a look and see if there is a recommendation we can suggest for you. We'll reach out as soon as more information is available.
Please feel free to reach out with any other questions you might have in the meantime.
Dave Sr. from SWISCO
Jan 30, 2024 1:38 pm
Hello,
I'm not sure why this window did not come with a lock or handle to secure the sash closed. However, take a look at the 38-064 and 38-065 locking handle as a possible solution. These cam locks are used on hopper type windows similar to the one in your photo.
Alternate image for 38-064
Alternate view of 38-064 Cam handle lock with dimensions

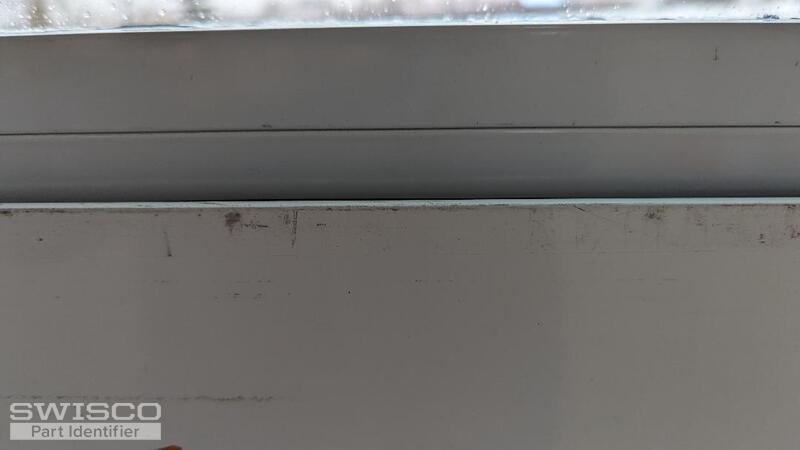

Looking at the second photo it appears that you might have a place below the line shown to install the cam locks. However you might need to add some washers under the base of the lock to clear the lip on the main frame of the window to lock the sash.
Also take note you don't want to damage the frame or break the glass when drilling for the installation screws. You might want to get a professional familiar with windows to do the installation.
