window parts

A quick learner from Florida says:
October 25, 2022

Hello. I need to replace the springs on my windows. A local handyman ordered parts from you and I went to try to fix my windows and the parts that he ordered are too skinny. They are not the same size as what I already have in my windows. Can you help?

Kelley

Thumbnail of the uploaded file named IMG-3894 (1).jpg
Thumbnail of the uploaded file named IMG-3895 (1).jpg
Profile picture of Emily
Emily from SWISCO responded:
October 28, 2022

Hi, Kelley.

Could you show us some photos of the top fitting for your balance? I see some top fittings in the background of your photos but I'm not sure if those were from the wrong balances that were ordered before so I'd just like to be thorough so we can get you the right parts for your repair.
A quick learner from Florida says:
January 17, 2023
Reference # D271854

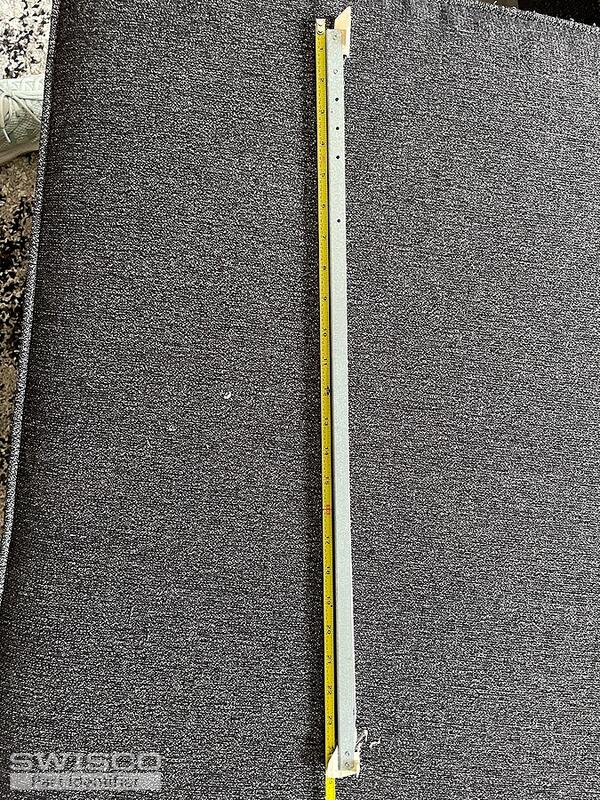

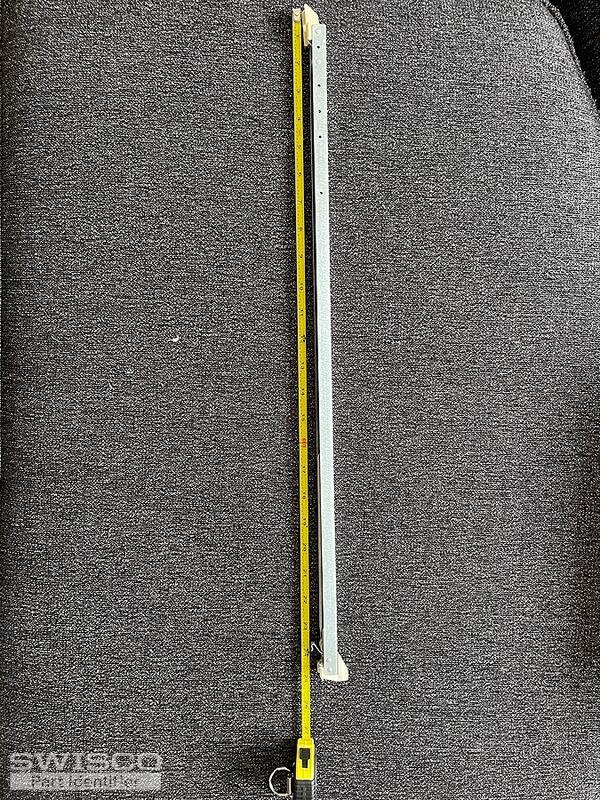

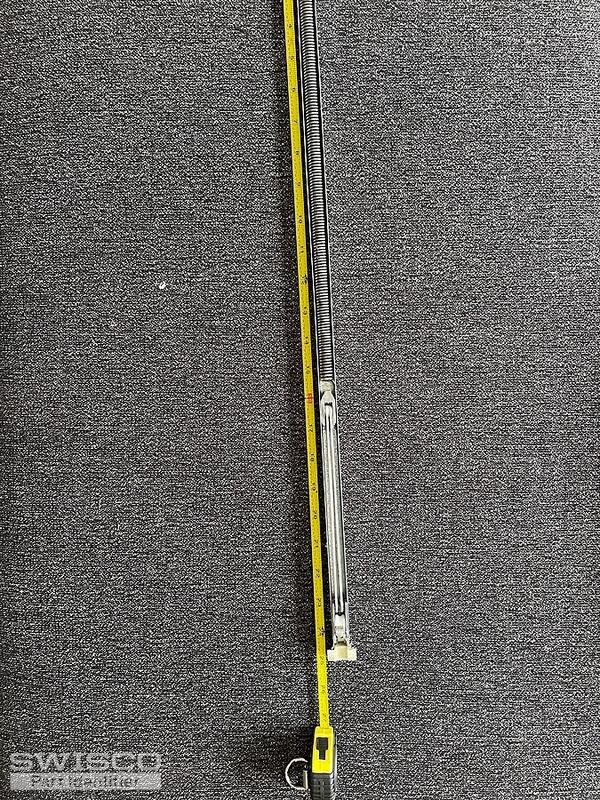

Hello I was waiting for an email back since I sent my picture and I called today and found out I sent them in the wrong place.
Can someone help me figure out my replacement parts.
Thumbnail of the uploaded file named image_67516161.JPG
Thumbnail of the uploaded file named image_67160065.JPG
Thumbnail of the uploaded file named image_67217665.JPG
Thumbnail of the uploaded file named image_67200001.JPG
Profile picture of Emily
Emily from SWISCO responded:
January 18, 2023

Thanks for the additional photos! It looks like your balance's configuration matches our Series 380 or Series 385. The only difference is the depth of the bottom shoe so you'll have to measure as shown below. You will also need the 2340 strength option, based on your 23 4 stamp.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
24" Series 380 Channel Balance
24" Series 380 Channel Balance
S380-24
$10.55
24" Series 385 Channel Balance
24" Series 385 Channel Balance
S385-24
$10.55
