21" Channel Balance Stamp 21 c

Home Owner from Florida
Apr 11, 2022 12:59 pm
Our 1980 Windows need 6 new Channel Balances

They are old heavy windows.

The STAMP says 21 C

Which would we order from you? 2040?
10 Replies
Home Owner from Florida
Apr 11, 2022 2:29 pm
It looks like your 21" Series 372 Channel Balance
Tom
Tom from SWISCO
Apr 12, 2022 11:28 am
SWISCO
EXPERT

A stamp of 21C usually corresponds to our 2130 stamp option for our 1/2" wide 22" long channel balances. You should triple check the length of your metal channel to confirm what size it is you're dealing with.

You can also see a detailed chart on each balance store page that tells you exactly how much weight each stamp option supports. When in doubt, you can always weigh your sash and refer to that chart.

Home Owner from Florida
Apr 12, 2022 2:25 pm
Thank you for your reply. My husband said 21 1/4" from metel end to metel end

What should we order?
Paul
Paul from SWISCO
Apr 14, 2022 9:31 am
SWISCO
EXPERT

If the channel is exactly 21-1/4", you can use the S372-21 balance with a 2030 strength option.

If you're not absolutely sure that the S372 is an exact match to your fittings, I would recommend sending photos of your original balance uninstalled for us to confirm the correct match.

Home Owner from Florida
Apr 17, 2022 2:43 pm
Hello,

We received 6 of your 2030 S322-21 today. We missed the dimensions and need to return and reorder.

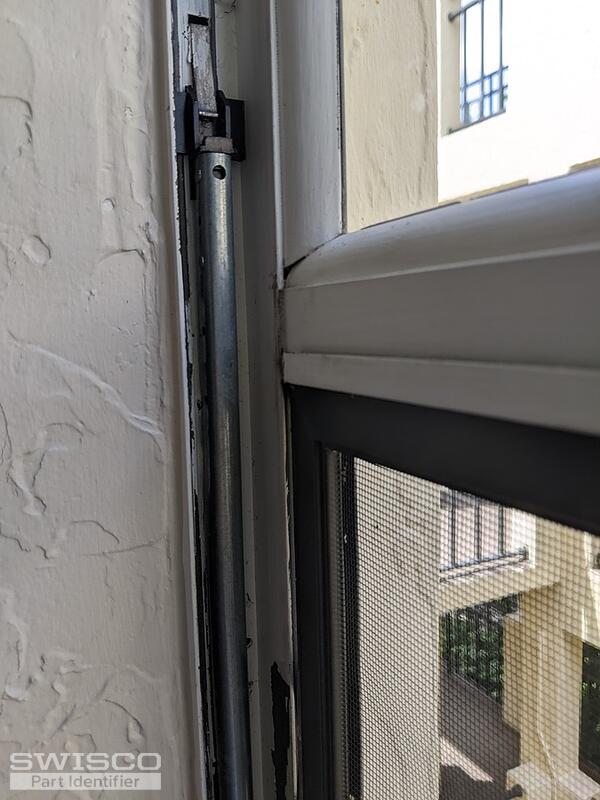

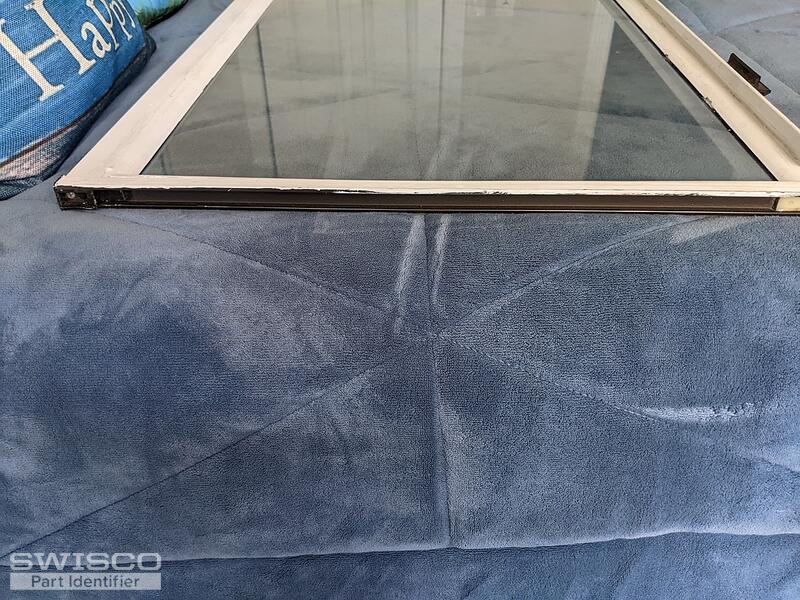

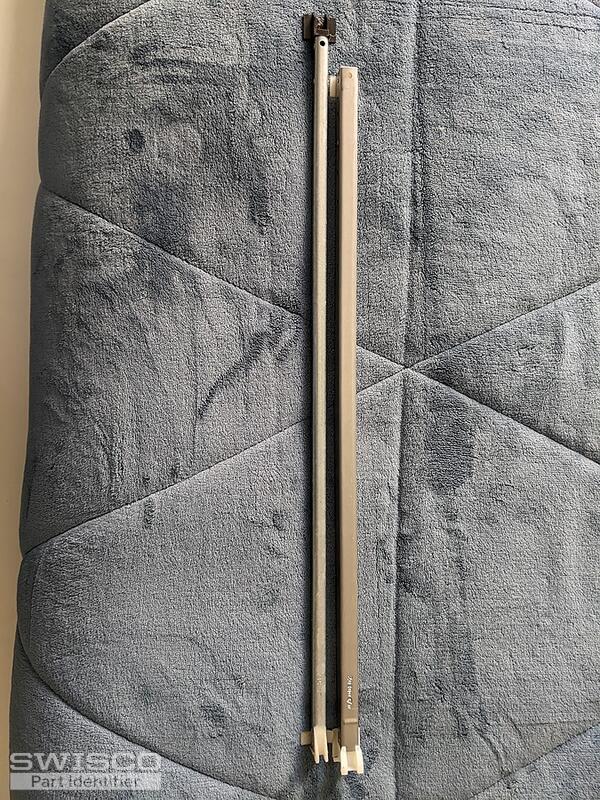

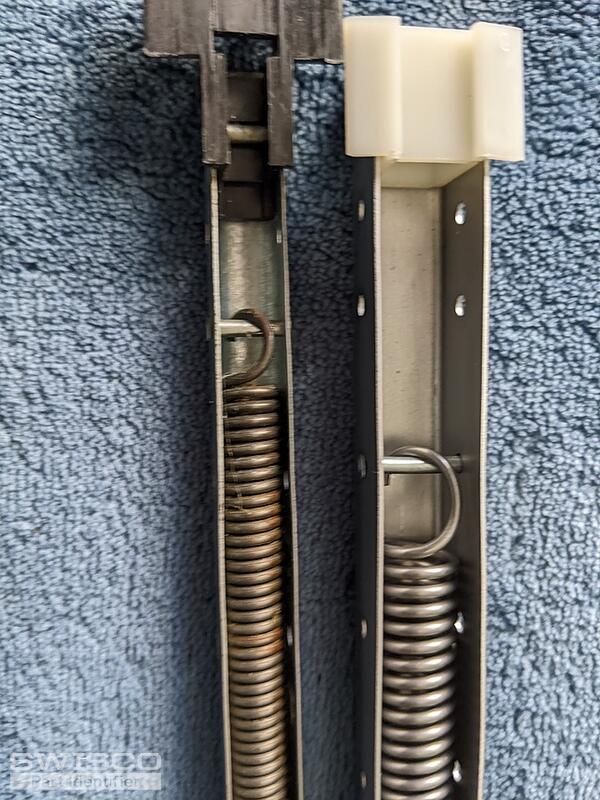

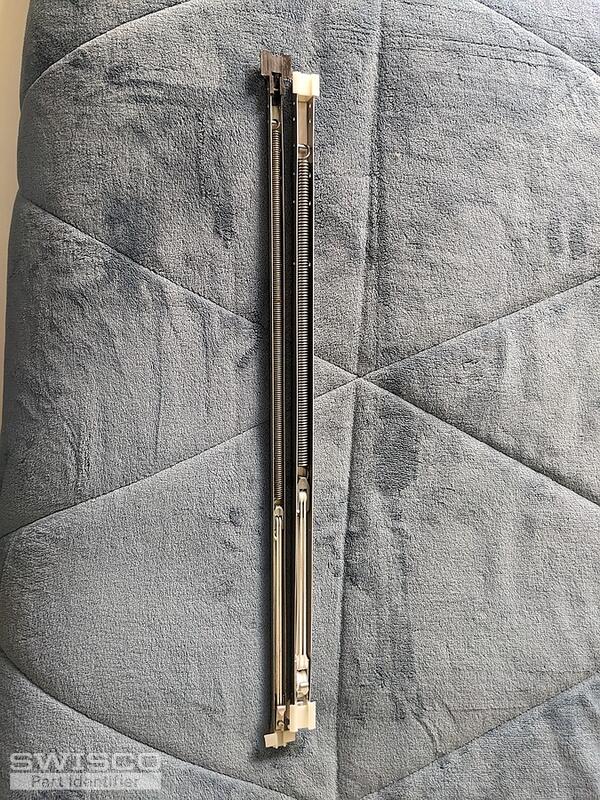

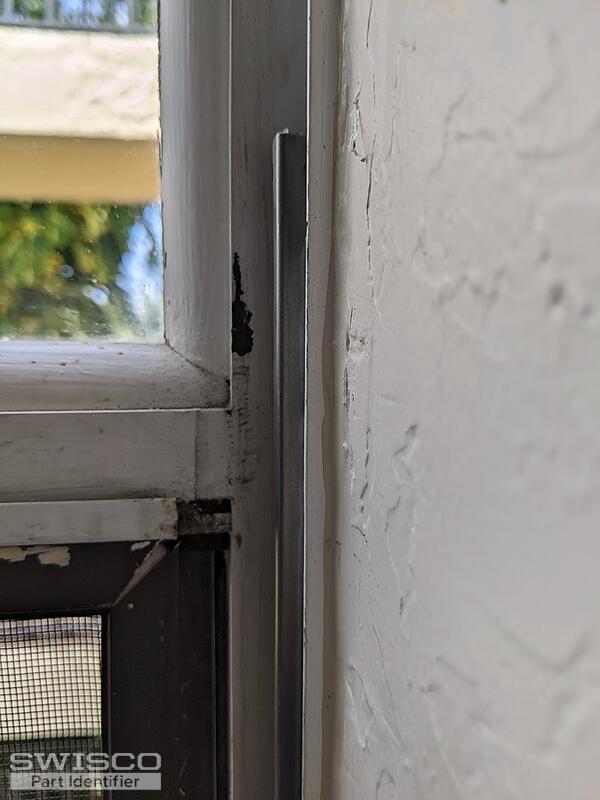

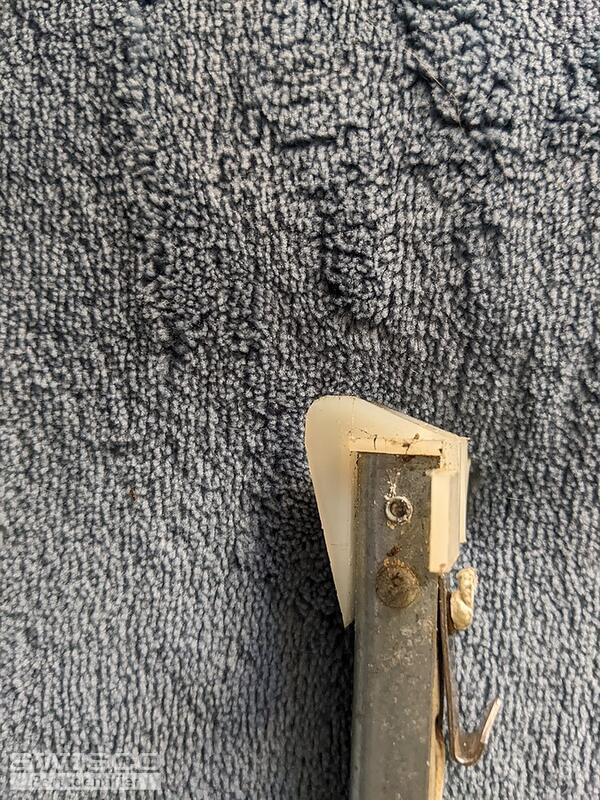

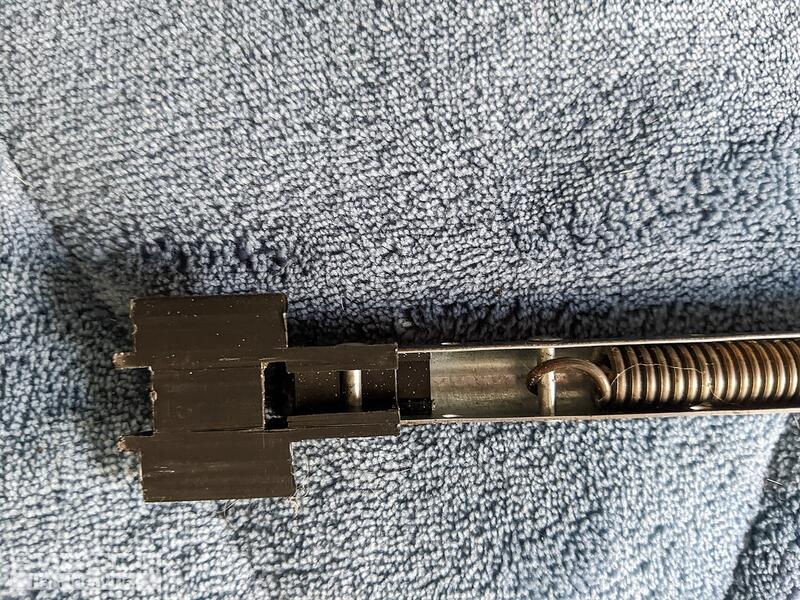

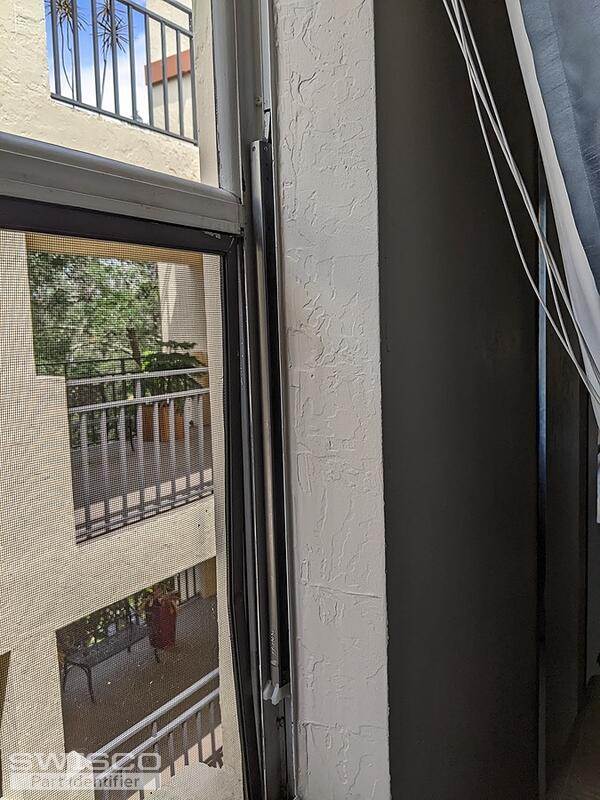

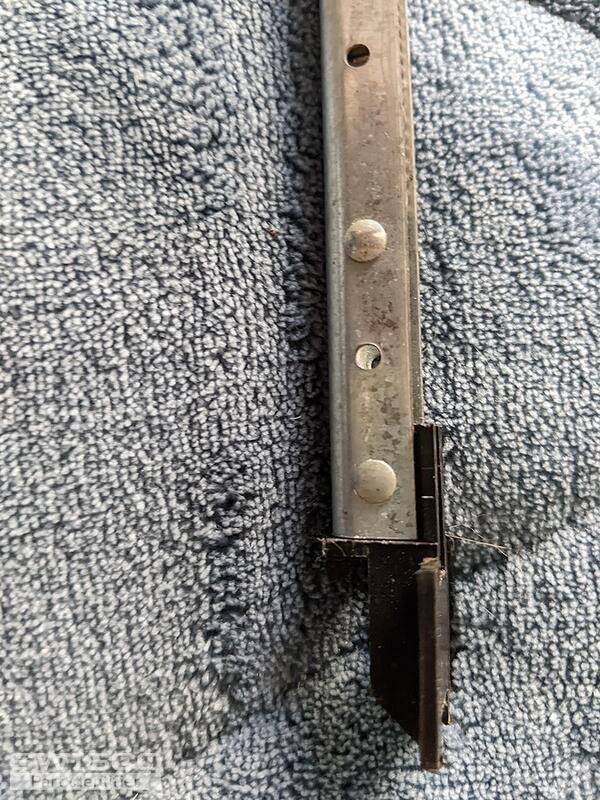

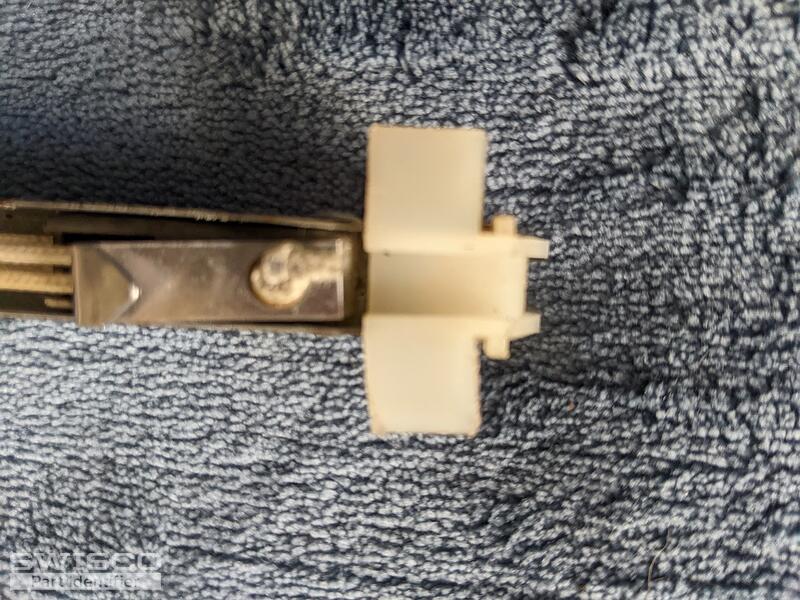

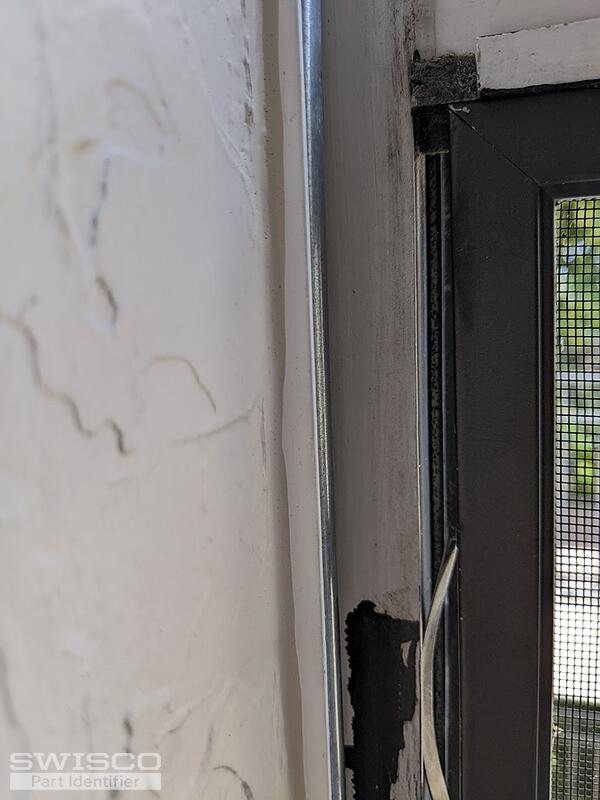

What do you recommend on these measurements? Also see attached photos:

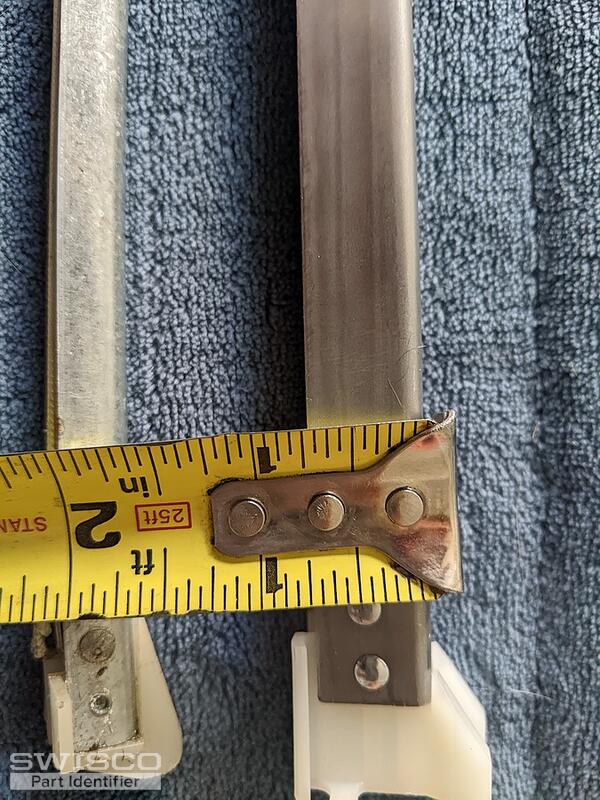

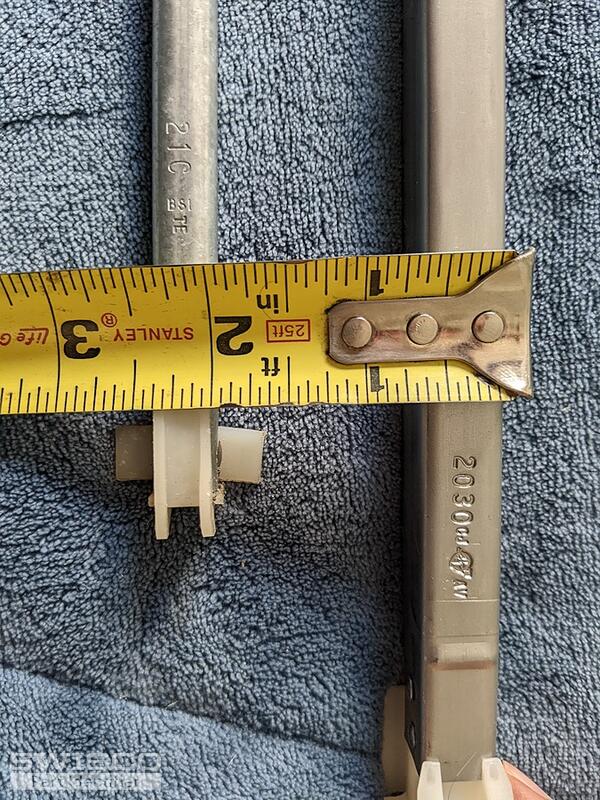

Balances 3/8" wide, 3/8" deep

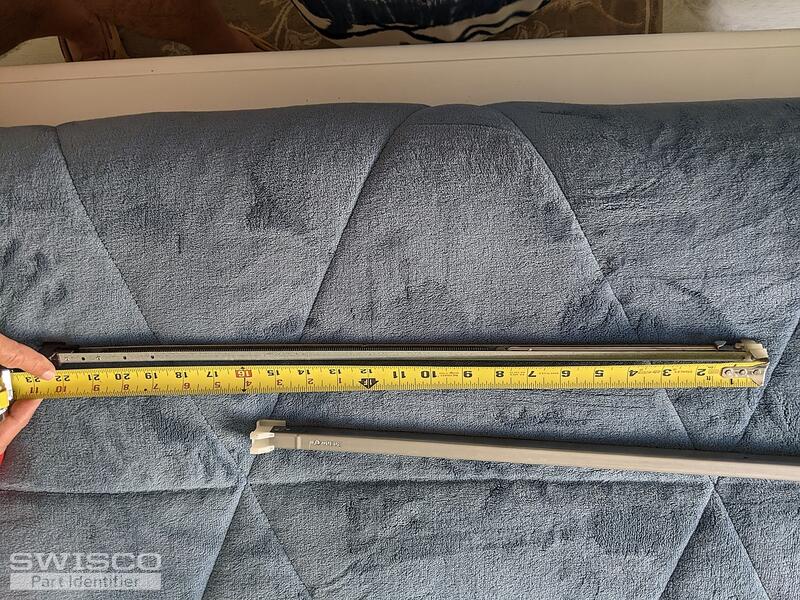

22" long
PXL_20220417_183420160 PXL_20220417_183355936 PXL_20220417_183322442 PXL_20220417_183431407 PXL_20220417_183408481
5 user uploaded images
Home Owner from Florida
Apr 17, 2022 2:45 pm
More photos part 2
PXL_20220417_183327683 PXL_20220417_183510386 PXL_20220417_183517123 PXL_20220417_183258155 PXL_20220417_183250960
5 user uploaded images
Home Owner from Florida
Apr 17, 2022 2:46 pm
Photos Part 3
PXL_20220417_183527786 PXL_20220417_183538614 PXL_20220417_183520528 PXL_20220417_183525232 PXL_20220417_183718585
5 user uploaded images
Home Owner from Florida
Apr 17, 2022 2:47 pm
Final Part 4
PXL_20220417_183608609 PXL_20220417_183538614 PXL_20220417_183718585 PXL_20220417_183724773 PXL_20220417_183734016
5 user uploaded images
Paul
Paul from SWISCO
Apr 18, 2022 8:21 am
SWISCO
EXPERT

Your 3/8" channel and combination of attachments remind me of the S810-22 balance with a 21C strength option. Take a look and see how the specifications compare.

You can also find our full return policy here. Thanks for posting!

Home Owner from Florida
Apr 18, 2022 8:34 am
Thank you
