Non-tilt window channel balance advice

Handy Person from Boulder, CO
Jul 1, 2023 4:28 pm

Hi!

I have an old house (circa 1930) and am working to replace the channel balances on a window

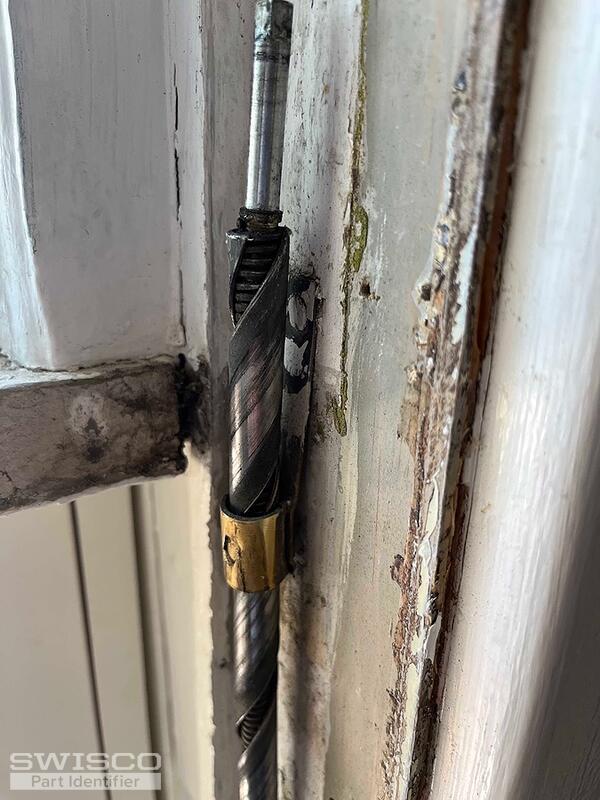

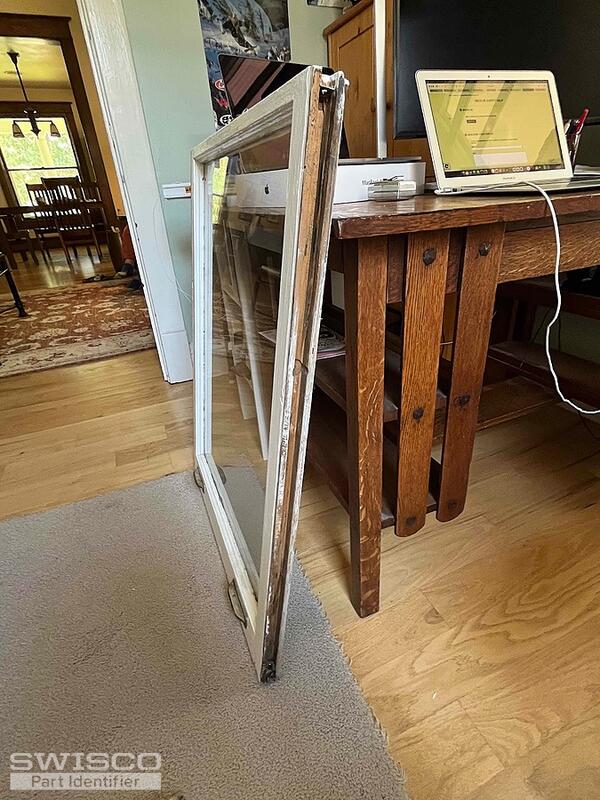

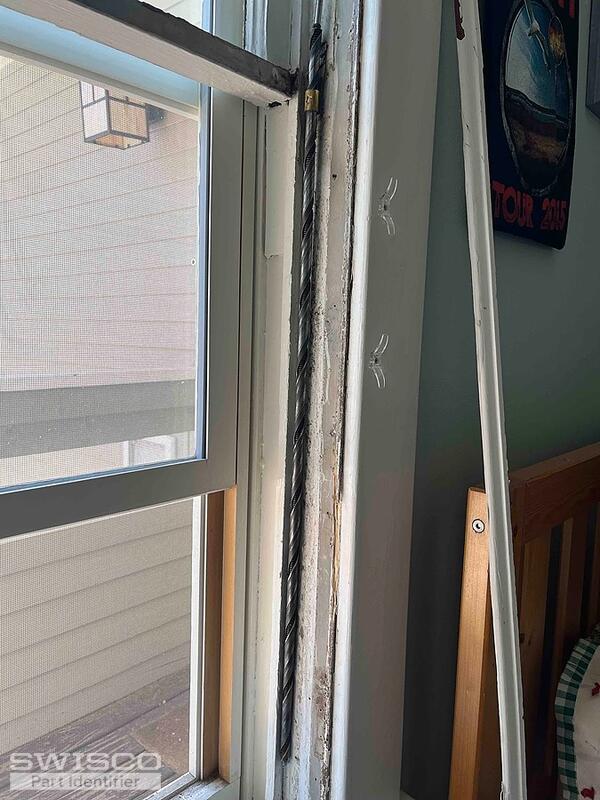

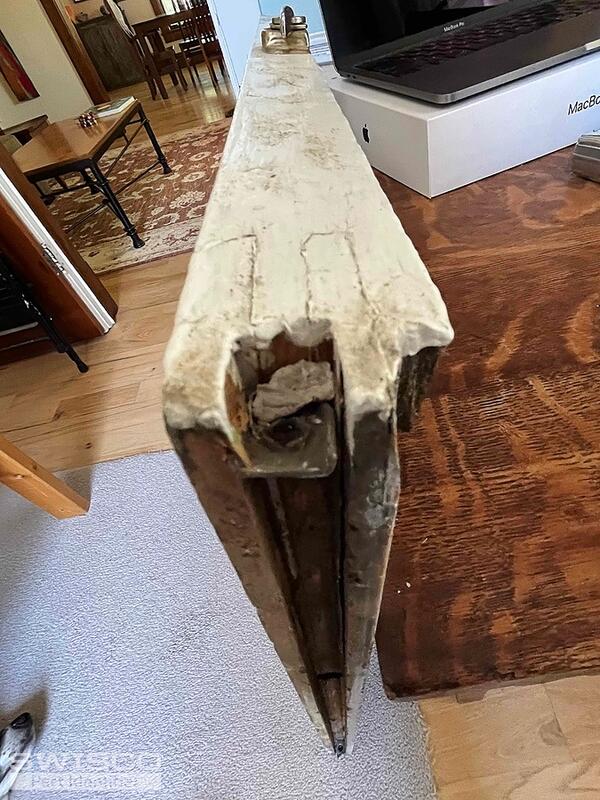

When I took the bottom sash out, I found a single, old spiral balance on one side. It's 31" long and seems to be about 7/16" wide.

I assume I should replace this old one with two new ones? Is it important to match the old spiral balance, or fit to the window's dimensions? The window channel is 5/8" wide, is 34" tall, and weighs 13.5 lbs.

I'd really appreciate any guidance!

Much thanks -

Dan

IMG_1855 IMG_1856 IMG_1857 IMG_1858
4 user uploaded images
3 Replies
Bob
Bob from SWISCO
Jul 2, 2023 2:22 am
SWISCO
EXPERT

Hey Dan. Our Series 500 Non-Tilt Window Spiral Balance is often a good choice to replace these old wood window spiral balances. If the tube is 31", see our S500-31. For a sash that weighs around 13 pounds, use a Red Tip option. Now, you may need a new bracket to attach to the spiral tip--our 17-012 is one such possibility. Keep in mind some customers report this bracket works fine for their windows, whereas others have complained it is too large. Unfortunately I can't say what will be the case for you--trying it is really the only way to find out. For peace of mind, you can view our Return Policy here in the event something doesn't work out. Let me know if you have any other questions.

Handy Person from Boulder, CO
Jul 3, 2023 12:17 pm
Hi Bob -

Thank you so much for this guidance. Ordering now from your site : )

Best -

Dan
Bob
Bob from SWISCO
Jul 3, 2023 2:07 pm
SWISCO
EXPERT

Thank you, Dan, we appreciate it! Your business means a lot.

We're here to help if you had any follow-up questions.
