Replacement Channel Valance and cover

Home Owner from Minnesota
Jul 11, 2023 10:01 am

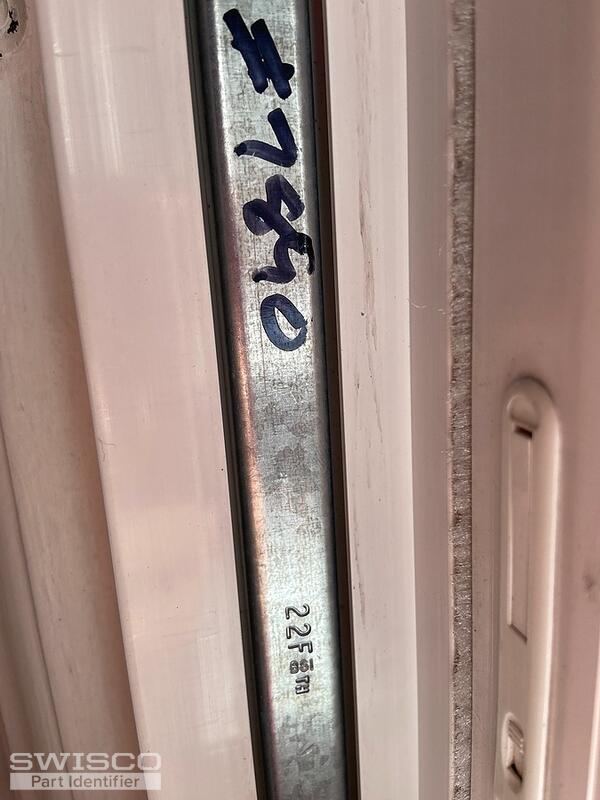

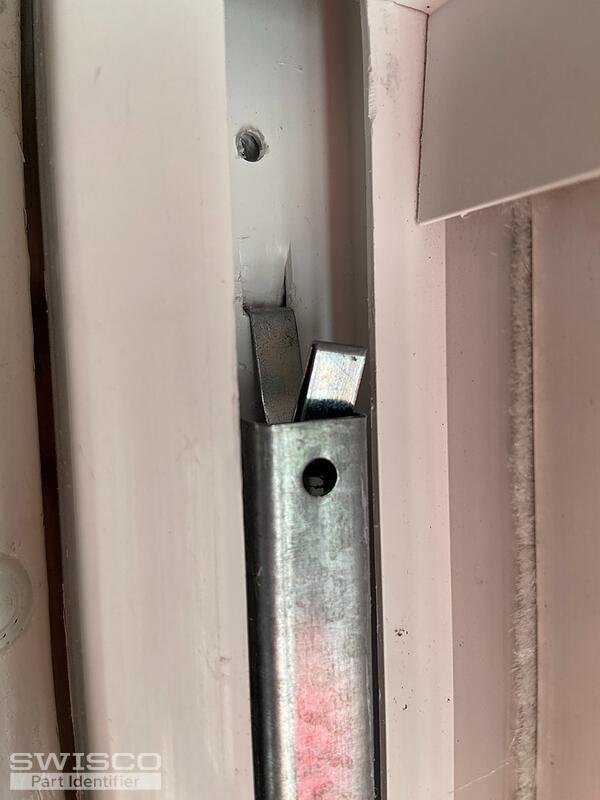

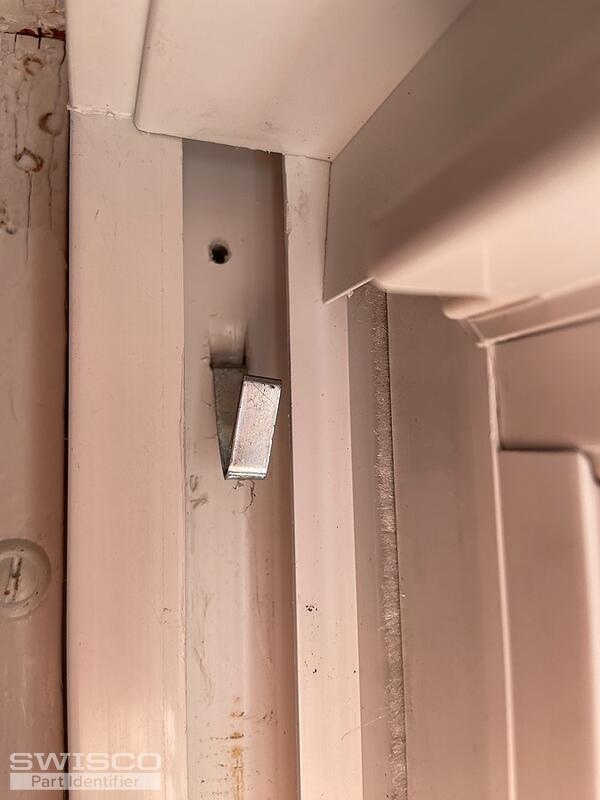

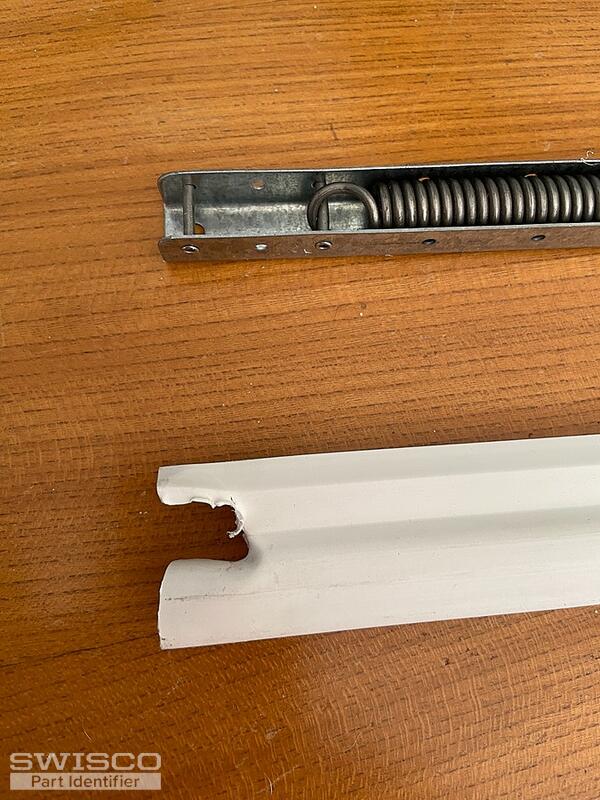

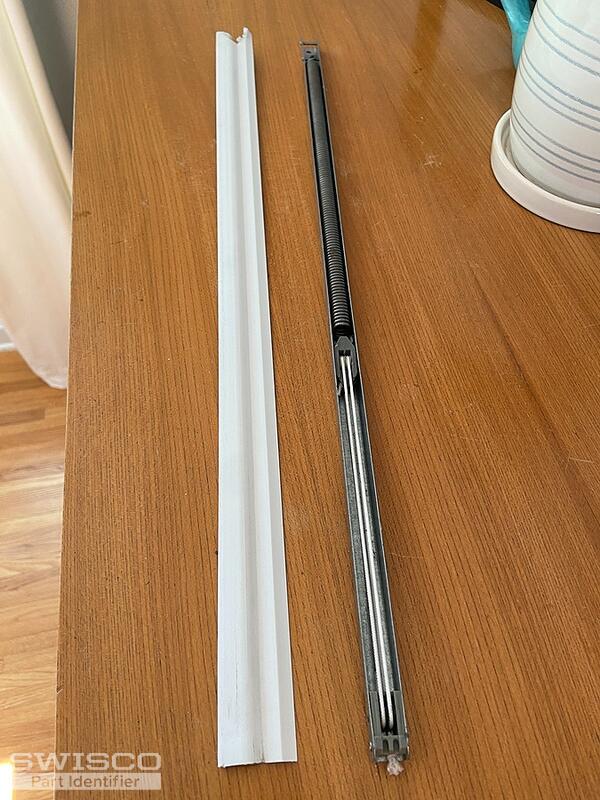

Hello, I need two parts and I was hoping you could point me in the right direction. I believe 22F is the metal channel balance number, but it connects with a hook and not a screw. Do you have that option? Second, I need a white plastic replacement part to cover the metal balance up. It is 22" long. Thank you!
IMG_7520 IMG_7522 IMG_7523 IMG_7524 IMG_7525
5 user uploaded images
3 Replies
Casey
Casey from SWISCO
Jul 12, 2023 9:26 am
SWISCO
EXPERT

Hello,

It looks like you sent our part experts a request for similar balances back in 2019, which you can view here. We just sent over an order link and price quote to have a rivet attached to the top of our S770-22 (22F) balance to accommodate an s-clip like our 19-029 or 19-030. With that being said, you'll need to make sure that the balances in this window use the same terminal clip at the end of the pulley as shown below.

As for the balance cover, unfortunately, that is not something that we can supply but a local hardware store may carry it. We apologize for the inconvenience but just let us know if you have any other questions. Thank you!

Close up view of the Series 770 balance bottom.
Close up view of the Series 770 balance bottom.

Home Owner from Minnesota
Jul 12, 2023 1:00 pm
Thank you! Can I get just one with the custom rivet, and another one of the standard 22F. I can't adjust the quote you sent to Qty: 1. Thanks!
Casey
Casey from SWISCO
Jul 12, 2023 1:35 pm
SWISCO
EXPERT

Unfortunately, the minimum order for these custom balances is two. Also, I would not recommend trying to use a stock balance on one side since they are designed to be attached to the top of the window jamb with a screw, while yours uses a rivet and S-clip.
