Screen door broke

Home Owner from Denver, CO

Aug 8, 2023 11:36 am

The roller on the bottom of my screen door broke (you can see the black plastic retainer in the left roller). Also, the handle no longer works as the aluminum hook broke off from it.

I can't identify the model, only the brand and was hoping you could help me get these parts ordered.

Thank you for your time!

3 user uploaded images

6 Replies

+ Add a Comment

Emily from SWISCO

Aug 9, 2023 12:11 pm

EXPERT

Hello there!

Thanks for reaching out to us. Our 83-126 sliding screen door latch appears to be similar. As for the rollers, I recommend you start by taking a look at the 84-104 and 84-091M. Carefully review the specifications for these parts and see how they compare with yours.

Home Owner from Denver, CO

Aug 11, 2023 6:20 pm

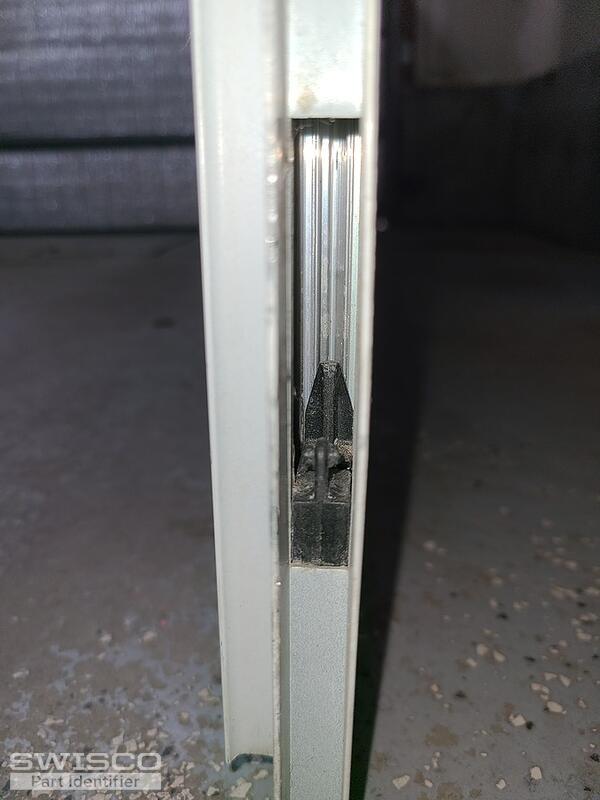

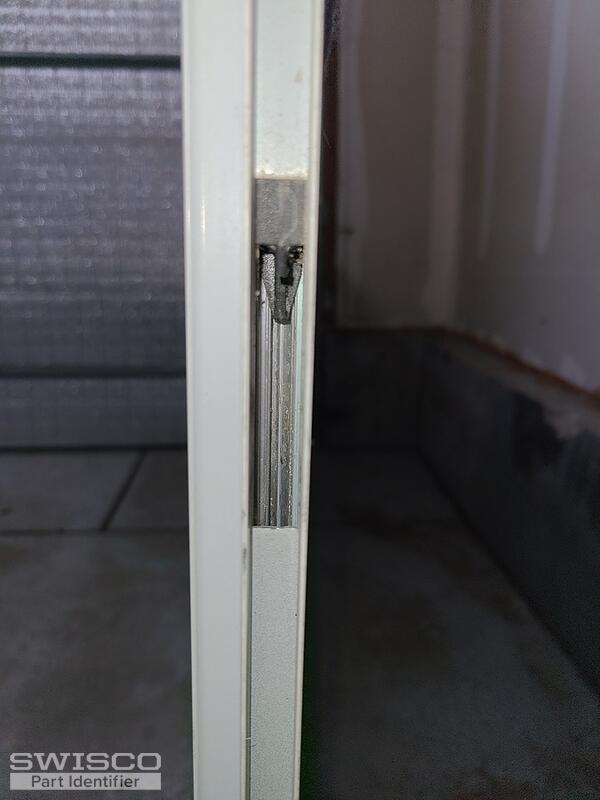

Thank you so much for the reply, I will look at those in just a bit; the main piece I was concerned about was the part the roller attaches to. Here is a picture of the broken one inside the door, the first one should be the broken one; the second is the good one (but I do need to replace the roller as well)

The broken one is missing the 2 little "nubs" as it broke off with the roller that was pictured earlier.

2 user uploaded images

Emily from SWISCO

Aug 14, 2023 8:42 am

EXPERT

I see what you mean. I believe the part you're showing in these new photos is a type of screen door corner, though it's hard to say with it installed. However, the rollers I recommended previously are compatible with the 95-020 corner. Take a look and see what you think.

Home Owner from Denver, CO

Sep 3, 2023 11:50 am

Sorry for the slow response, been a bit crazy around here. That part looks about right, I will disassemble the frame and verify. Thank you so much for your time, I really appreciate it!

Home Owner from Denver, CO

Sep 3, 2023 12:55 pm

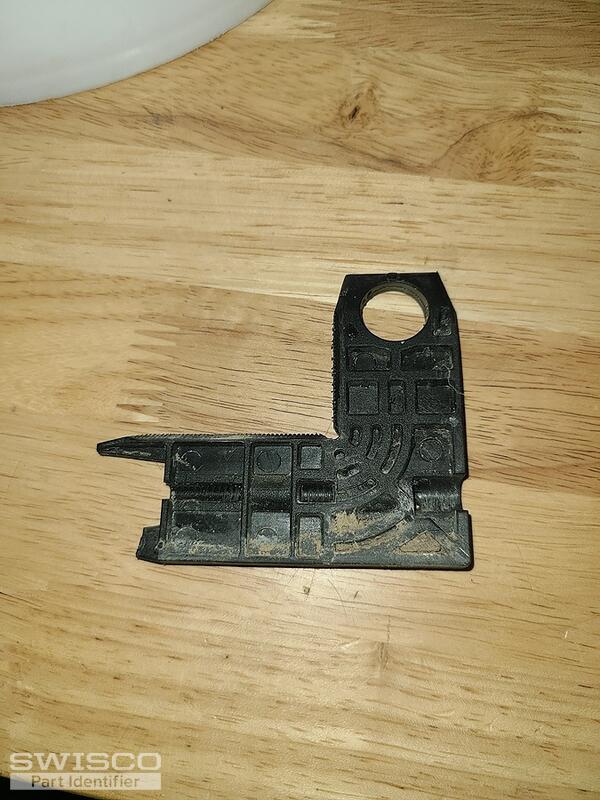

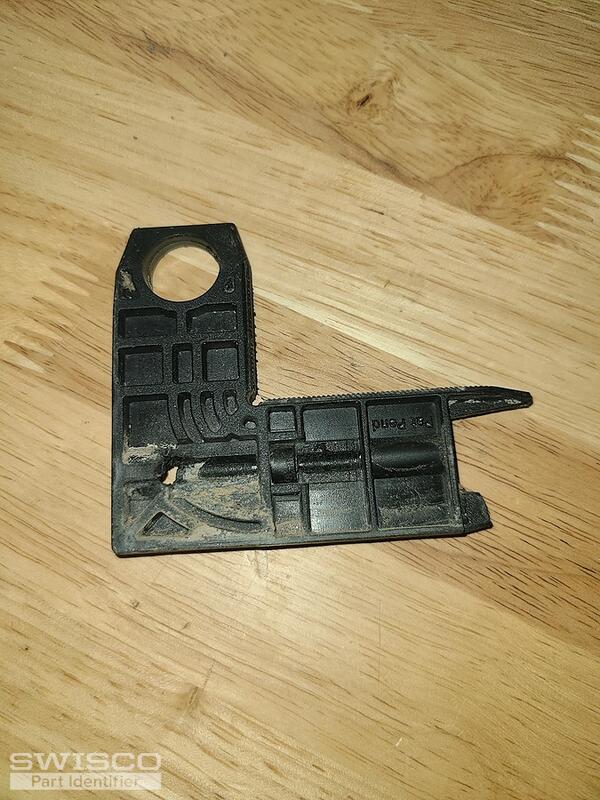

I just took the screen corner out, and they look very similar. Can you verify if that is the correct replacement piece? If so I'll order 2 of those and 4 rollers. Thank you so much for your assistance and I hope you are having a wonderful day!

2 user uploaded images

Emily from SWISCO

Sep 5, 2023 8:43 am

EXPERT

I do agree that your corner is very similar to ours but it's not a direct replacement so I can't say for sure if it will work for you. However, it is definitely our best option. I apologize we can't give a more definitive answer but you can find our return policy here just in case.
