Window ballast

Home Owner from Branford Florida
I would like to order five sets of the right track that's five different windows with the same track. That would be 10 track
4 user uploaded images
5 Replies
Home Owner from Branford Florida

I would like to purchase 10 tracks for five windows please. I also need a window lock for two of the windows. I added a complete photo of the track as well

Can you help thank you

2 user uploaded images
Emily
Emily from SWISCO
SWISCO
Expert

Hi there!

It appears you have either the Series 380 or Series 385 channel balances. You'll have to measure the bottom fitting as shown below to determine the best match. There should also be a stamp printed on the metal channel. That will tell you what option to select.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.

As for the lock, can you write out the distance between the two installation holes, measured from center to center?

Home Owner from Branford Florida

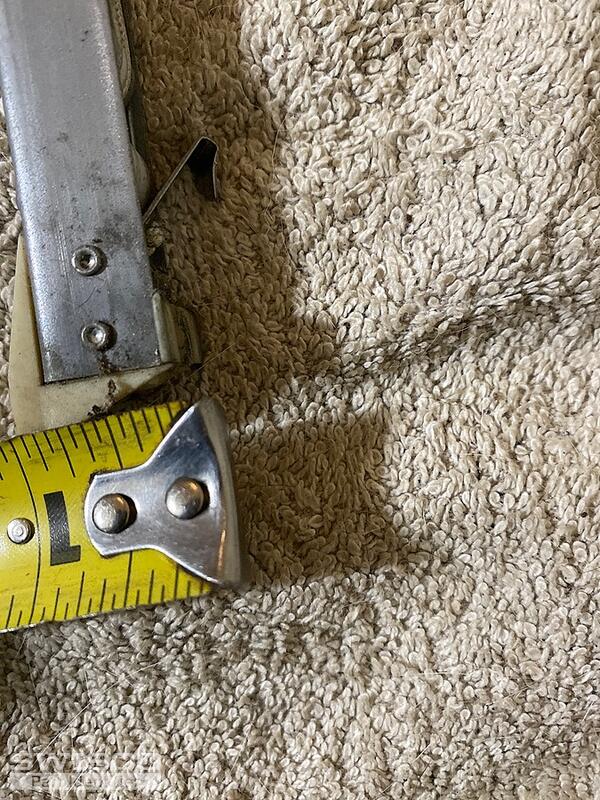

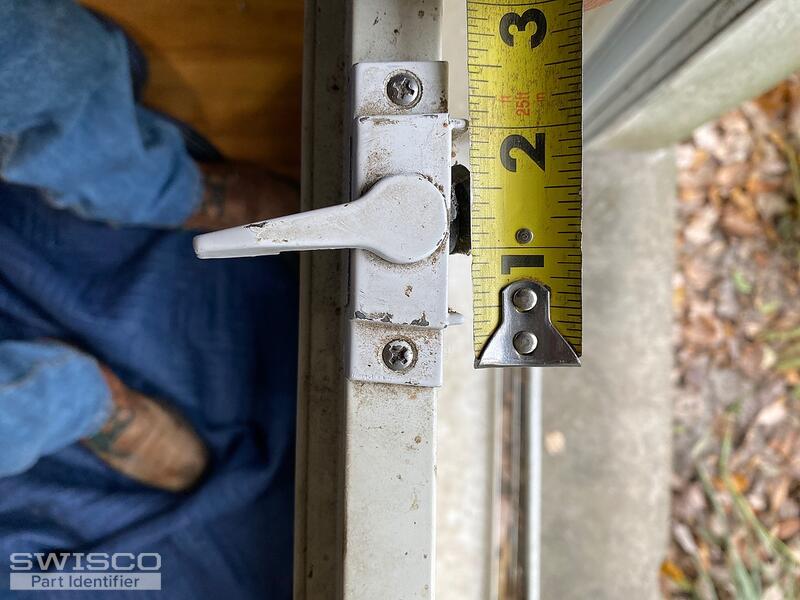

It looks like 1 inch so it looks like I have a s380 also from center to center of the screws it looks like 2 1/4 inch. I will also send pics and if this is correct how can I make an order and have them shipped. And thank you again for all your help.
2 user uploaded images
Emily
Emily from SWISCO
SWISCO
Expert

Thank you for getting back to me! Our 90-300 and 90-180 sash lock appear to be our closest options. However, both have a different locking "tongue" that engages with the keeper compared to yours.

One important detail is the depth of the piece that swivels to engage with the keeper. The 90-300 has a depth of 1/4", while the 90-180 measures 11/32". They also have a reach of about 5/16" from the base of the lock. Take a look and see if one of these options might work for you. You can find our return policy here just in case.

All orders can be placed on our website at your convenience!
